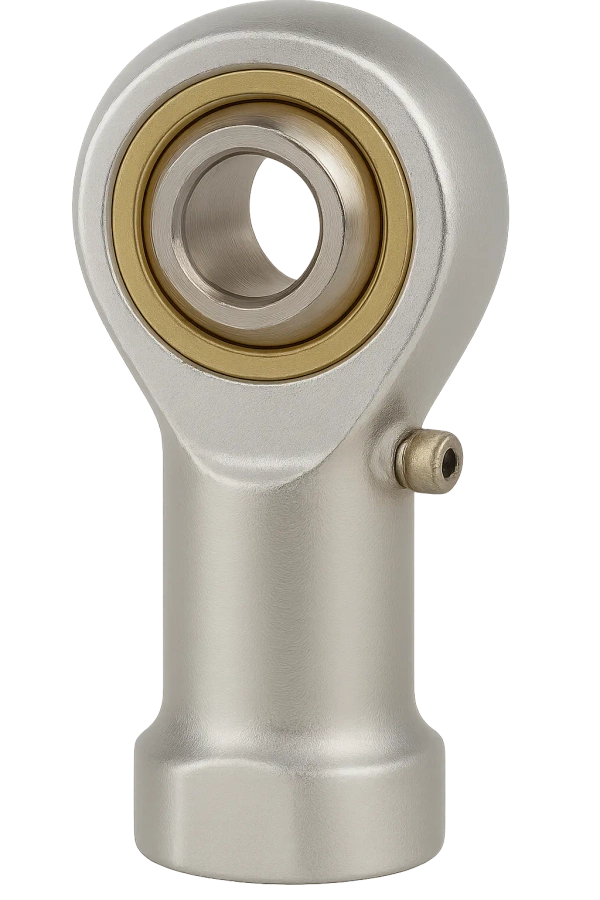

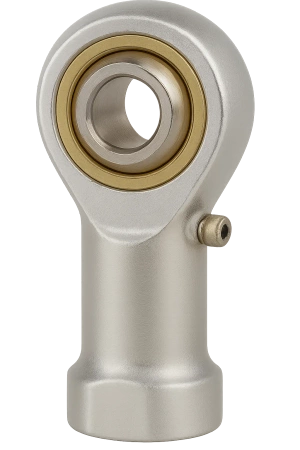

Rod end / linkage head - uniball GIRS 25 FLURO - M24x2 right-hand internal (female)
- GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.
FLURO GIRS Rod End
GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.
For use in corrosion-prone areas.
Friction pair: chrome steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing shell - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
42 / 1.65"
Deflection angle
30°
Maximum static load [kN / lbs]
118.0 / 26527.46
Maximum dynamic load [kN / lbs]
47.1 / 10588.50
Weight
750 g / 1.653 lbs
