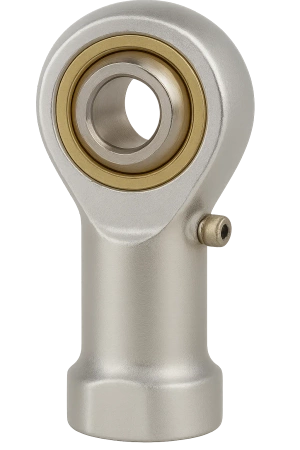

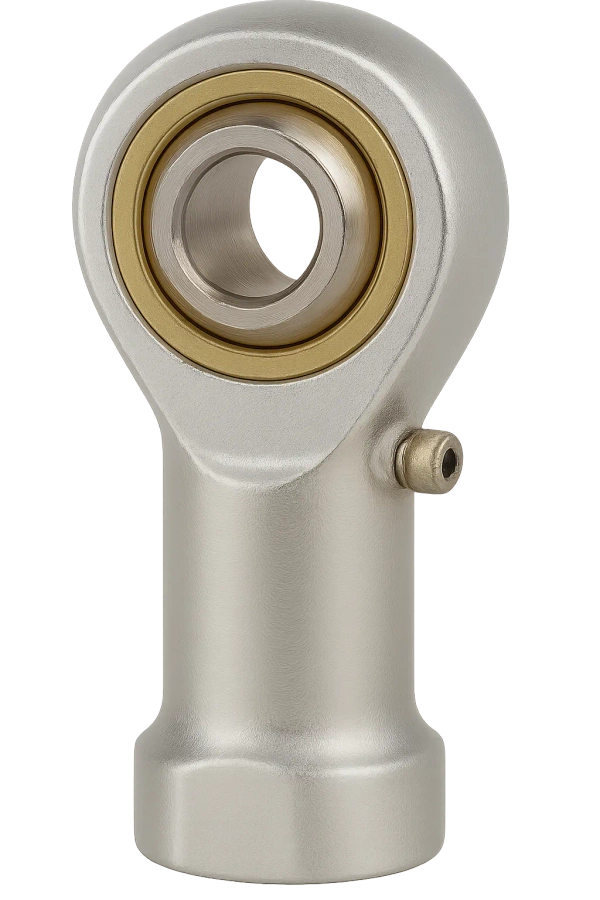

Rod end / linkage head - uniball GIRS 30 R FLURO - M30x2 right-hand internal (female)
- GIRS R Series - Rod end with a stainless steel housing and inner ring. For use in corrosion-prone areas.
Rod End FLURO GIRS
GIRS R Series - Rod end with internal thread, stainless steel housing, and inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: chrome-plated steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, machined.
Bearing bush - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
34°
Maximum static load [kN / lbs]
155.0 / 34845.38
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
1130 g / 2.491 lbs
