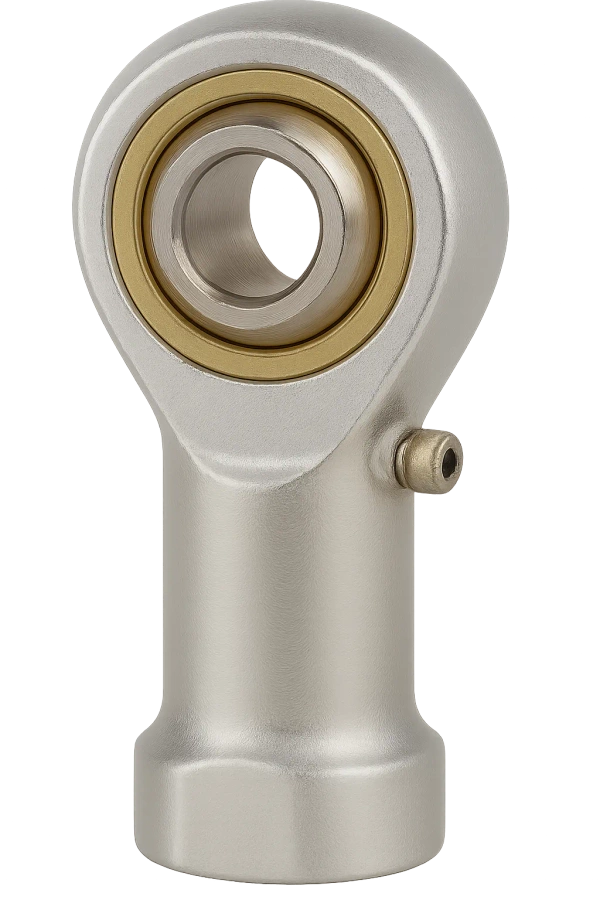

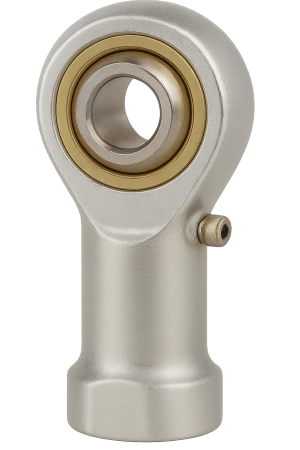

Rod end / linkage head - uniball GIRS 5 R FLURO - M5 right-hand internal (female)
- GIRS R Series - Rod end with a stainless steel housing and inner ring. For use in corrosion-prone areas.
Rod End FLURO GIRS
GIRS R Series - Rod end with internal thread, stainless steel housing, and inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: chrome-plated steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, machined.
Bearing bush - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
18 / 0,71"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
L- Lenght [mm /inch]
27 / 1.06"
GM - Thread length [mm /inch]
10 / 0.39"
Deflection angle
26°
Maximum static load [kN / lbs]
11.8 / 2652.75
Maximum dynamic load [kN / lbs]
3.3 / 741.87
Weight
18 g / 0.040 lbs
