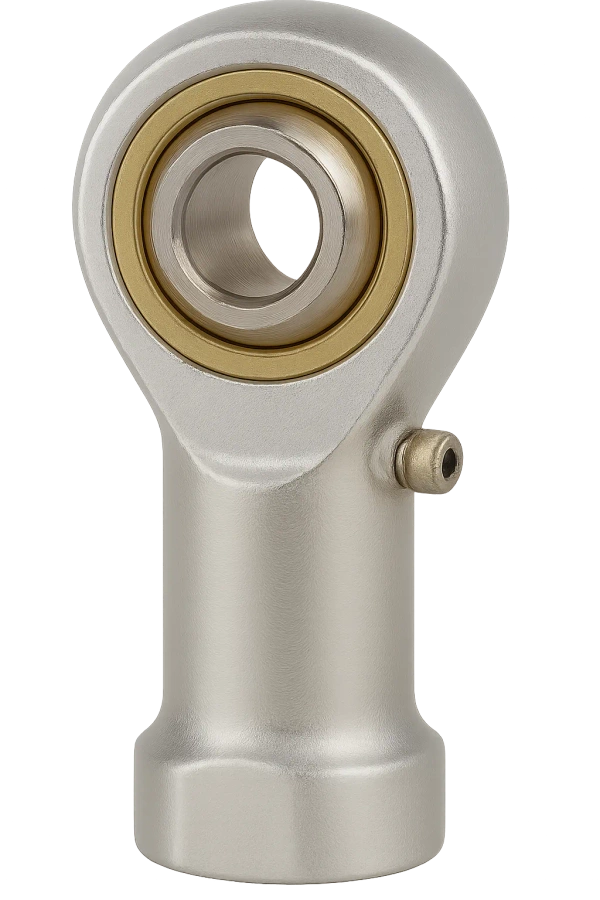

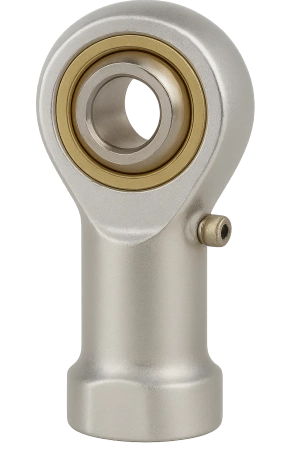

Rod end / linkage head - uniball GIRS 8 R FLURO - M8 right-hand internal (female)
- GIRS R Series - Rod end with a stainless steel housing and inner ring. For use in corrosion-prone areas.
Rod End FLURO GIRS
GIRS R Series - Rod end with internal thread, stainless steel housing, and inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: chrome-plated steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, machined.
Bearing bush - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
16 / 0.63"
Deflection angle
28°
Maximum static load [kN / lbs]
20.7 / 4653.55
Maximum dynamic load [kN / lbs]
7.1 / 1596.14
Weight
46 g / 0.101 lbs
