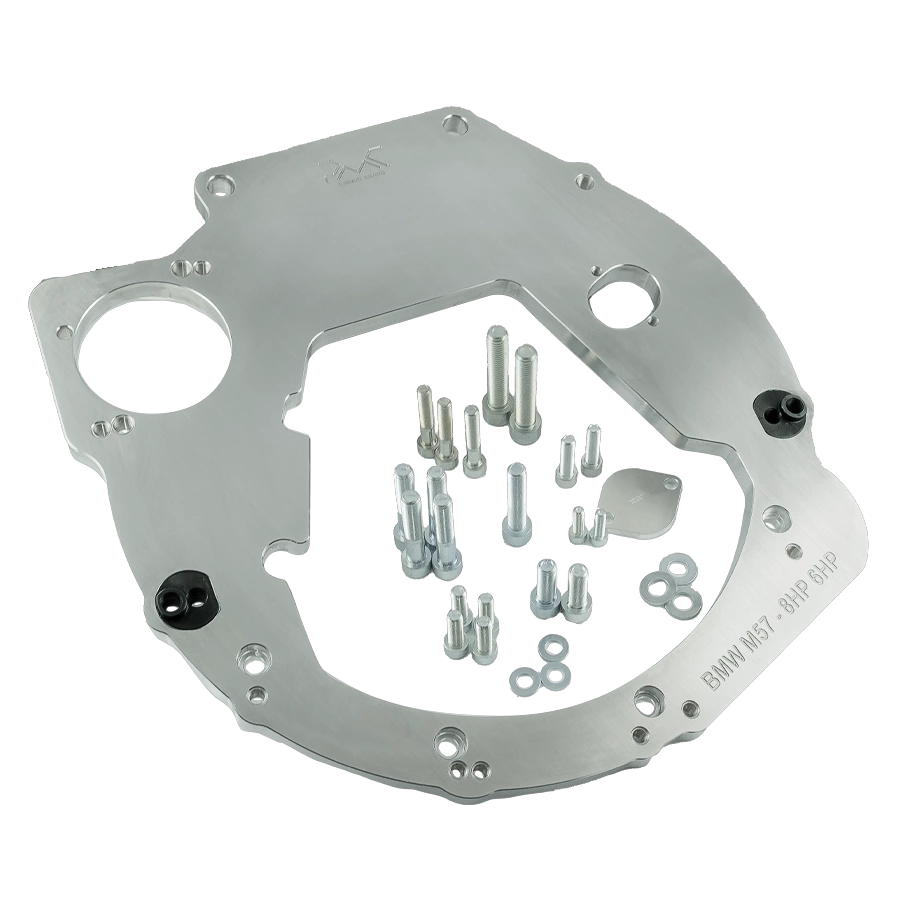

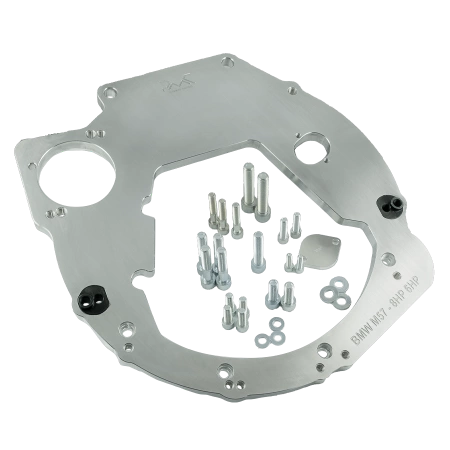

Adapter kit BMW M47 M47n - BMW ZF 8HP 8HP75 8HP70 8HP50
- Adapter enabling the connection (swap / conversion) of a BMW M47 M47n engine with a BMW-derived 8-speed ZF 8HP automatic transmission (ZF Friedrichshafen).
PMC Motorsport adapter plate / conversion kit BMW M47 M47N – BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 8HP76
Adapter plate enabling the connection (swap / conversion) of the BMW M47 / M47N 2.0 diesel engine (M47D20, M47D20TÜ, M47D20TÜ2) with a modern 8-speed automatic transmission ZF 8HP (ZF Friedrichshafen) from BMW – 8HP50, 8HP51, 8HP70, 8HP75, and 8HP76, in RWD and AWD xDrive versions.
Do you want to replace the old manual or automatic gearbox in your BMW with an M47 engine (e.g. E46 320d, E39 520d, E60 520d, E90 320d) with a modern ZF 8HP automatic? Or are you planning an M47 engine swap into another rear-wheel drive BMW? Our adapter is a reliable solution. Gain 8 speeds, fast gear changes, and lower fuel consumption.
The aluminum gearbox adapter plate was designed to simplify the installation of the ZF 8HP transmission as much as possible. Connecting the engine to the torque converter uses original parts – no additional torque converter adapter plate is needed.
PMC Motorsport gearbox adapters are synonymous with precision and top quality. A design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal engine-gearbox concentricity, which is crucial for powertrain durability.
Our entire production and R&D department are located in Poland. Over 90% of components are manufactured in-house.
Help with selection and after-sales support – PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit and provide technical support in case of any doubts during installation. You can contact us via the contact form.
Purchase of individual components
Every element of the kit can be purchased separately.
Thousands of produced adapters and satisfied customers all over the world.
PMC Motorsport adapters are used in both daily drivers and professional motorsport projects.
From the beginning, we focus on the quality of the parts we manufacture. After each production stage, the component is inspected. Every part produced by us is engraved with a production serial number.
We confirm quality with the PN-EN ISO 9001:2015 certificate.
We ship our products to virtually all countries worldwide. For European Union countries (excluding islands) and the United Kingdom, shipping costs are calculated automatically. For countries outside the list, after placing an order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the total order cost.
NOTE: The provided shipping quote together with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers holding an active EU VAT number (B2B option outside Poland) and in the case of exports outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Matching engines: |
BMW M47 2.0 diesel BMW M47D20 BMW M47D20TÜ BMW M47D20TÜ2 |
| Matching automatic gearboxes: |
ZF 8HP50 / 8HP51 8-speed ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B37 (F series) ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B38 (F series) ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B47 (F series) ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B48 (F series) ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B58 (F series) ZF 8HP51 GA8HP51Z / GA8HP51X – BMW B48 (F series) ZF 8HP51 GA8HP51Z / GA8HP51X – BMW B58 (G series) ZF 8HP70 / 8HP75 / 8HP76 8-speed (RWD / AWD xDrive) ZF 8HP70 GA8HP70Z / GA8HP70X – BMW N57 (F series) ZF 8HP75 GA8HP75Z / GA8HP75X – BMW N57 (F series, AWD xDrive) ZF 8HP75 GA8HP75Z / GA8HP75X – BMW B57 (G series) ZF 8HP76 GA8HP76Z / GA8HP76X – BMW B57 (G series) ZF 8HP76 GA8HP76Z / GA8HP76X – BMW B57 (G series, AWD xDrive) ZF 8HP76 GA8HP76Z / GA8HP76X – BMW S55 (G series) |
Additional information
PMC Motorsport parts are intended for motorsport and race track use.
Installation should be carried out by professionals with knowledge in engine swaps and car modifications – in workshops and using properly adapted tools.
The adapter installation manual contains only basic knowledge necessary to physically connect the engine with the gearbox outside the car body.
Depending on your specific car, additional modifications may be required, such as adjusting mounts, engine/gearbox mounts, firewall, transmission tunnel, driveshaft length, etc.
We manufacture our adapters using fully recyclable materials.
Installation instructions
To connect the BMW M47 / M47N engine with the ZF 8HP gearbox, use the PMC Motorsport gearbox adapter plate and the original (OE) starter ring gear (flexplate) from the automatic version, together with the torque converter from your ZF 8HP gearbox. No additional torque converter adapter plate is needed.
For installation, use the original BMW M47 / M47N starter motor (not included in the kit).
Frequently Asked Questions
Which engines does this adapter fit?
For BMW M47 2.0 diesel engines: M47D20, M47D20TÜ, and M47D20TÜ2.
Which gearboxes fit the adapter?
For 8-speed ZF 8HP automatic gearboxes from BMW: 8HP50 and 8HP51 (BMW B37, B38, B47, B48, B58) and 8HP70, 8HP75, and 8HP76 (BMW N57, B57, S55), in RWD and AWD xDrive versions. The complete list of versions can be found in the table above.
How to connect the ZF 8HP torque converter to the BMW M47 / M47N engine?
Use the PMC Motorsport gearbox adapter plate and the original (OE) starter ring gear (flexplate) from the automatic version, together with the torque converter from your ZF 8HP gearbox. An additional torque converter adapter plate is not needed.
Which starter motor should be used?
BMW M47 / M47N OE starter motor. The starter motor is not included in the kit.
Does the price include customs duty for shipments outside the European Union?
No. The product price and shipping estimate do not include customs duties or additional fees that may apply in the recipient's country.
Can I buy with 0% VAT?
Yes, if you are a B2B customer outside Poland with an active EU VAT number (verification in the VIES system) or ordering with shipping outside the EU.
Are the included instructions sufficient for installation?
The instructions describe connecting the engine to the gearbox outside the car body. Depending on the vehicle, additional modifications may be required: mounts, bushings, firewall, gearbox tunnel, driveshaft length. We recommend installation by professionals.
