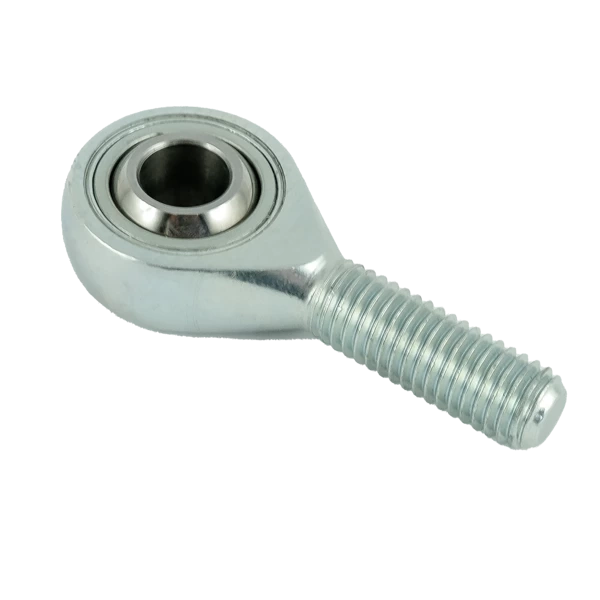

Rod end / rod head - uniball GALS 8 FLURO - M8 left external (male)
Rod end / rod head - uniball GALS 8 FLURO - M8 left external (male)
Rod end / rod head - uniball GALS 8 FLURO - M8 left external (male)

Rod end / rod head - uniball GALS 8 FLURO - M8 left external (male)

+ Add to compareAdd to shopping list
  • Rod end / rod head - uniball GALS 8 FLURO - M8 left external (male)
12,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is in constant sale
Shipment
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

GALS 8 FLURO rod end - M8





GAS Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated through a concave spherical grease nipple.

Particularly suitable for higher rotational speeds. Dimensional series K - for demanding applications.

Friction pair - steel/bronze





Housing:

up to size 12: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L13], turned

from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20,  US M1023], forged

size 50: heat-treatable steel: [DE C45, FR 1C45, IT C45, SE 1650, GB 080M46, US Aisi 1045], forged



Bearing bush: special bronze CuSn8

Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished



1) without additional lubrication

Brand
FLURO
Symbol
GALS 8
Type
Fluro GAS - Series
Thread
M8
Type of thread
Male left
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
L- Lenght [mm /inch]
42 / 1.65"
GM - Thread length [mm /inch]
25 / 0.98"
Kąt wychylenia
28°
Maximum static load [kN / lbs]
11.0 / 2472.90
Maximum dynamic load [kN / lbs]
7.1 / 1596.14
B - średnica otworu [mm /inch]
8 / 0.31
Weight
33 g / 0,073 lbs
