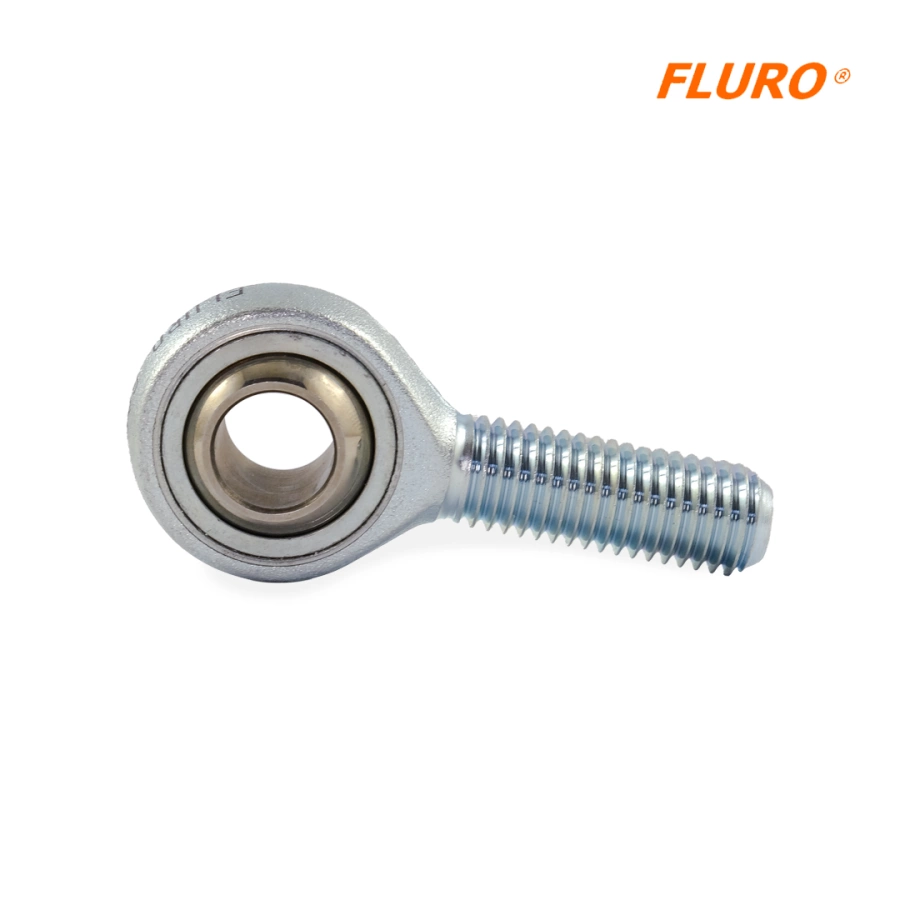

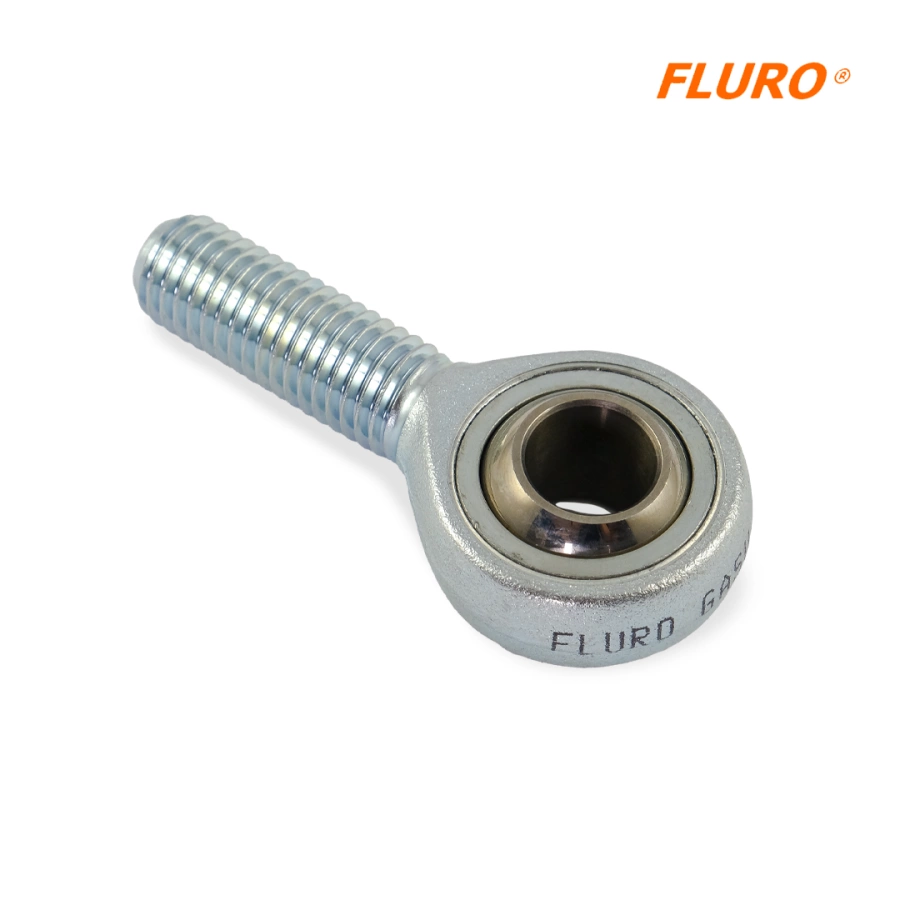

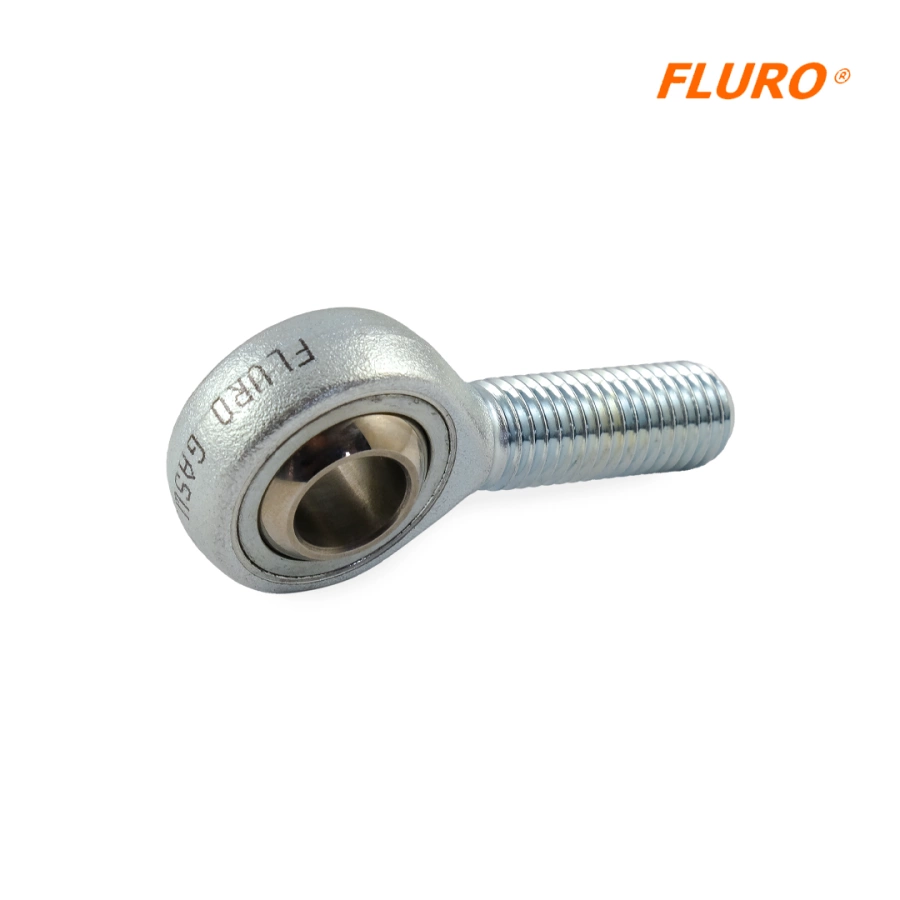

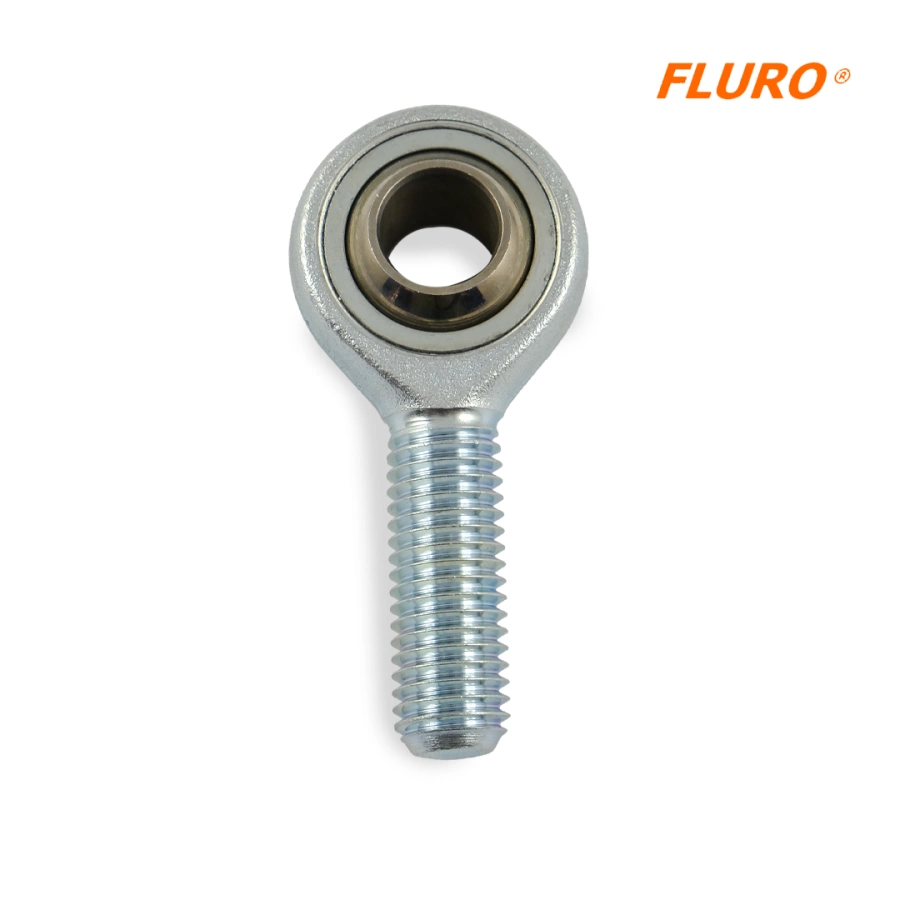

Rod end / tie rod end - uniball GALSW 6 FLURO - M6 left-hand external (male)
- Rod end / tie rod end - uniball GALSW 6 FLURO - M6 left-hand external (male)
GALSW 6 FLURO Rod End - M6
GASW Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with PTFE insert (maintenance-free).
For use under dynamic load. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing:
up to size 12: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Bearing liner: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
20 / 0.79"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.75 / 0.27"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
21 / 0.83"
Deflection angle
26°
Maximum static load [kN / lbs]
6.0 / 1348.85
Maximum dynamic load [kN / lbs]
9.3 / 2090.72
Weight
20 g / 0.044 lbs
