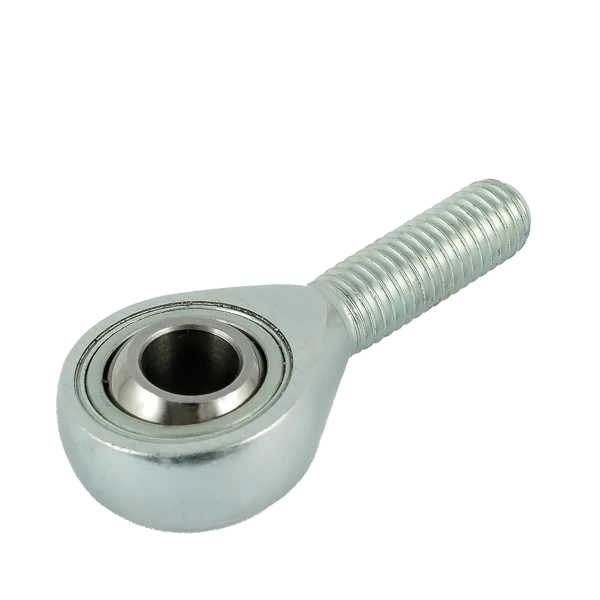

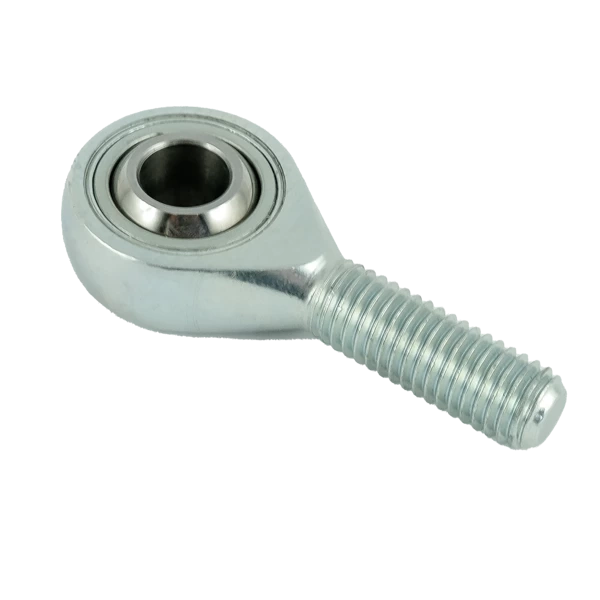

Rod end / linkage head – uniball GAO 5 FLURO – M5 right-hand external (male)
- GAO Series – Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, without bearing bush. Dimensional series K – steel/steel.
Rod End GAO FLURO
GAO Series – Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, without bearing bush.
Dimensional series K – steel/steel.
Housing:
up to size 12: free-machining steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
18 / 0,71"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
L- Lenght [mm /inch]
33 / 1.30"
GM - Thread length [mm /inch]
19 / 0.75"
Deflection angle
26°
Maximum static load [kN / lbs]
4.3 / 966.68
Maximum dynamic load [kN / lbs]
2.2 / 494.58
Weight
13 g / 0.029 lbs
