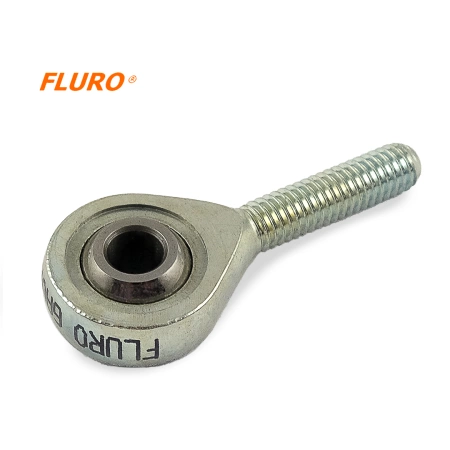

Rod end / linkage head – uniball GAOW 4 FLURO – M4 right-hand external (male)
- GAOW Series – Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, maintenance-free. Suitable for low axial loads and limited rotational movement.
GAOW FLURO Rod End
GAOW Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, maintenance-free. Suitable for low axial loads and partial rotation.
Dimensional series K - maintenance-free.
Sliding pair - steel/PTFE.
Housing:
up to size 12: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged, PTFE layer on spherical surface
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
14 / 0.55"
W - width of the inner ring [mm /inch]
7 / 0.28"
T - width of the outer ring [mm /inch]
5.25 / 0.21"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
19 / 0.75"
Deflection angle
28°
Maximum static load [kN / lbs]
2.6 / 584.50
Maximum dynamic load [kN / lbs]
0.8 / 179.85
Weight
9 g / 0.0198 lbs
