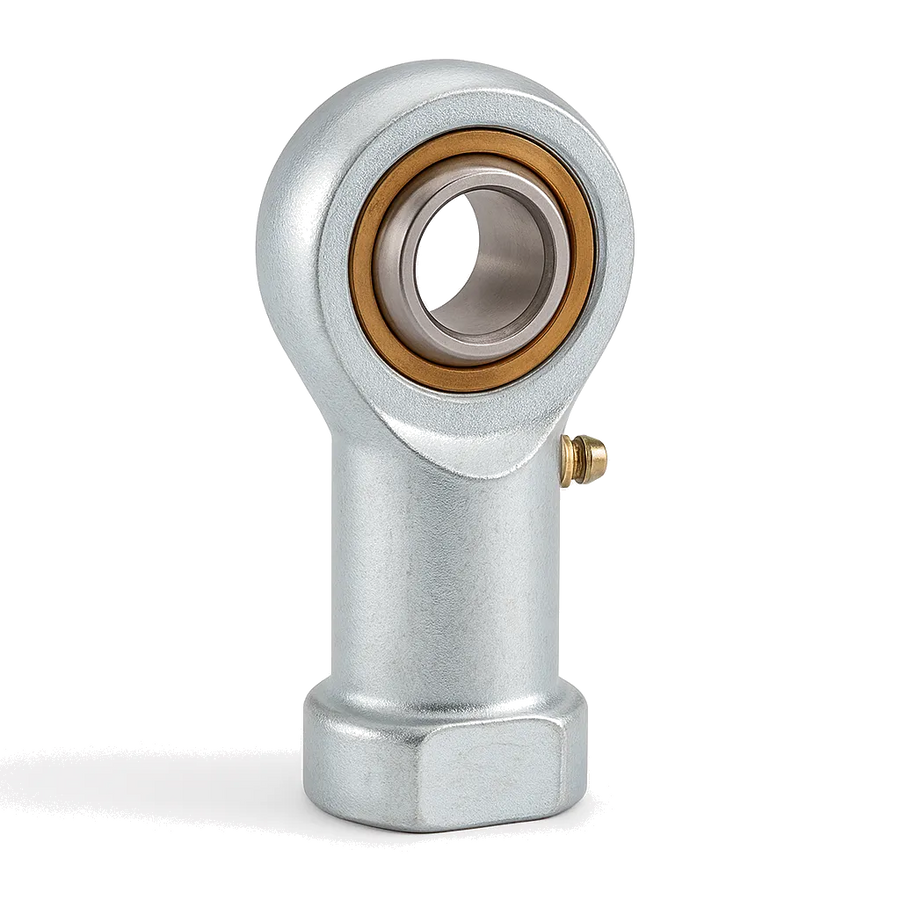

Rod end / linkage head - uniball GIXS 18 FLURO - M18x1.5 right-hand internal (female)
- GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via a concave spherical grease fitting. Suitable for use under high tensile and compressive loads
FLURO GIXS Rod End
GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use under high tensile / compressive loads.
Sliding pair: steel / bronze.
Housing: heat-treatable steel 1.7225 [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA AISI 4140], forged
Bearing liner – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
23 / 0.91"
T - width of the outer ring [mm /inch]
16.5 / 0.65"
L- Lenght [mm /inch]
71 / 2.80"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
30°
Maximum static load [kN / lbs]
81.5 / 18321.93
Maximum dynamic load [kN / lbs]
26.0 / 5845.03
Weight
320 g / 0.705 lbs
