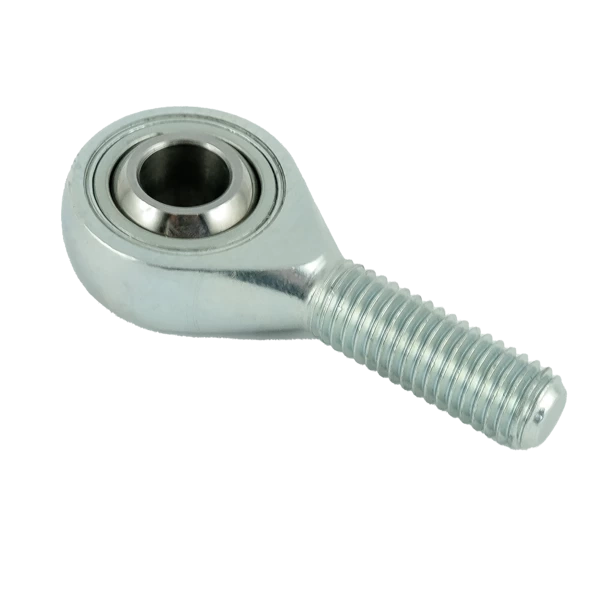

Rod end / linkage head - uniball GALXS 12 FLURO - M12 left-hand external (male)
- Rod end / linkage head - uniball GALXS 12 FLURO - M12 left-hand external (male)
GALXS 12 FLURO rod end - M12
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
54 / 2.13"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
26°
Maximum static load [kN / lbs]
42.0 / 9441.98
Maximum dynamic load [kN / lbs]
13.5 / 3034.92
Weight
87g
