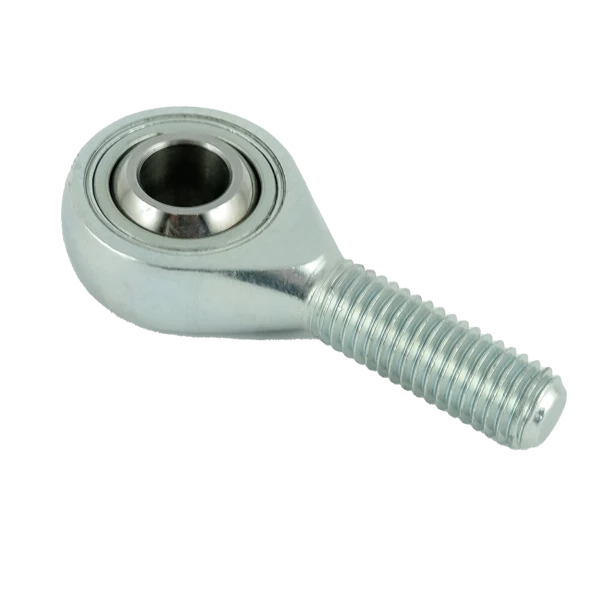

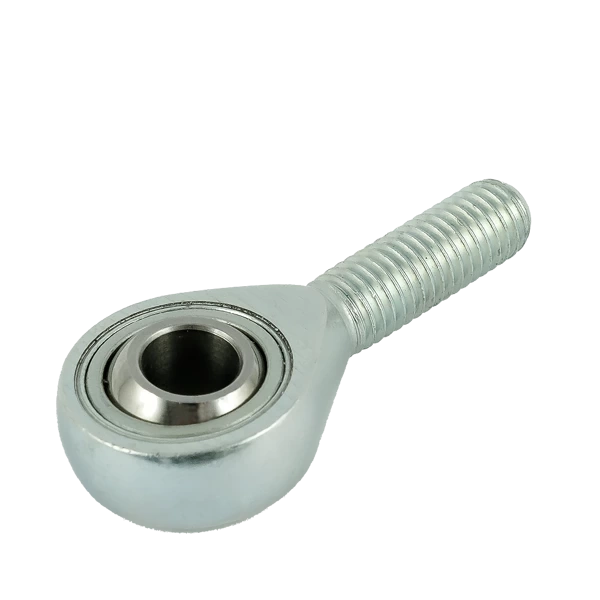

Rod end / linkage head – uniball GALXS 6 FLURO – M6 left-hand external (male)
- Rod end / linkage head – uniball GALXS 6 FLURO – M6 left-hand external (male)
GALXS 6 FLURO rod end - M6
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
20 / 0.79"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.75 / 0.27"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
21 / 0.83"
Deflection angle
23°
Maximum static load [kN / lbs]
9.8 / 2213.13
Maximum dynamic load [kN / lbs]
4.3 / 966.68
Weight
20 g / 0.044 lbs
