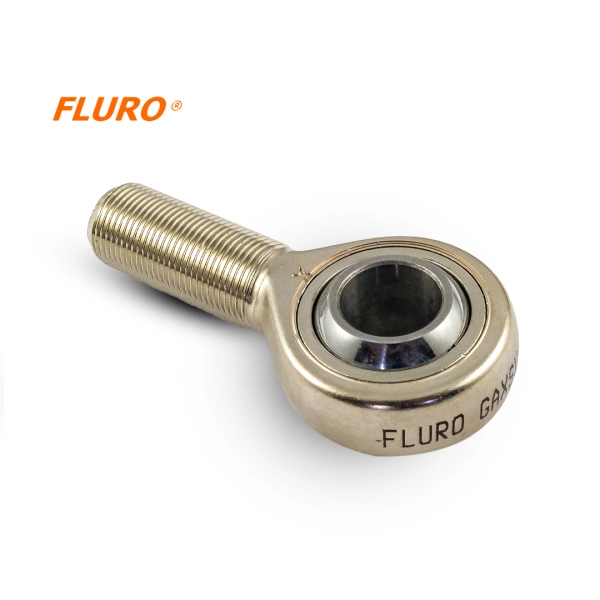

Rod end / linkage head – uniball GALXSW 10 MS FLURO – M10 left-hand external (male)
- Rod end / linkage head – uniball GALXSW 10 MS FLURO – M10 left-hand external (male)
Rod End GALXSW 10 MS FLURO - M10
Motorsport - MS Series GAXSW MS - Rod end with an external thread made of heat-treatable steel, galvanized, with a PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Friction pair - chrome steel/PTFE
Housing: heat-treatable steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], nickel-plated and polished
Bearing liner: stainless steel 1.4571 [DE X6CrNiMoTi17-12-2, FR Z6CNDT17-12, IT X6CrNiMoTi1712, SE 2350, GB 320S18, US Aisi 316Ti] with a bonded PTFE layer, maintenance-free
Inner ring: bearing steel [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened and coated with a hard chrome layer, reduced bearing clearance.
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
48 / 1.89"
GM - Thread length [mm /inch]
28 / 1.10"
Deflection angle
26°
Maximum static load [kN / lbs]
31.4 / 7059.00
Maximum dynamic load [kN / lbs]
23.4 / 5260.53
Weight
56g / 0.12346 lbs
