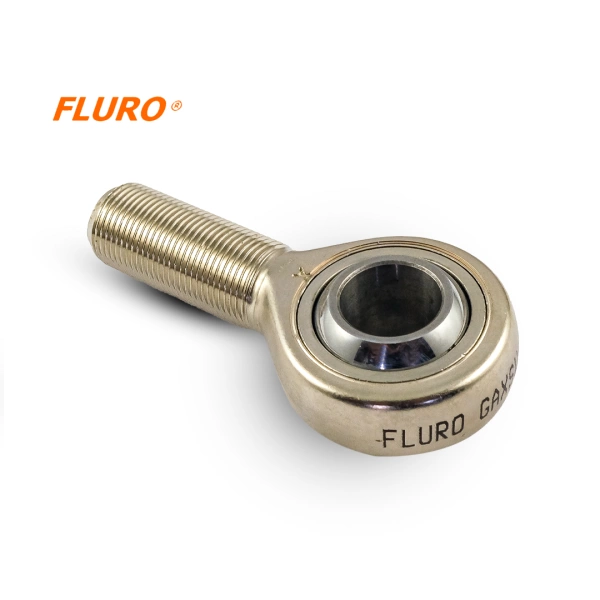

Rod end / linkage head – uniball GALXSW 30 FLURO – M30x2 left-hand external (male)
- Rod end / linkage head – uniball GALXSW 30 FLURO – M30x2 left-hand external (male)
GALXSW 30 FLURO Tie Rod End - M30x2
GAXSW Series - Tie rod end with external thread made of heat-treated steel, galvanized, with PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing: heat-treated steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], forged
Bearing liner: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
57 / 2.24"
Deflection angle
30°
Maximum static load [kN / lbs]
135.0 / 30349.24
Maximum dynamic load [kN / lbs]
122.0 / 27426.69
Weight
600 g / 1.323 lbs
