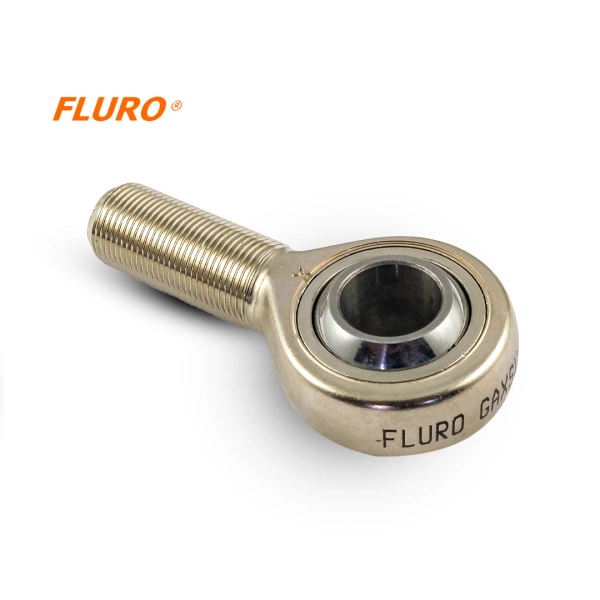

Tie rod end / rod end - uniball GALXSW 8 FLURO - M8 left-hand external (male)
- Tie rod end / rod end - uniball GALXSW 8 FLURO - M8 left-hand external (male)
GALXSW 8 FLURO Tie Rod End - M8
GAXSW Series - Tie rod end with external thread made of heat-treated steel, galvanized, with PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing: heat-treated steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], forged
Bearing liner: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished

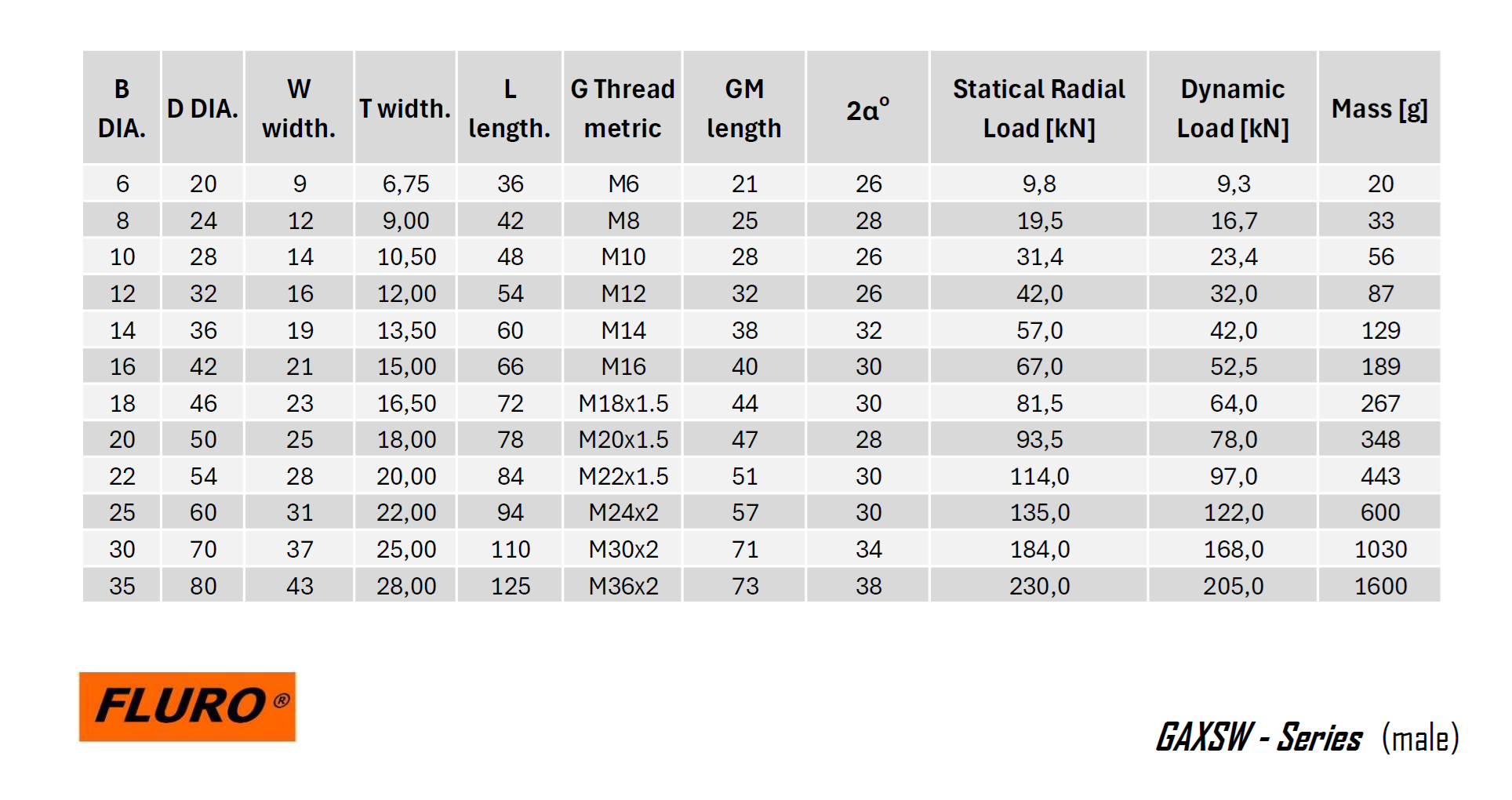

Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
L- Lenght [mm /inch]
42 / 1.65"
GM - Thread length [mm /inch]
25 / 0.98"
Deflection angle
28°
Maximum static load [kN / lbs]
19.5 / 4383.77
Maximum dynamic load [kN / lbs]
16.7 / 3754.30
Weight
33 g / 0,073 lbs
