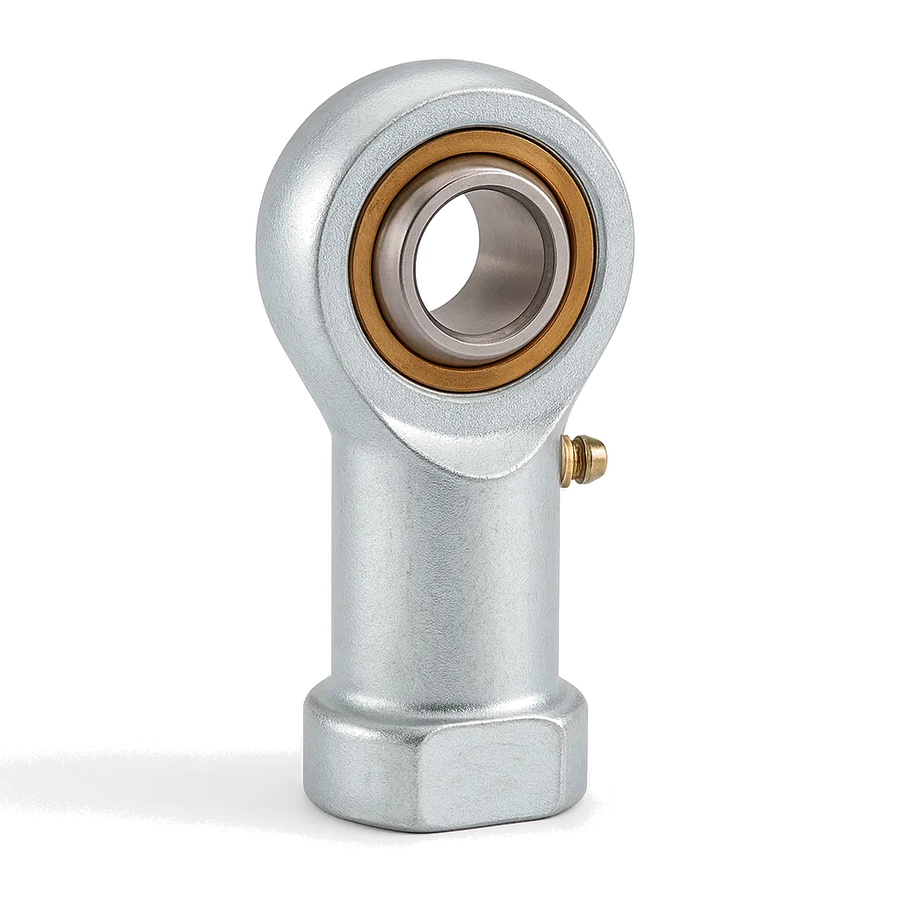

Rod end / linkage head - uniball GIS 16x1.5 FLURO - M16x1.5 right-hand internal (female)
- GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting. Designed for use at higher rotational speeds.
FLURO GIS Rod End
GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use at higher rotational speeds.
Sliding pair: steel / bronze.
Housing:
up to size 12 – free-cutting steel [DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L 13], turned
from size 14 – heat-treatable steel [DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023], forged
size 50 – heat-treatable steel C45, turned
Bearing bushing – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
64 / 2.52"
GM - Thread length [mm /inch]
28 / 1.10"
Deflection angle
30°
Maximum static load [kN / lbs]
32.0 / 7193.89
Maximum dynamic load [kN / lbs]
21.5 / 4833.39
Weight
230 g / 0.507 lbs
