Tie rod end / rod end – uniball GILS 30 FLURO – M30x2 left-hand internal (female)
- GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting. Designed for use at higher rotational speeds.

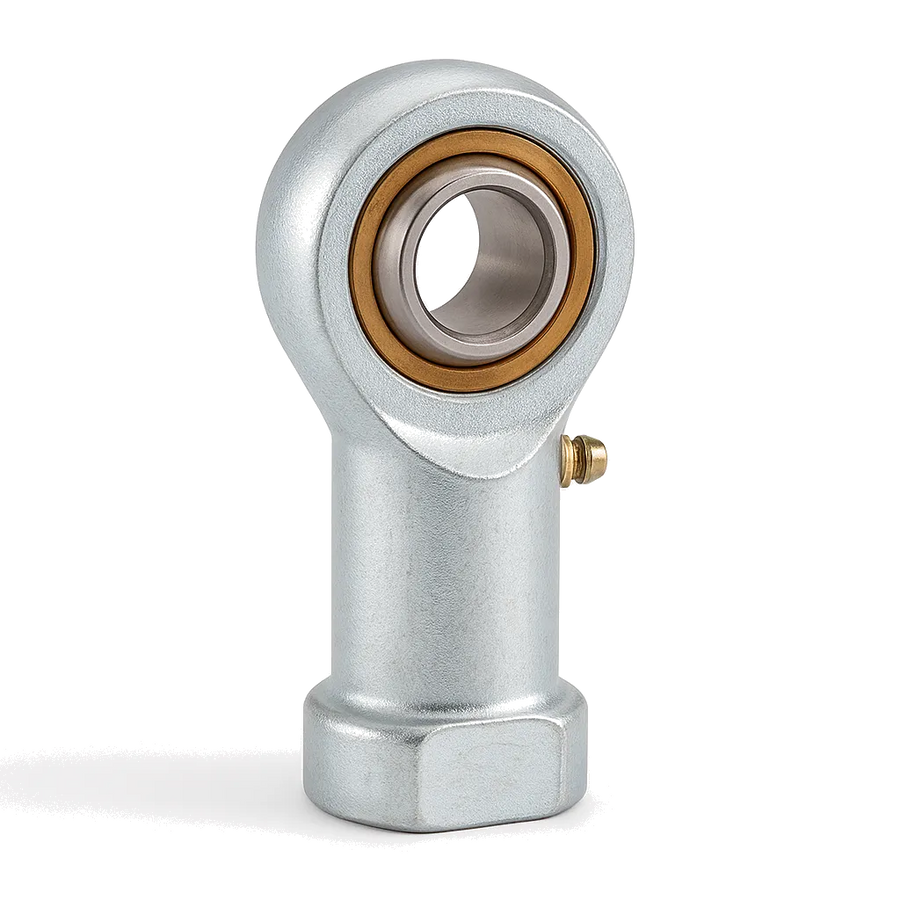

FLURO GILS Rod End
GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use at higher rotational speeds.
Sliding pair: steel / bronze.
Housing:
up to size 12 – free-cutting steel [DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L 13], turned
from size 14 – heat-treatable steel [DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023], forged
size 50 – heat-treatable steel C45, turned
Bearing bushing – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
34°
Maximum static load [kN / lbs]
82.0 / 18434.33
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
1130 g / 2.491 lbs
