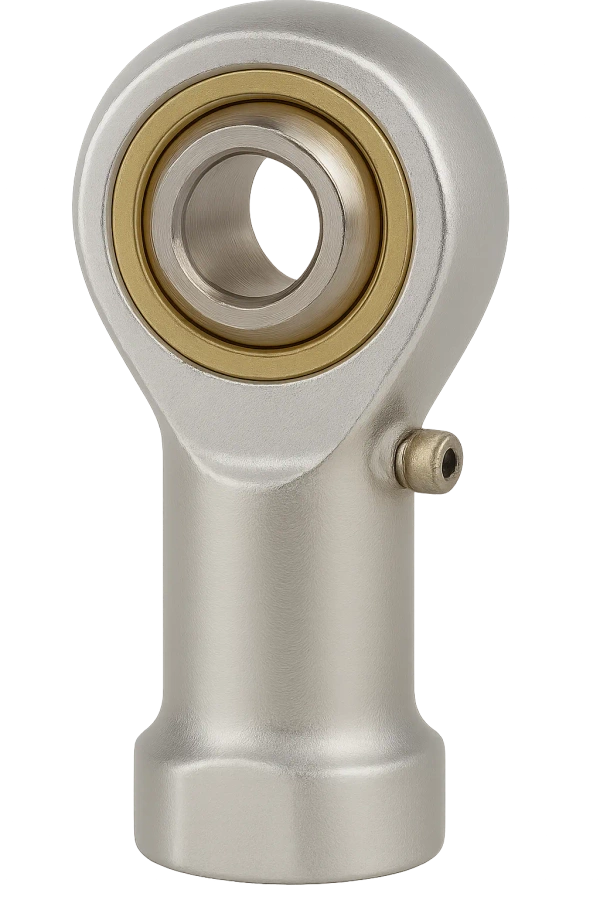

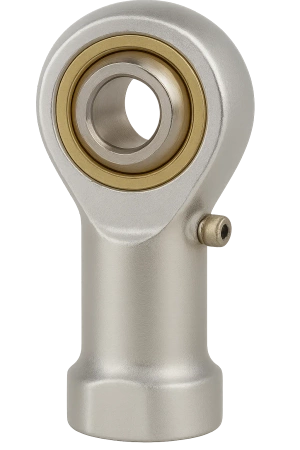

Tie rod end / rod end - uniball GILRS 12 FLURO - M12 left-hand internal (female)
- GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.
FLURO GILRS Rod End
GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.
For use in corrosion-prone areas.
Friction pair: chrome steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing shell - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
13
L- Lenght [mm /inch]
50 / 1.97"
GM - Thread length [mm /inch]
22 / 0.87"
Deflection angle
26°
Maximum static load [kN / lbs]
34.5 / 7754.11
Maximum dynamic load [kN / lbs]
13.5 / 3034.92
Weight
115 g / 0.254 lbs
