Tie rod end / rod end - uniball GALXSW 10 FLURO - M10 left-hand external (male)
- Tie rod end / rod end - uniball GALXSW 10 FLURO - M10 left-hand external (male)

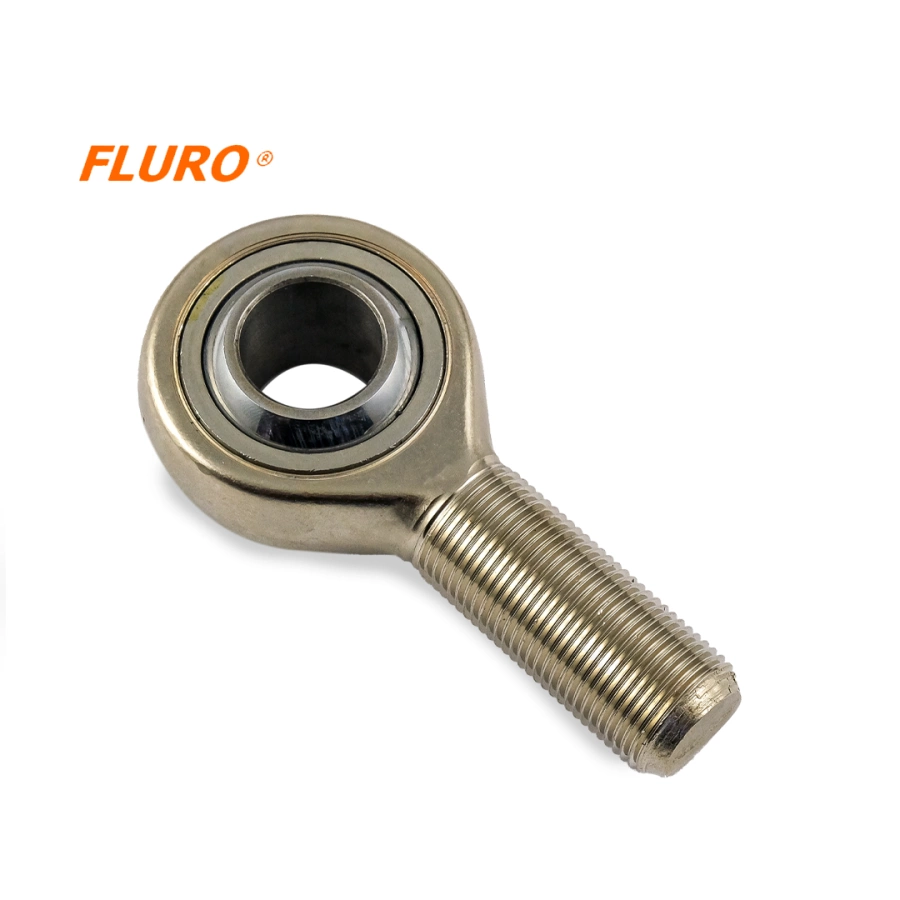

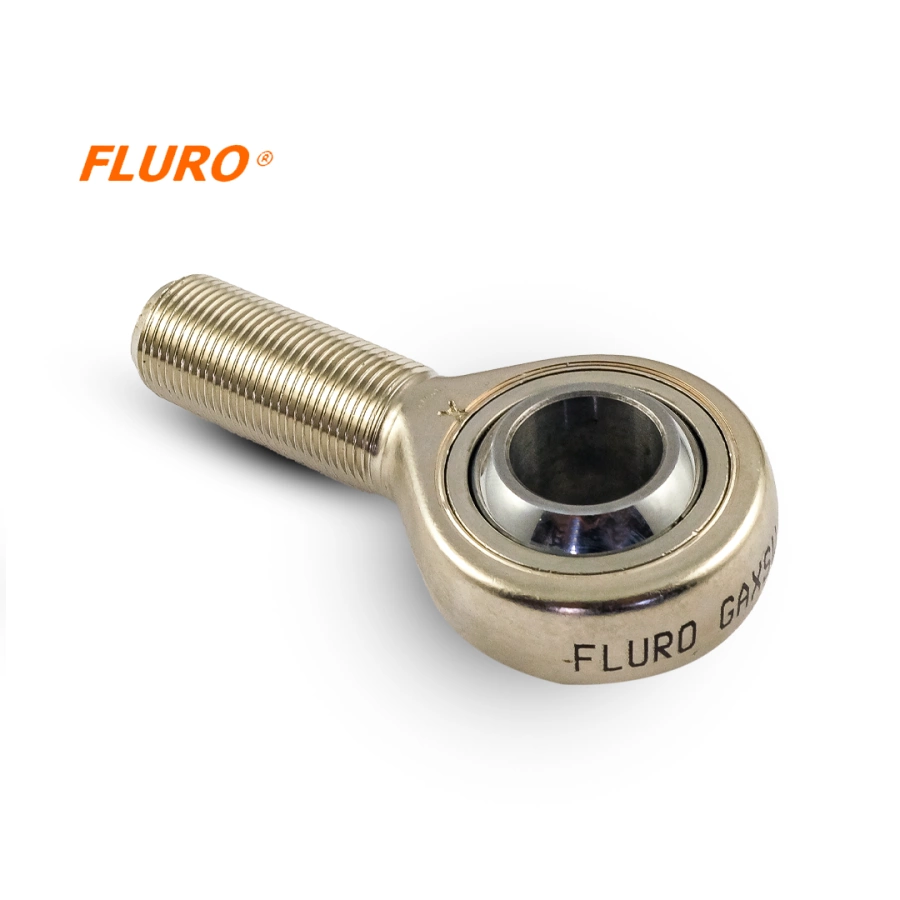

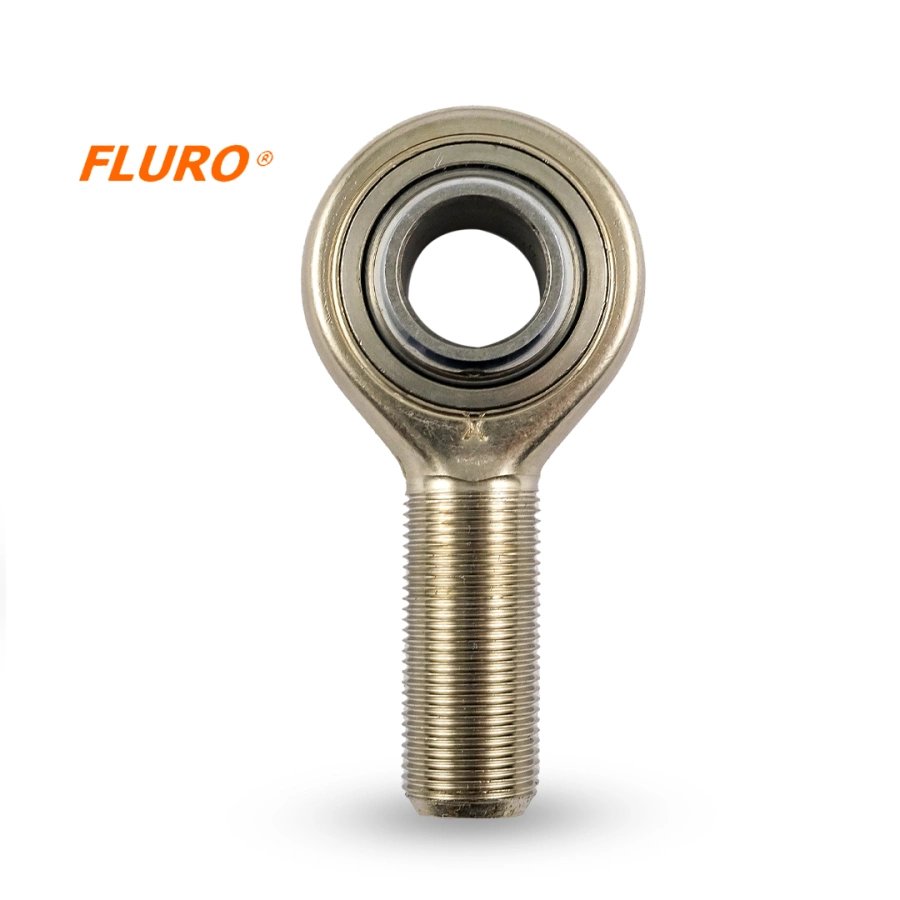

GALXSW 10 FLURO Tie Rod End - M10
GAXSW Series - Tie rod end with external thread made of heat-treated steel, galvanized, with PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing: heat-treated steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], forged
Bearing liner: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41
L- Lenght [mm /inch]
48 / 1.89"
GM - Thread length [mm /inch]
28 / 1.10"
Deflection angle
26°
Maximum static load [kN / lbs]
9.8 / 2213.13
Maximum dynamic load [kN / lbs]
9.3 / 2090.72
Weight
56g / 0.12346 lbs
