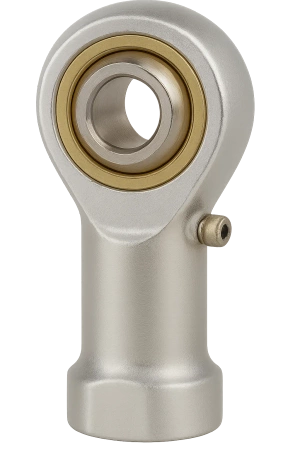

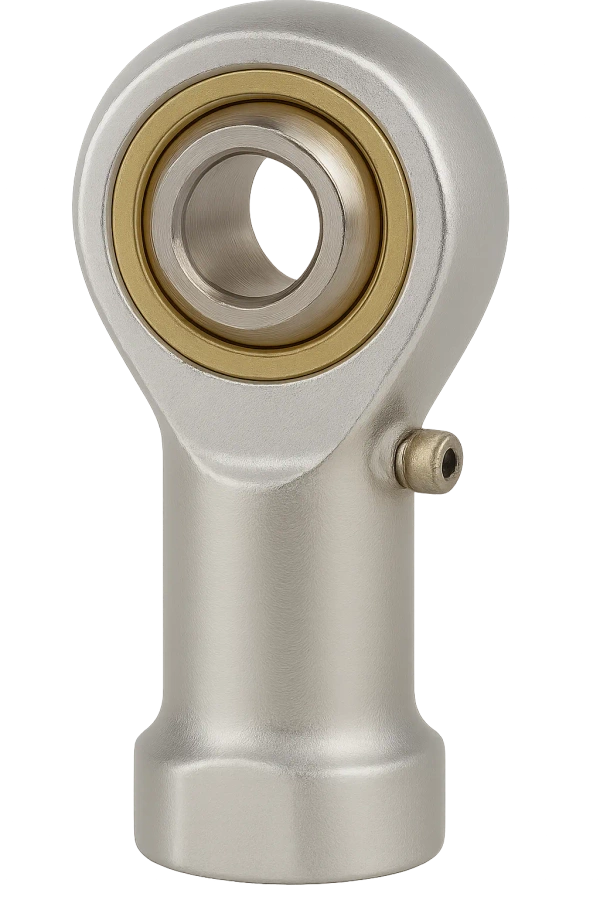

Tie rod end / rod end - uniball GILRS 30 FLURO - M30x2 left-hand internal (female)
- GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.
FLURO GILRS Rod End
GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.
For use in corrosion-prone areas.
Friction pair: chrome steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing shell - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
30°
Maximum static load [kN / lbs]
155.0 / 34845.38
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
1130 g / 2.491 lbs
