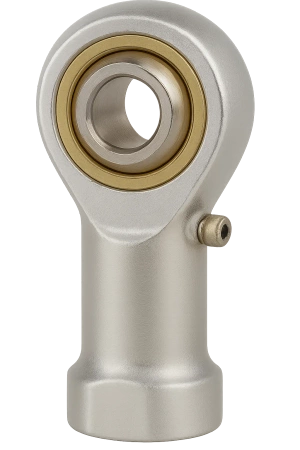

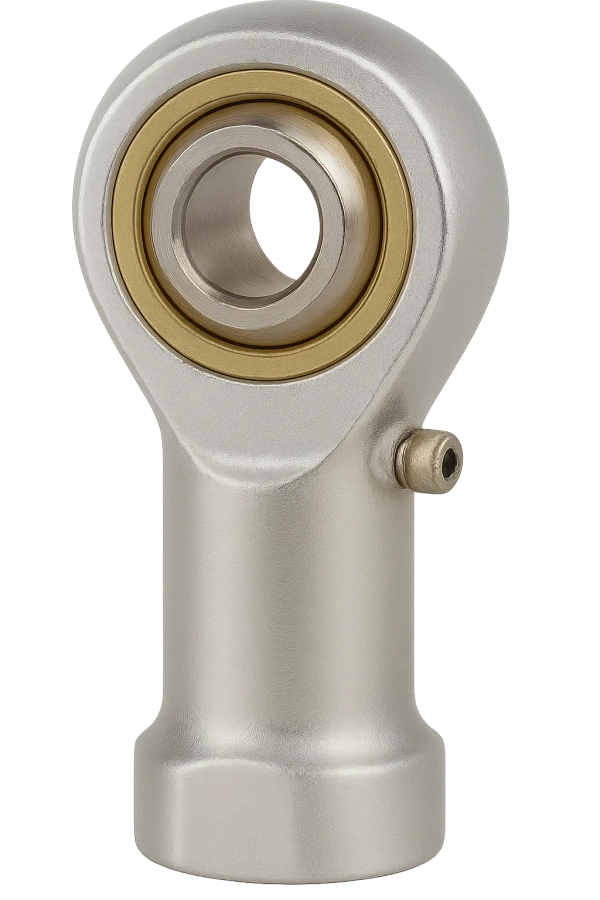

Tie rod end / rod end – uniball GILRS 8 R FLURO – M8 left-hand internal (female)
- GIRS R Series - Rod end with internal thread, stainless steel housing and stainless steel inner ring, lubricated through a concave spherical grease fitting. For use in corrosion-prone areas.
FLURO GILRS R Rod End
GIRS R Series – Rod end with internal thread, stainless steel housing and stainless steel inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: NIRO / bronze.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing liner – special bronze CuSn8.
Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9 / 0.35"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
16 / 0.63"
Deflection angle
28°
Maximum static load [kN / lbs]
20.7 / 4653.55
Maximum dynamic load [kN / lbs]
7.1 / 1596.14
Weight
46 g / 0.101 lbs
