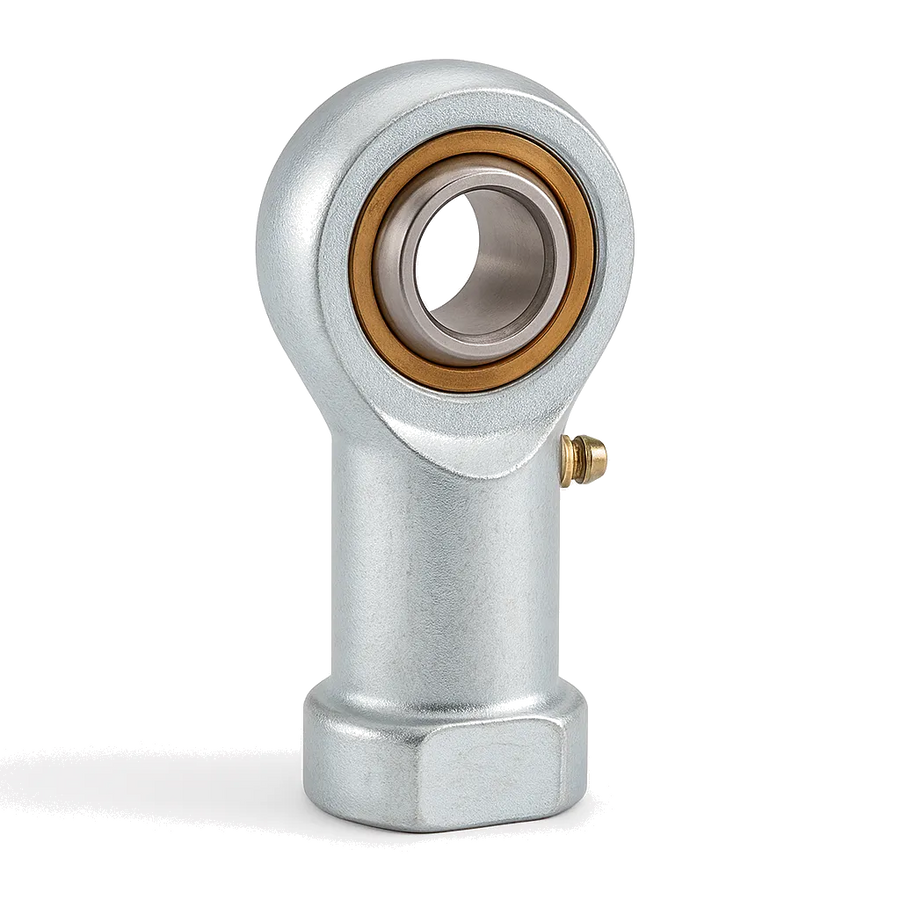

Rod-end head / rod end – uniball GILXS 10 FLURO – M10 left-hand internal (female)
- GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via a concave spherical grease fitting. Suitable for use under high tensile and compressive loads
FLURO GIXS Rod End
GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use under high tensile / compressive loads.
Sliding pair: steel / bronze.
Housing: heat-treatable steel 1.7225 [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA AISI 4140], forged
Bearing liner – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
43 / 1.69"
GM - Thread length [mm /inch]
20 / 0.79"
Deflection angle
26°
Maximum static load [kN / lbs]
34.8 / 7823.35
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
76 g / 0.168 lbs
