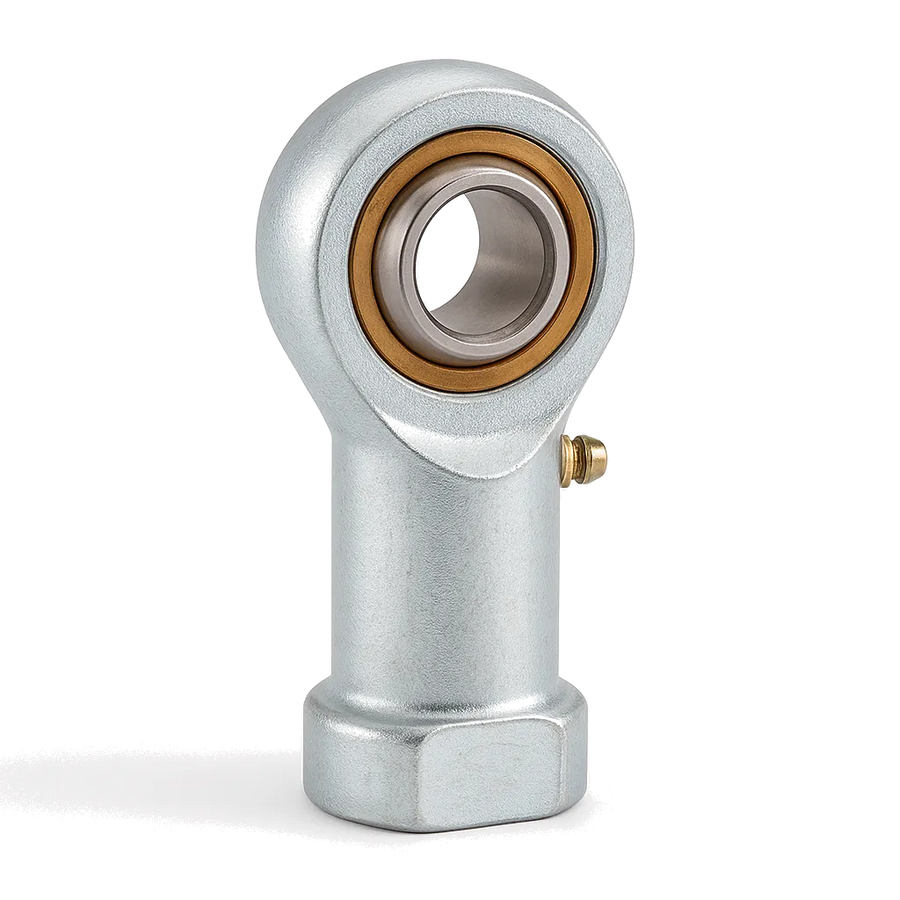

Rod-end head / rod end – uniball GILXS 20 FLURO – M20×1.5 left-hand internal (female)
- GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via a concave spherical grease fitting. Suitable for use under high tensile and compressive loads
FLURO GIXS Rod End
GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.
For use under high tensile / compressive loads.
Sliding pair: steel / bronze.
Housing: heat-treatable steel 1.7225 [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA AISI 4140], forged
Bearing liner – special bronze CuSn8
Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
77 / 3.03"
GM - Thread length [mm /inch]
33 / 1.30"
Deflection angle
28°
Maximum static load [kN / lbs]
93.5 / 21019.64
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
415 g / 0.915 lbs
