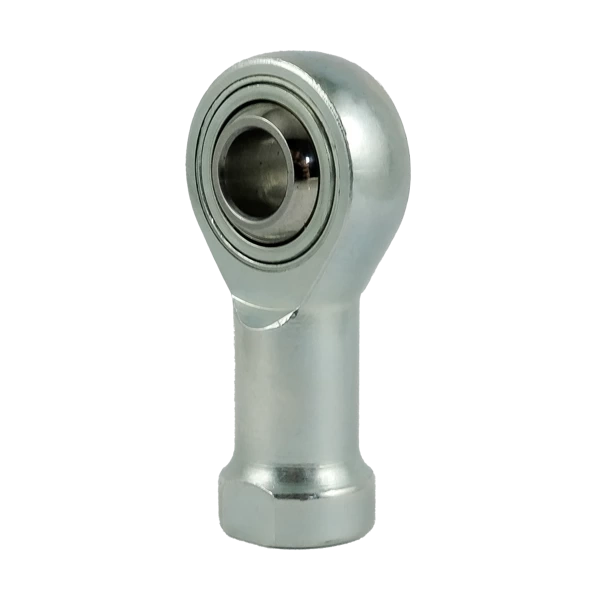

Rod-end head / rod end – uniball GILXSW 8 FLURO – M8 left-hand internal (female)
- GIXSW Series – Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). Suitable for use under high tensile/compressive loads.
FLURO GIXSW Rod End
GIXSW Series - Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).
Suitable for high dynamic tensile/compressive loads. Dimensional series K - maintenance-free design.
Friction pair: steel/PTFE
Housing: heat-treated steel [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA Aisi 4140], forged
Bearing bushing - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
16 / 0.63"
Deflection angle
28°
Maximum static load [kN / lbs]
25.5 / 5732.63
Maximum dynamic load [kN / lbs]
16.7 / 3754.30
Weight
46 g / 0.101 lbs
