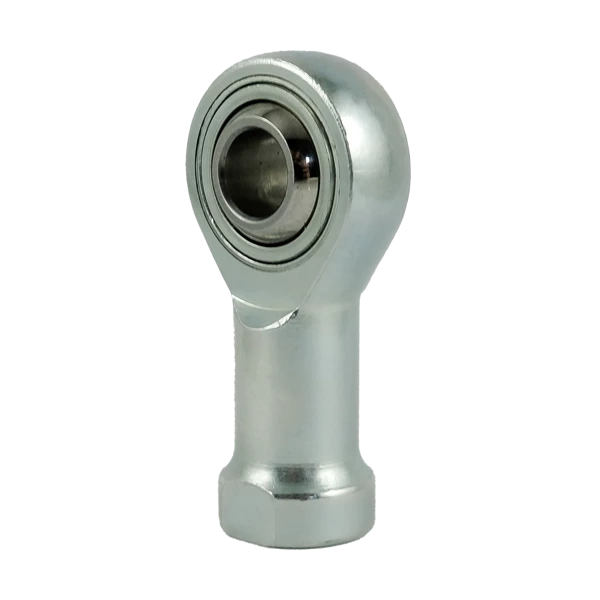

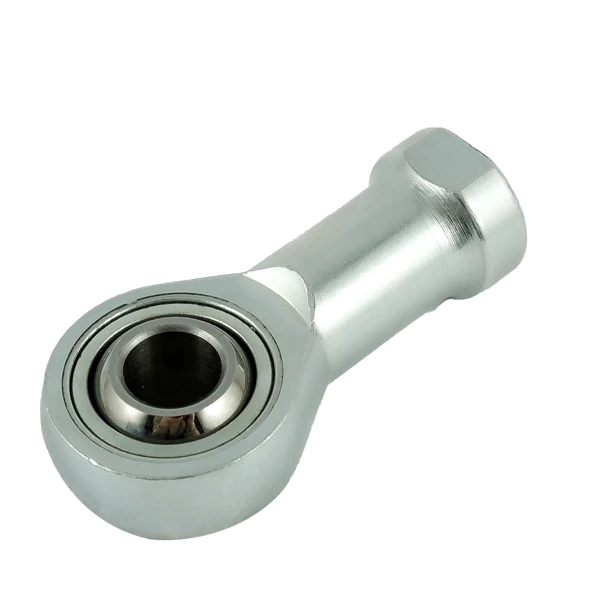

Rod-end head / rod end – uniball GILXSW 14.NIRR FLURO – M14 left-hand internal (female)
- GIXSW Series – Rod end with internal thread, all stainless elements with PTFE liner (maintenance-free). Suitable for high tensile/compressive loads.
FLURO GIXSW Rod End
GIXSW Series - Rod end with internal thread, all stainless elements with PTFE liner (maintenance-free).
Suitable for high tensile/compressive loads. Dimensional series K - maintenance-free design.
Friction pair: Chromed steel / PTFE
Housing: heat-treated steel [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA Aisi 4140], forged
Bearing bushing - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
36 / 1.42"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
57 / 2.24"
GM - Thread length [mm /inch]
25 / 0.98"
Deflection angle
32°
Maximum static load [kN / lbs]
57.0 / 12814.11
Maximum dynamic load [kN / lbs]
42.0 / 9441.98
Weight
170 g / 0.375 lbs
