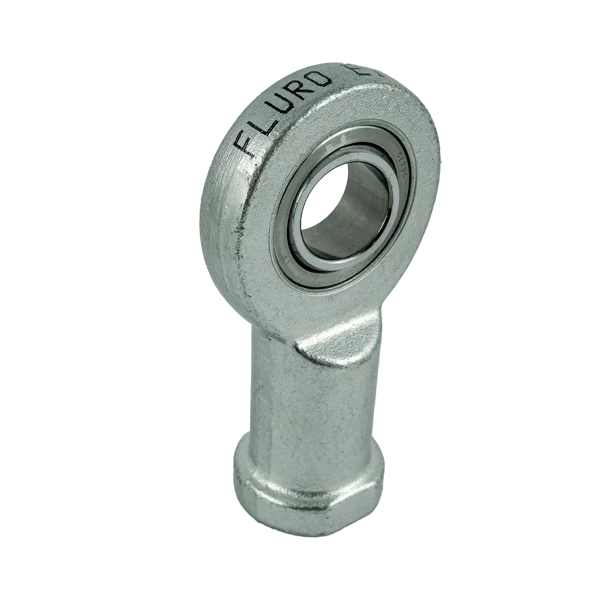

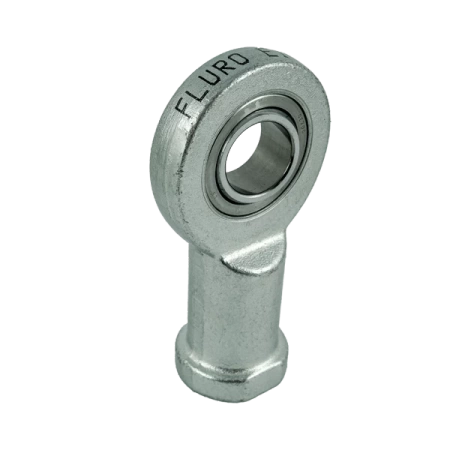

Rod end / tie rod end - uniball EI 17 D-2RS FLURO - M16 right-hand internal (female)
- EI D-2RS series - rod end head, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
FLURO Rod End EI D-2RS
Series EI – rod end, dimensional series E with internal thread, made of free-cutting steel or heat-treated steel, zinc-plated, with a maintenance-free spherical bearing.
For use in applications with high, one-sided loads and limited installation width.
Features a double-sided rubber contact seal (2RS), which protects the interior of the bearing from dust, water and dirt – ideal for harsh operating environments
Dimensional series E – maintenance-free.
Sliding contact surface: steel / PTFE
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treated steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing – maintenance-free steel / PTFE bearing GE...EC
