BMW M50 M52 M54 S50 S52 S54 - 6-speed GS6-53DZ (0° Vertical) Gearbox Adapter

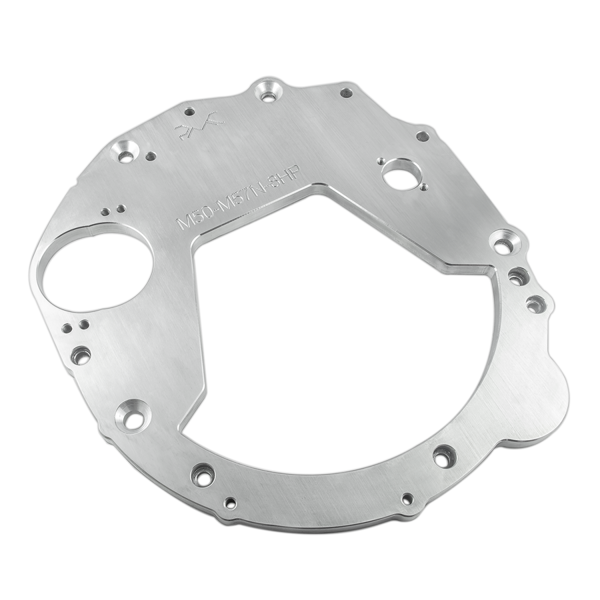

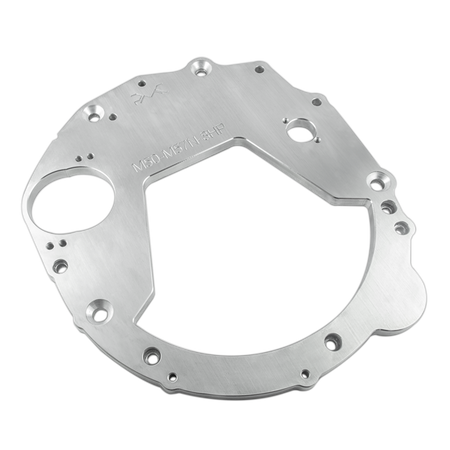

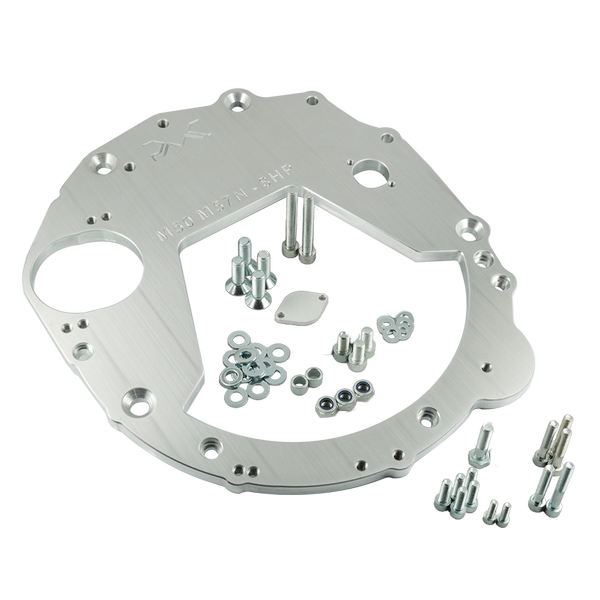

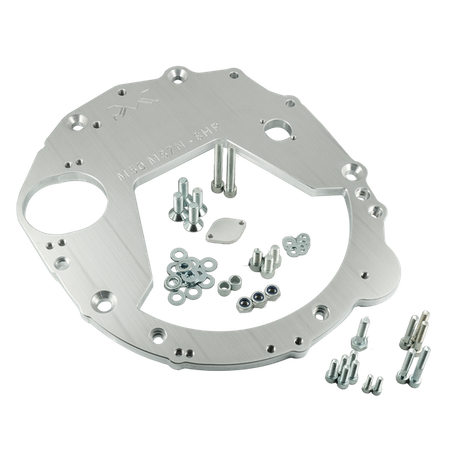

- Aluminium adapter plate designed for the conversion of the BMW M50 M52 M54 S50 S52 S54 with the BMW GS6-53DZ M57n M57n2 (0° - vertical engine position)
PMC Motorsport aluminum gearbox adapter (flange / flange) BMW M50 M52 M54 S50 S52 S54 - BMW GS6-53DZ M57n M57n2 (0° - vertical engine position)
Do you want to combine the BMW M50 M52 M54 S50 S52 S54 engine with the BMW ZF GS6-53DZ gearbox? Our gearbox adapter is the perfect solution for you. Aluminum gearbox adapter designed to simplify the installation of the gearbox as much as possible, avoiding radical actions such as cutting off the entire gearbox bell - all that remains is to prepare the hole for the starter.
PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.
Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.
Help in choosing and after-sales support - Support PMC Motorsport
The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.
Single item purchase
Our offer includes every element of our set, which can be purchased separately.
Thousands of adapters produced and satisfied customers around the world.
The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.
From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.
We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.
NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.
VAT 0%
VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.
After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.
| Matching engines | Matching gearboxes |
|
BMW BMW M50 BMW M52 BMW S50 BMW S52 BMW S54 |
ZF S6-53 GS6-53DZ 6 speed ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGU (THGU) BMW M57n2 E9x 330D ZF S6-53 GS6-53DZ HGK (THGK) BMW M57n2 E9x 330D ZF S6-53 GS6-53DZ JGL(TJGL) BMW N57n E9x 330D ZF S6-53 GS6-53DZ HS1 (THS1) BMW N57n F10 530D ZF S6-53 GS6-53DZ HB7 (THB7) BMW N57n F10 530D ZF S6-53 GS6-53DZ HAF (THAF) BMW N57n F10 530D ZF S6-53 GS6-53DZ JGG (TJGG) BMW N47s E8x 123D ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 E60 530D ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57n M57n2 E60 530D ZF S6X53 GS6X53DZ HGW (THGW) BMW M57n2 E9x 330D ZF S6X53 GS6X53DZ HGL (THGL) BMW M57n2 E9x 330D ZF S6X53 GS6X53DZ JGJ (TJGJ) BMW N57n E9x 330D |
Additional information
PMC Motorsport parts are designed for motorsport. For use on racetracks
Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.
Depending on your car, additional modifications may occur, such as: adjustment of mountings, engine mounts and bulkhead, gearbox tunnel, drive shaft length, etc.
We make adapters from fully recyclable materials.
Mounting instructions
The gearbox adapter must be fitted to the engine first.
!!! The gearbox adapter requires the use of a custom flywheel !!!
1. What does (0° - vertical engine position) mean?
The PMC Motorsport adapter allows for a vertical alignment of the BMW M50 M52 M54 S50 S52 S54 engine.
BMW M50
- BMW M50B20
- BMW M50TUB20
- BMW M50B25
- BMW M50TUB25
BMW M52
- BMW M52B20
- BMW M52B25
- BMW M52B28
- BMW M52TUB20
- BMW M52TUB25
- BMW M52TUB28
BMW M54
- BMW M54B22
- BMW M54B25
- BMW M54B30
BMW S50
- BMW S50B30
- BMW S50B32
BMW S52
- BMW S52B32
BMW S54
- BMW S54B32
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD
- Bell housing : 1067 401 060 / 1067401060
- Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
- BMW 5' E60 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E61 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA
- Bell housing: 1067 401 060 / 1067401060
- Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
- BMW 5' E60 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E61 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU
Bell housing: 1067 401 161 / 1067401161
Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK
Bell housing : 1067 401 161 / 1067401161
Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGL code JGL 6-speed
- BMW Engine: N57D30A
- BMW OE : 23 00 7 582 711 / 23 00 7582711 / 23007582711
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 020 / 23.00-7582710 / 23 00 7582710 / 23007582710
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 3-Series 3er E90 E91 E92 E93 LCI
- E90N 325d N57
- E90N 330d N57
- E91N 325d N57
- E91N 330d N57
- E92 330d N57
- E92N 325d N57
- E92N 330d N57
- E93 330d N57
- E93N 325 N57
- E93N 330d N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THS1 code HS1 6-speed
- BMW Engine: N57 N57N
- BMW OE: 23 00 7 624 205 / 23 00 7634205 / 23007634205
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 23.00-7613546 / 23 00 7613546 / 23007613546
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11 LCI
- F10 530D N57
- F10N 530D N57N
- F11 530D N57
- F11N 530D N57N
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THB7 code HB7 6-speed
- BMW Engine: N57
- BMW OE: 23 00 7 606 344 / 23 00 7606344 / 23007606344
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 022 / 23.00-7594141 / 23 00 7594141 / 23007594141
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11
- F11 530D N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THAF code HAF 6-speed
- BMW Engine: N57
- BMW OE:
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 081 155 / 23.00-4605402 / 23 00 4605402 / 23004605402
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11
- F11 530D N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGG code JGG
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 017 / 23.00-7568128 / 23 00 7568128 / 23007568128
- BMW 1' E81 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E82 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E87 LCI 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E88 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
