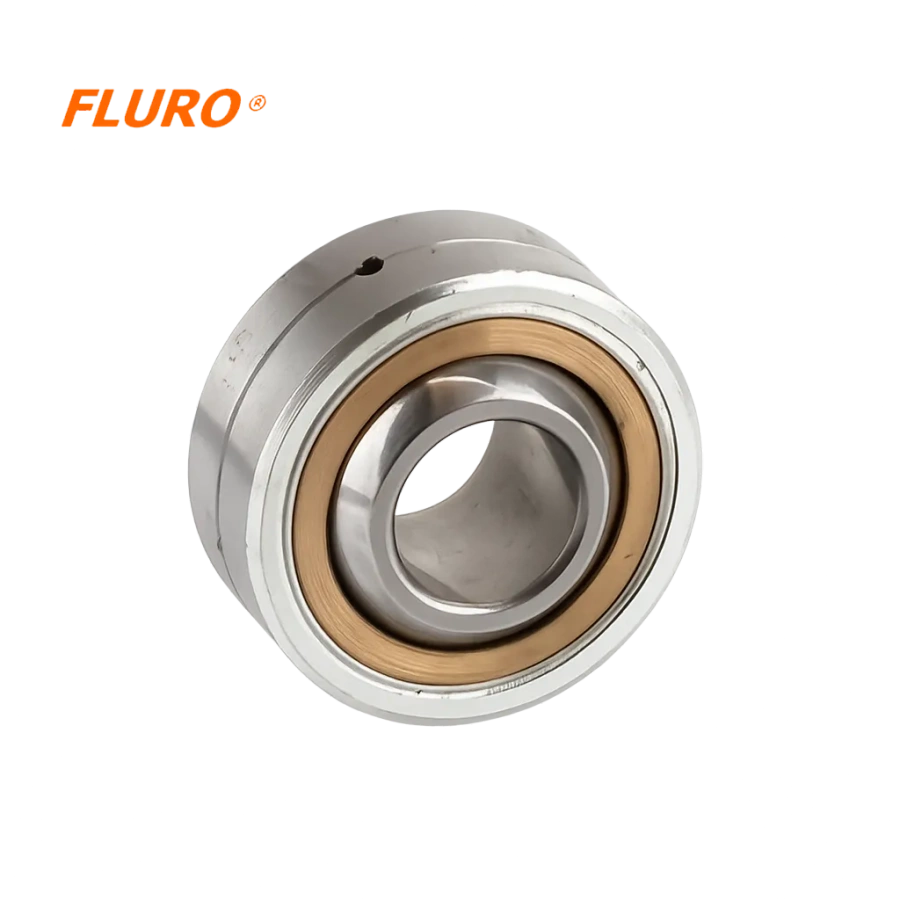

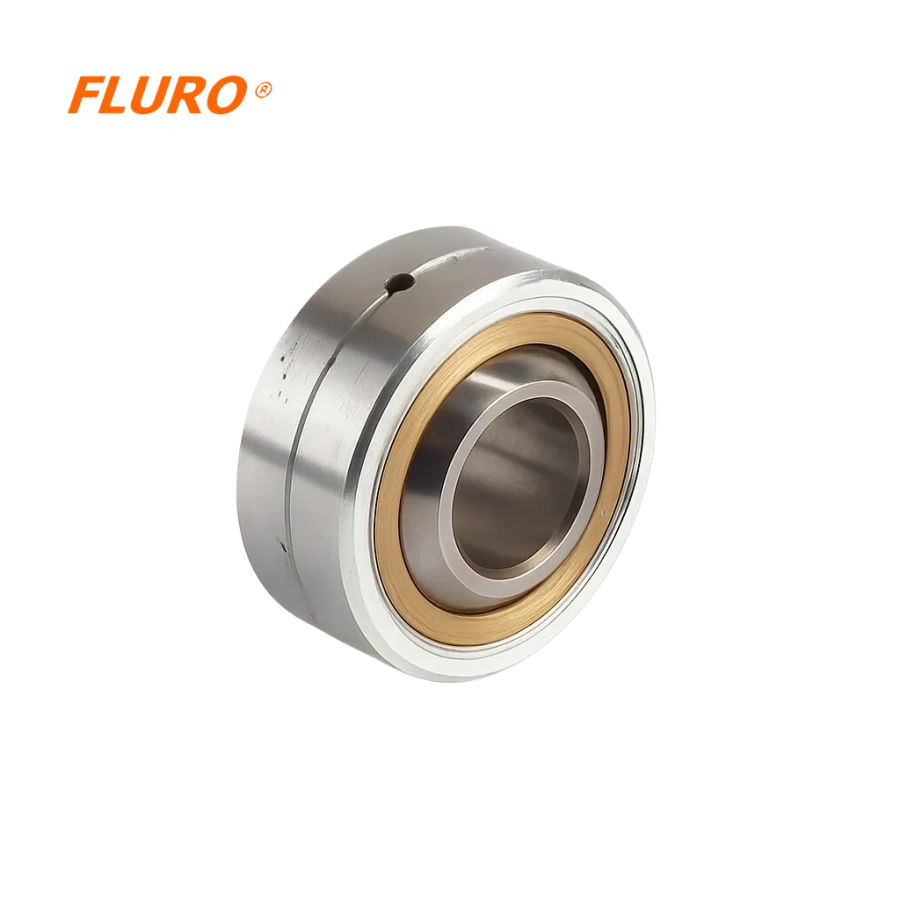

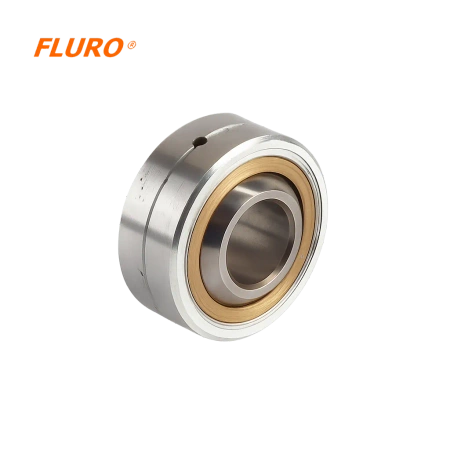

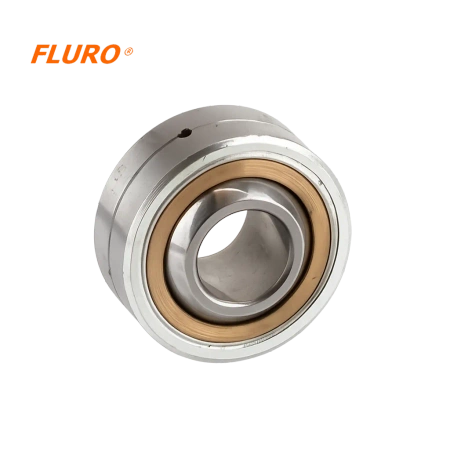

FLURO GL 18 spherical plain bearing
- GL Series – spherical plain bearing with a free-machining steel inner ring, zinc-plated and relubricable. Especially suitable for axial loads
GL FLURO spherical plain bearing
GL SERIES – spherical plain bearing with a free-machining steel inner ring, zinc-plated, relubricable.
Particularly suitable for axial loads.
For applications with high, unidirectional loads and limited installation width.
Dimensional series K – standard.
Friction pair: steel / brass
Outer ring: free-machining steel 9SMnPb28K, turned
Bearing liner – special brass CuZn40Al1
Inner ring: bearing steel 100Cr6, hardened, ground, polished

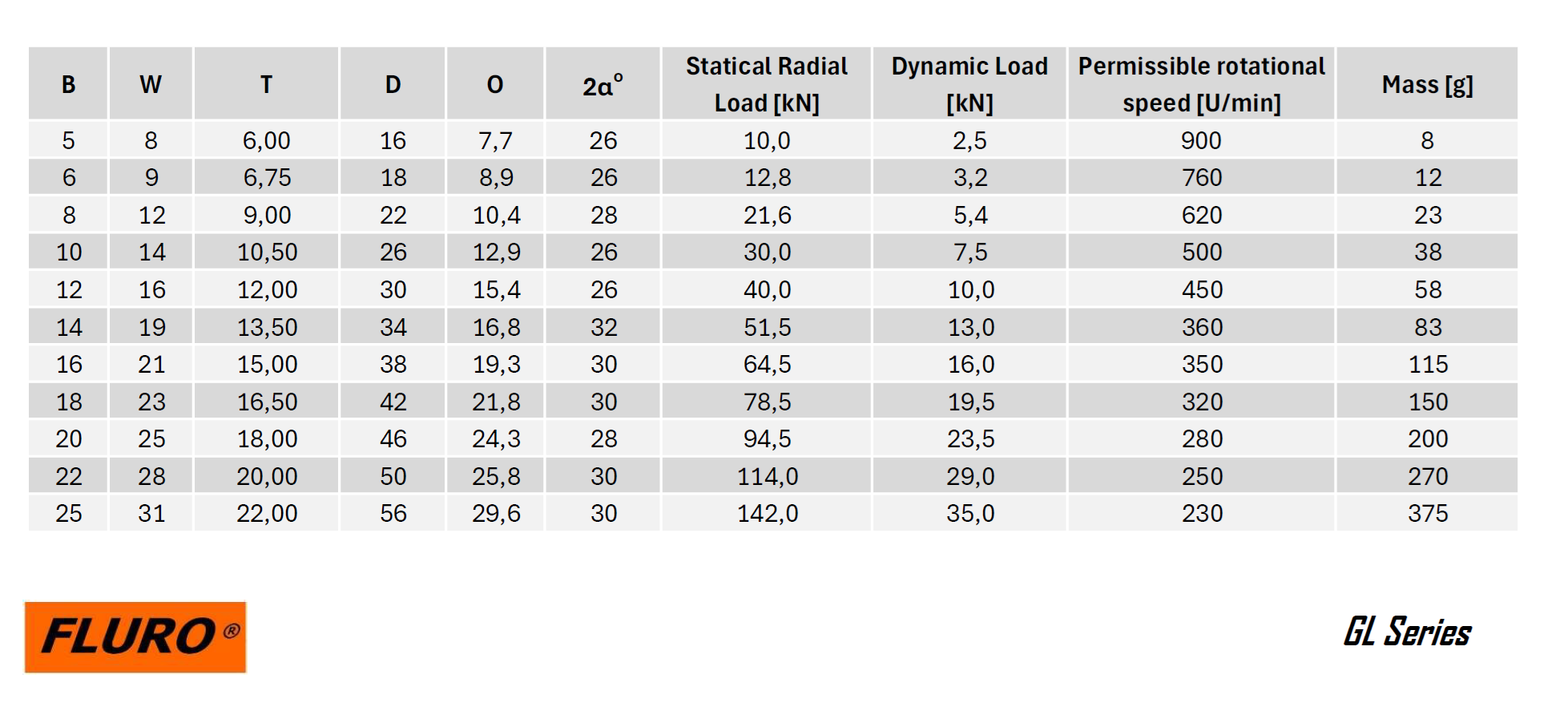

Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
23 / 0.91"
T - width of the outer ring [mm /inch]
16.5 / 0.65"
Deflection angle
30°
Maximum static load [kN / lbs]
78.5 / 17647.50
Maximum dynamic load [kN / lbs]
19.5 / 4383.77
Weight
150 g / 0.331 lbs
