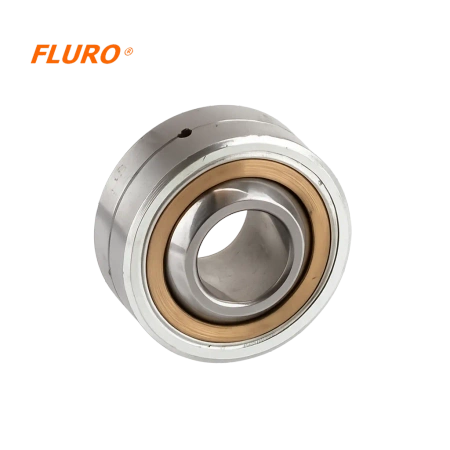

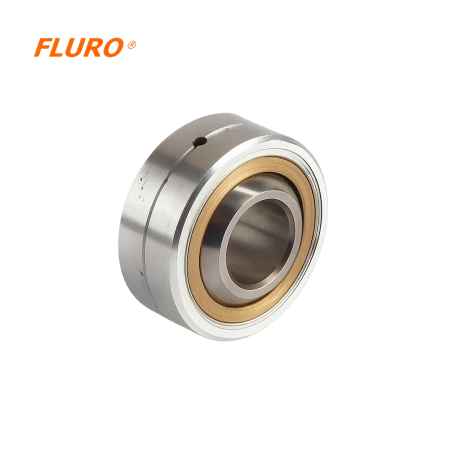

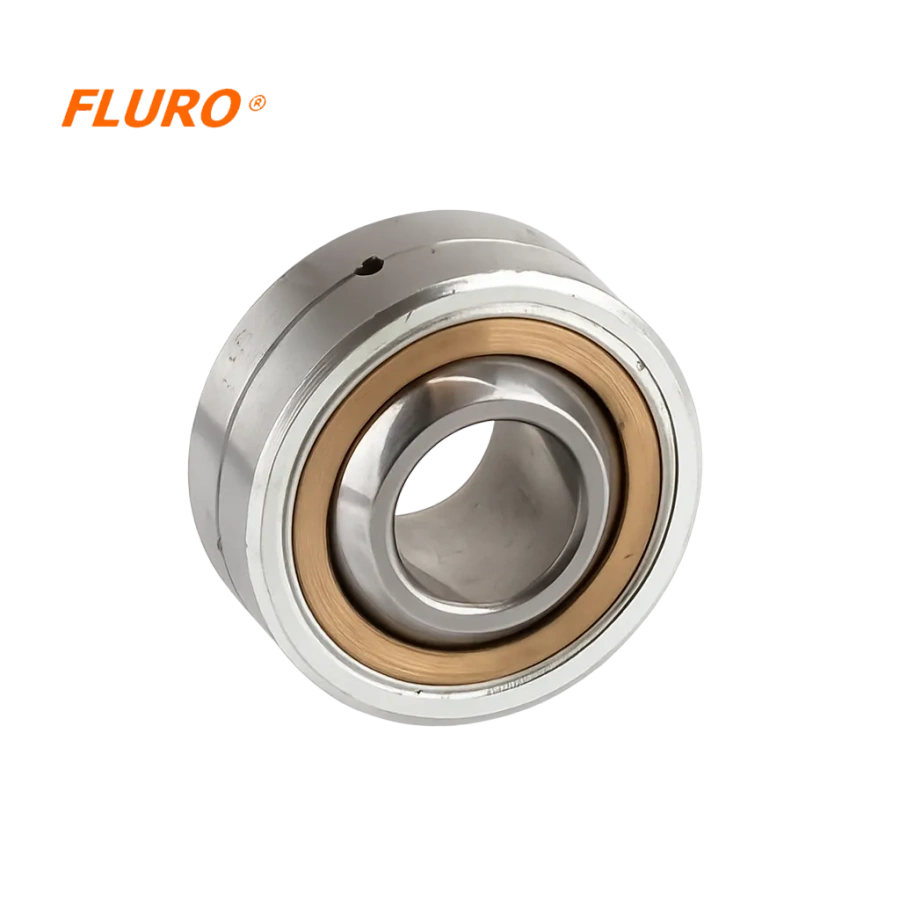

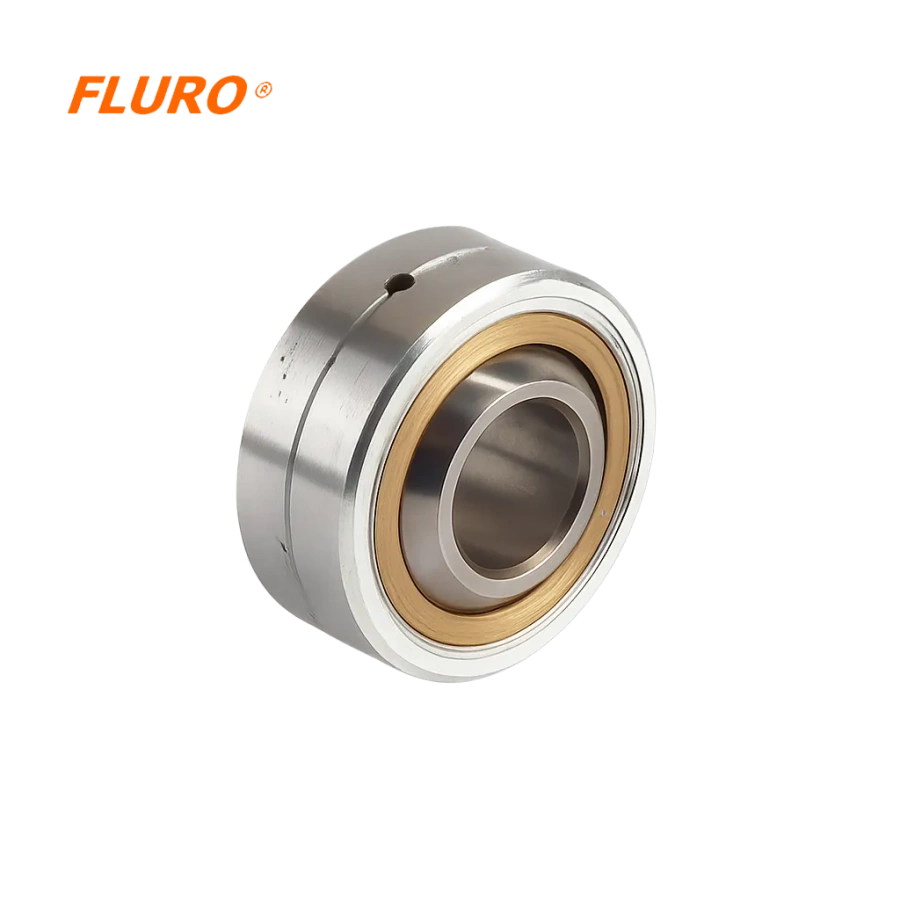

FLURO GLXS 20 spherical plain bearing
- GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable. Designed for use at higher rotational speeds.
GLXS Spherical Plain Bearing FLURO
GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable.
Designed for use at higher rotational speeds.
Dimension series K – for demanding applications.
Sliding pair – steel / bronze.
Outer ring: free-cutting steel 9SMnPb28K, turned
Bearing liner – special bronze CuSn8
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) without re-lubrication
2) one-piece outer ring CuSn8
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
Deflection angle
28°
Maximum static load [kN / lbs]
188.5 / 42376.49
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
200 g / 0.441 lbs
