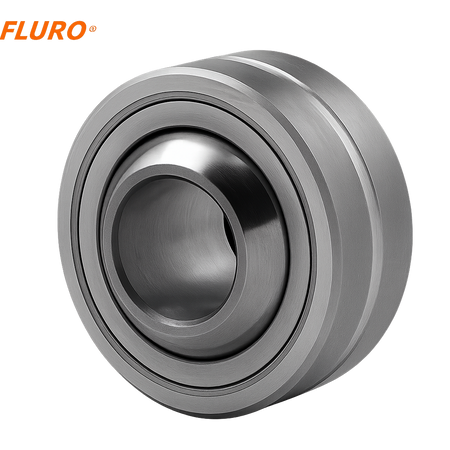

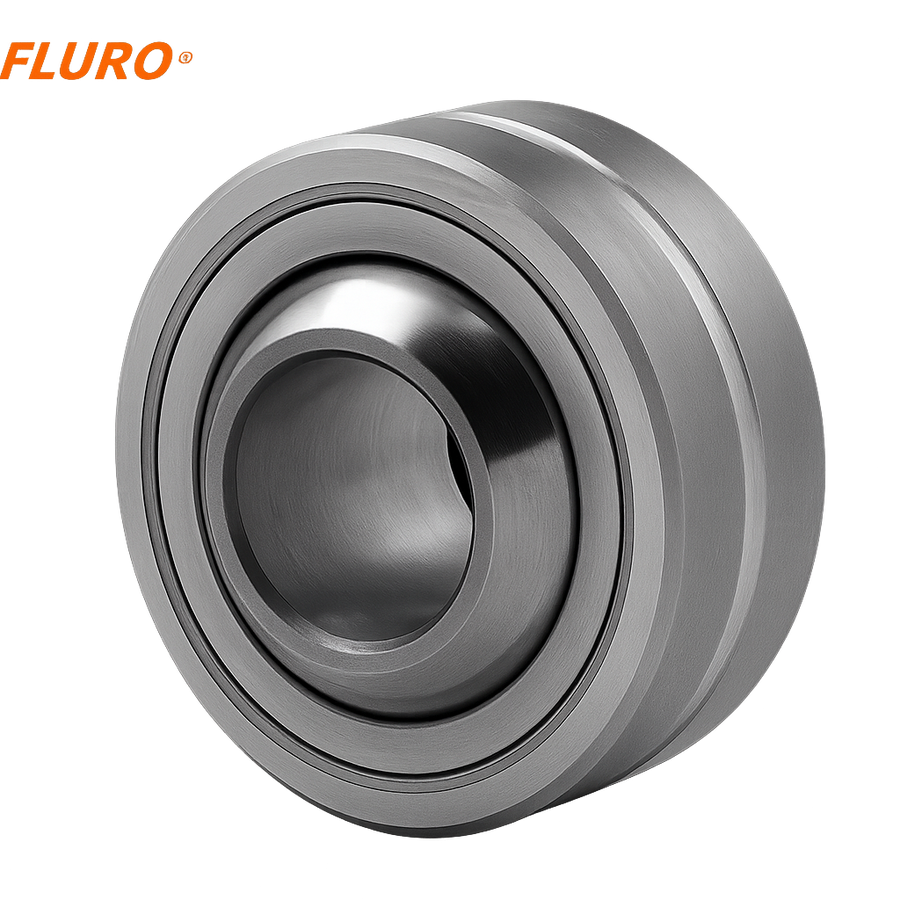

FLURO GLXSW 5 spherical plain bearing
- GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free. Designed for use under high dynamic tensile and compressive loads.
GLXSW Spherical Plain Bearing FLURO
GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free.
Designed for use under high dynamic tensile and compressive loads.
Dimension series K – maintenance-free.
Sliding pair – steel / PTFE.
Outer ring: free-cutting steel 9SMnPb28K, turned.
Bearing liner – free-cutting steel 9SMnPb28K with bonded PTFE layer.
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) one-piece outer ring made of 45S20
Specification
D - external diameter of the rod head [mm /inch]
16 / 0.63"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
Deflection angle
26°
Maximum static load [kN / lbs]
12.5 / 2810.11
Maximum dynamic load [kN / lbs]
7.5 / 1686.07
Weight
8 g / 0.018 lbs
