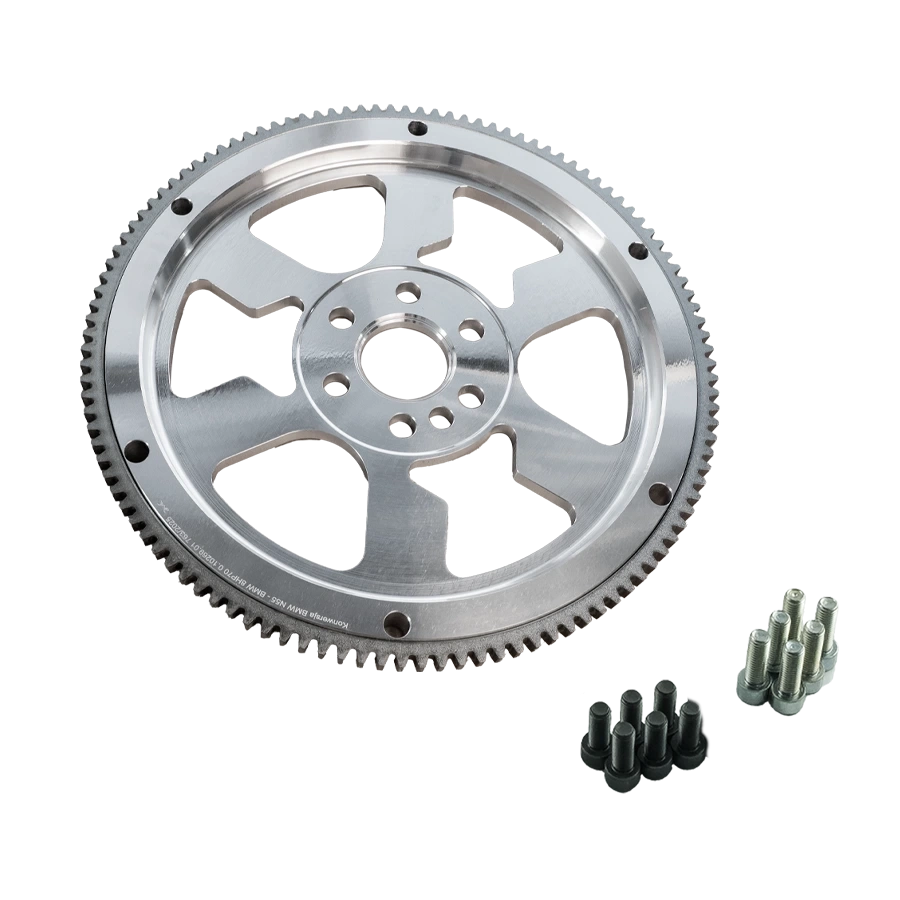

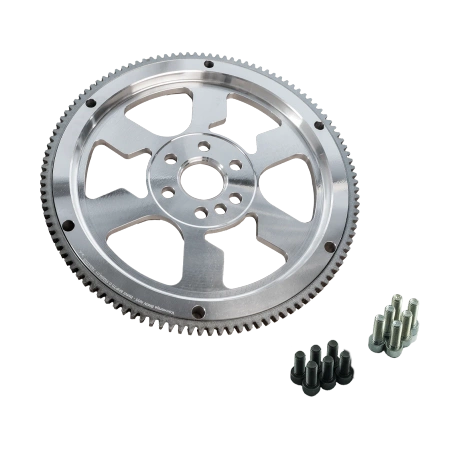

Torque converter adapter BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51 - BMW N54 N55 (6)
- Replace the BMW OE 11 22 8 604 045 with our custom flywheel. The aluminum flywheel with a galvanized starter ring gear (of identical hardness to BMW OE) allows the connection of ultra-fast modern ZF 8HP gearboxes to BMW.
Save by buying more
PMC Motorsport Spacer / Converter Adapter BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 - BMW N54 N55 (6-bolt mounting)
Do you want to connect the BMW N54 N55 engine with the BMW ZF 8HP automatic gearbox? Replace the BMW OE 11 22 8 604 045 with our custom flywheel. The aluminum flywheel with a galvanized starter ring gear (of identical hardness to BMW OE) allows the connection of ultra-fast modern ZF 8HP gearboxes to BMW.
By choosing PMC Motorsport, you invest in proven quality and engineering precision. Our adapters guarantee ideal concentricity of the engine and gearbox. They are used in thousands of cars worldwide.
Compatibility Table
| Compatible Engines: | BMW N54 N54B30 (6-bolt) BMW N55 N55B30 (6-bolt) |
| Compatible Automatic Gearboxes:
| ZF 8HP 8HP50 8HP51 ZF 8HP50 GA8HP50Z GA8HP50X BMW B37 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B38 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B47 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B48F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B58 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B48 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B58 G-series ZF 8HP 8HP70 8HP75 8HP76 RWD / AWD xDrive ZF 8HP70 GA8HP70Z GA8HP70X BMW N57 F-series ZF 8HP75 GA8HP75Z GA8HP75X BMW N57 F-series (AWD xDrive) ZF 8HP75 GA8HP75Z GA8HP75X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series (AWD xDrive) ZF 8HP76 GA8HP76Z GA8HP76X BMW S55 G-series |
Why choose PMC Motorsport parts and adapters?
Professionalism
Our parts go a long way from design to implementation. Each component for which we produce parts has been measured by us using a measuring arm and a 3D scanner. The prototype is subjected to numerous tests to eliminate all possible problems in its use. We only use certified materials from proven suppliers for our production. We have a modern CNC machine park and experienced employees.
Perfect concentricity.
Our adapters guarantee a perfect fit between the engine and the gearbox.
Made in Poland
All of our production and design departments are located in Poland. Over 90% of the components are manufactured by us.
Help with selection and after-sales support.
The PMC Motorsport team will help you choose the right set for you. And in case of doubt during assembly, they will provide technical support. You can contact us via Facebook, Instagram and the contact form.
Purchase of a single component
We offer every element of our set, which can be purchased separately. If you need a spare part, write to us via the contact form.
Fast shipping worldwide.
We ship our products to virtually all countries worldwide. Shipping to European Union countries (excluding islands) and Great Britain is calculated automatically. For countries not on the list, our team will prepare a shipping calculation and add it to the order after the order is placed. You will receive an email with the cost of the order. !!! ATTENTION The shipping quote provided along with the product price does not include additional fees / customs duties that may occur depending on the country of shipment. !!!
VAT 0%
VAT 0% for Customers with an active European VAT number (option for B2B Customers from outside Poland). After positive verification in the VIES system, we modify the order by removing the calculated VAT from the order.
Experience
Thousands of adapters manufactured and satisfied customers all over the world. PMC Motorsport adapters are used both in Daily cars and in professional projects intended for professional motorsport.
Quality confirmed by certificate
From the very beginning, we focus on the quality of the parts we manufacture. The component is controlled after each production stage. Every sub-assembly manufactured by us is engraved with a production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

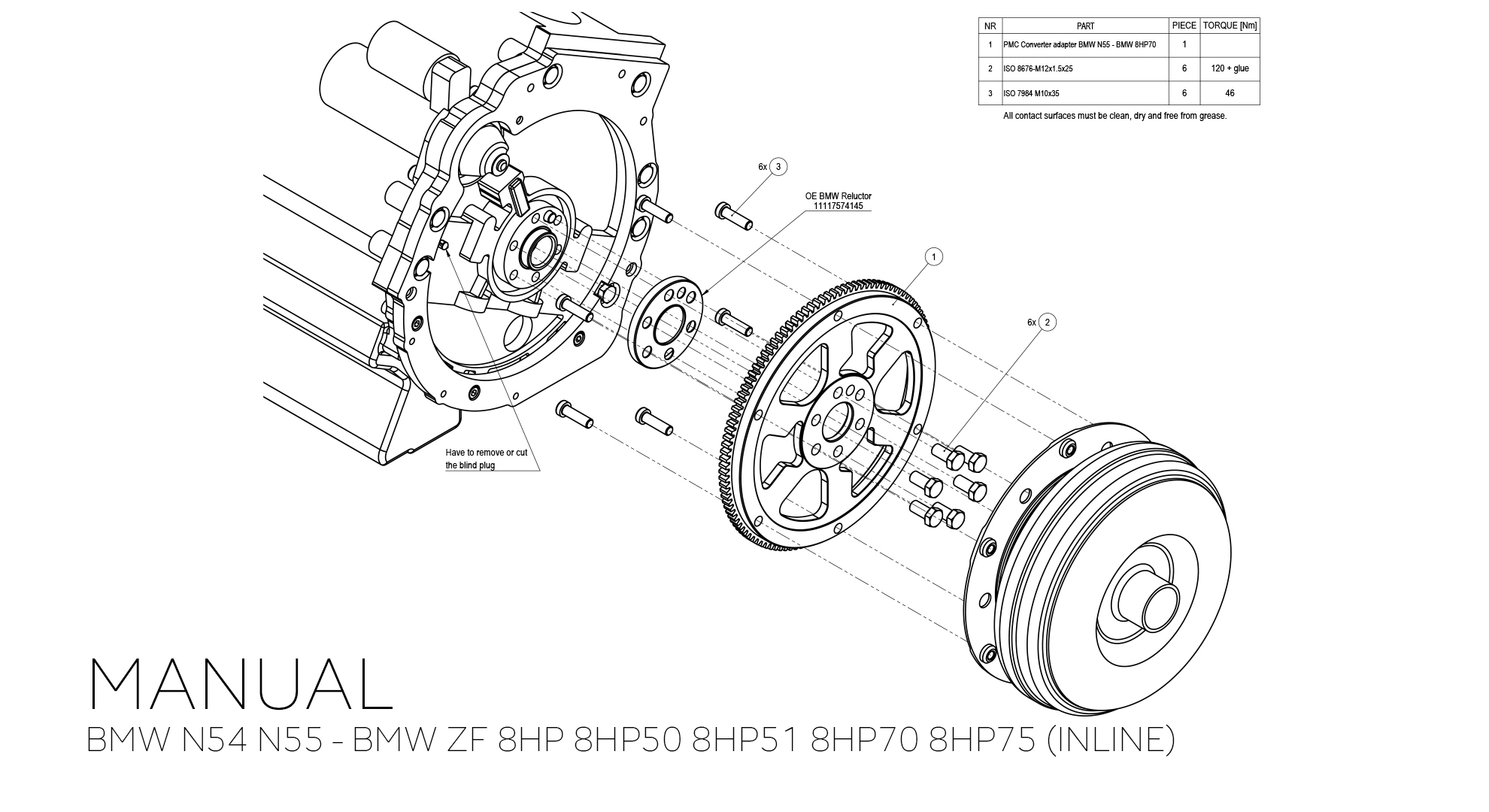

Assembly instructions
!!! PMC Motorsport parts are intended for motorsport and for use on racing tracks. Parts for assembly by professionals using appropriate tools in workshops adapted for this purpose !!!
The adapter is fully recyclable.
The converter adapter requires a PMC motorsport gearbox adapter for mounting
