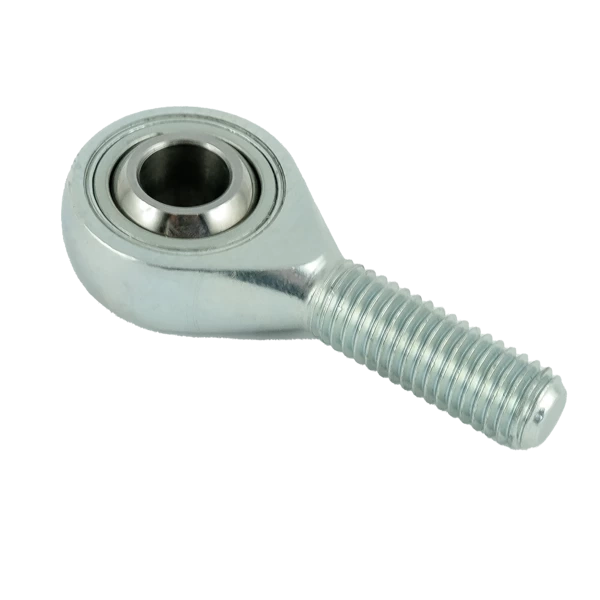

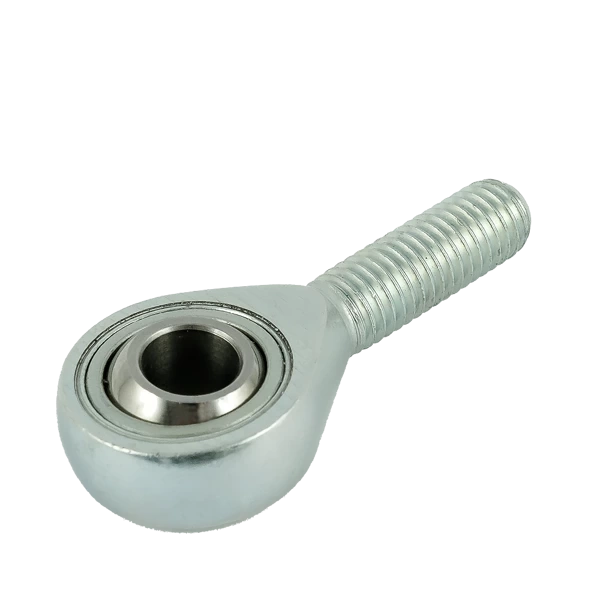

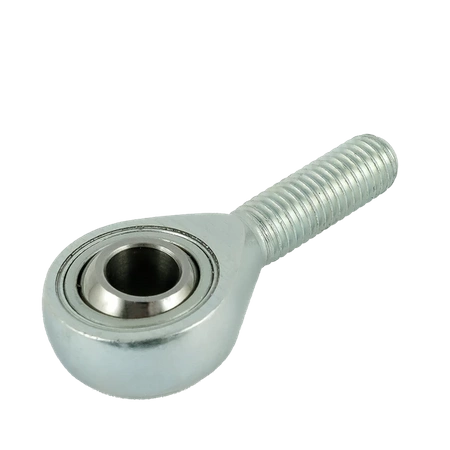

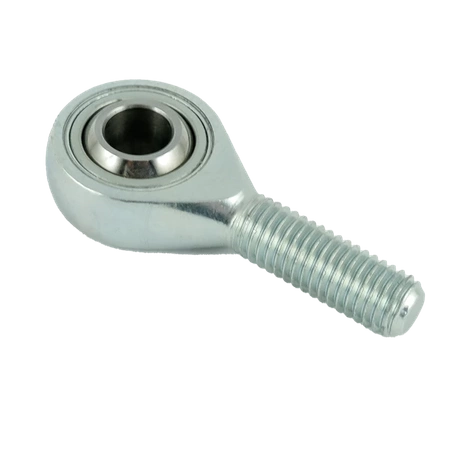

Tie rod end / tie rod end - uniball GAXS 14 FLURO - M14 right (male)
- Tie rod end / tie rod end - uniball GAXS 14 FLURO - M14 right (male)
GAXS 14 FLURO rod end - M14
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - External diameter of the rod head [mm /inch]
36 / 1.42"
W - Width of the inner ring [mm /inch]
19 / 0.75"
T - Width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
60 / 2.36"
GM - Thread length [mm /inch]
38 / 1.50"
Deflection angle
32°
Maximum static load [kN / lbs]
57.0 / 12814.11
Maximum dynamic load [kN / lbs]
17.0 / 3821.75
Weight
129 g / 0.284 lbs
