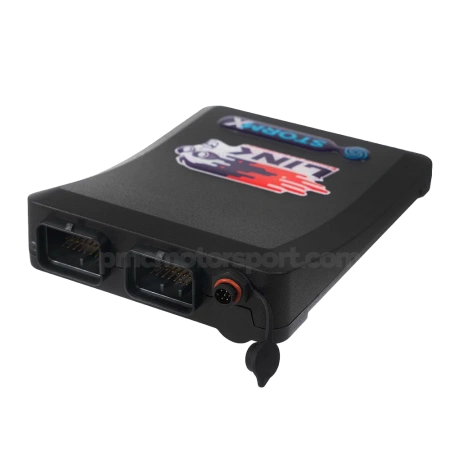

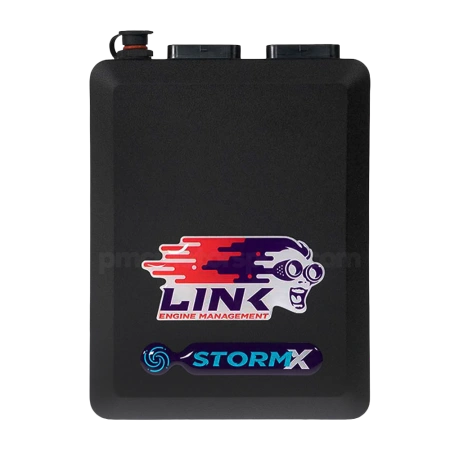

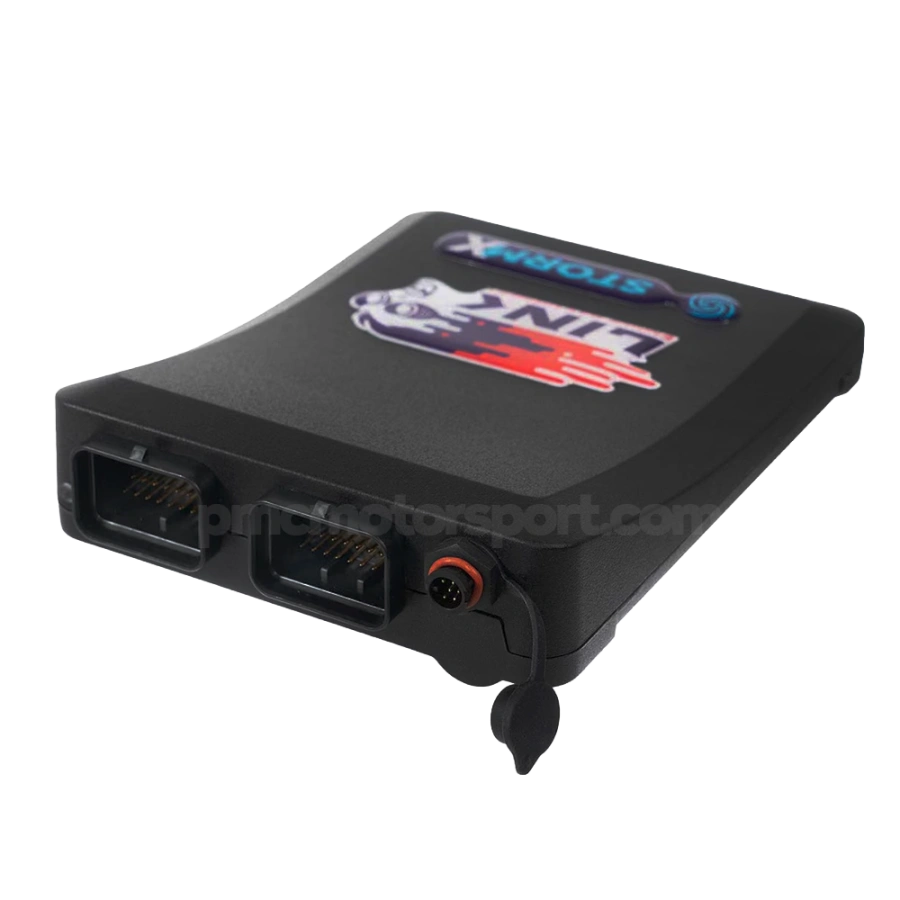

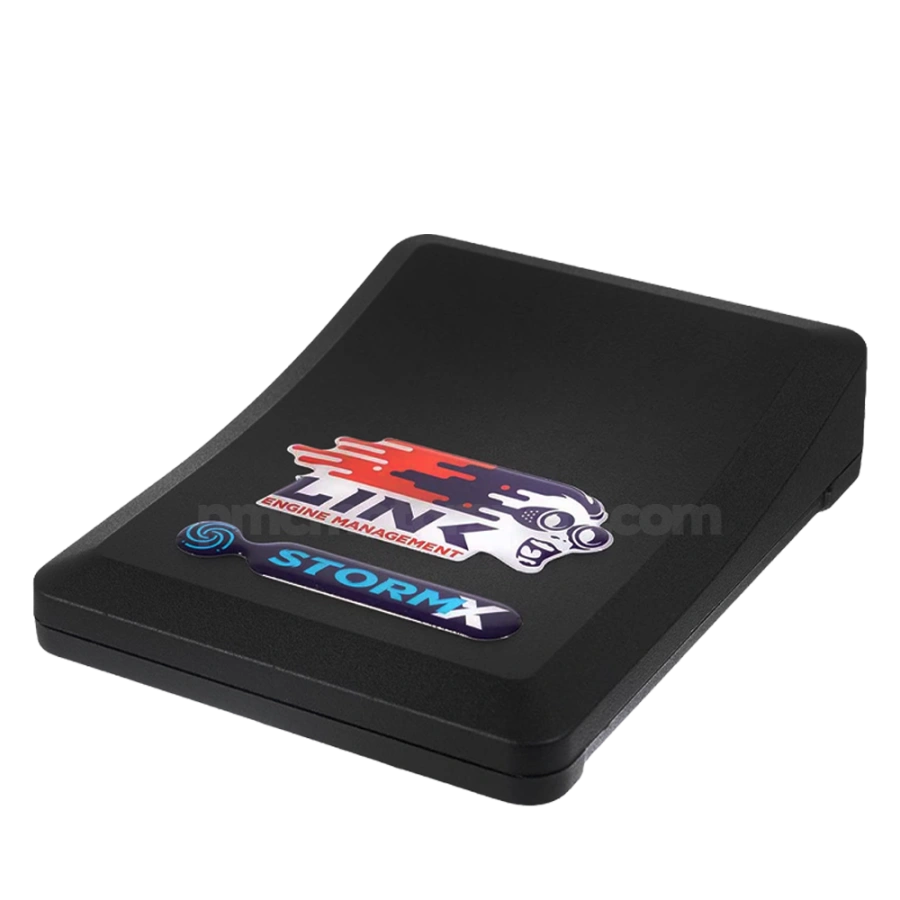

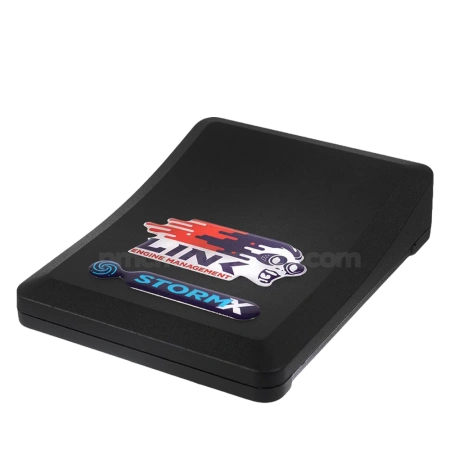

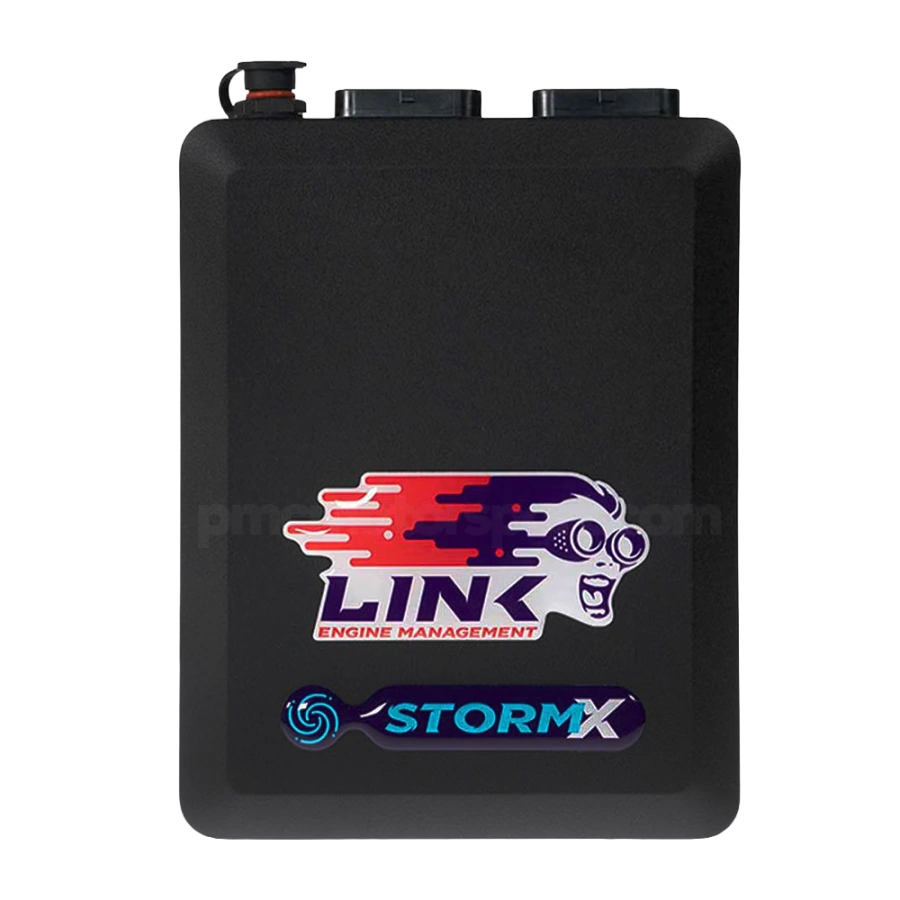

Link G4X StormX
- G4X StormX standalone ECU with eight fuel and eight ignition drives plus two knock inputs.
Link G4X StormX
Positioned between Link's entry-level and premium G4X ECUs, the StormX delivers performance, flexibility and value.
It includes all the core G4X features expected from Link's championship-winning platform, including CAN Bus, Flex Fuel, Flexible engine protection limiters, CAN Keypad Control, VVT Control, Open and Closed Loop Boost Control and 512MB of data logging.
The StormX includes increased I/O and advanced functionality beyond Link's entry-level ECUs with additional injector and ignition drives, auxiliary outputs, digital inputs, and temperature inputs. It also introduces advanced tuning features including a built-in Trigger Oscilloscope, Stepper Motor Idle Control and Rotary Oil Metering Pump Control.
Drawing from Link's premium G4X range, the StormX also supports some advanced motorsport features including Nitrous Control, Launch Control, Full Gear Shift Control and Anti-Lag, making it a smart choice for high-performance street and motorsport applications.
The StormX is the ideal solution for builds requiring expanded I/O and some advanced tuning capability, without needing the extra features that come with our premium ECUs.
Features
The StormX is positioned between Link's entry-level and premium G4X ECUs and offers the following features:
ECU Features |
8 Custom Math Blocks with 30 characters Flex Fuel Trigger Oscilloscope Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Dual Closed Loop Lambda 512 Megabytes of Internal Data Logging |
Motorsport Features |
Nitrous Control Launch Control Anti-Lag Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
The StormX is the ideal solution for builds requiring more inputs and outputs than Link's entry-level G4X ECUs while only requiring some of the specs of our premium G4X ECUs including:
Outputs |
8 Injection Drives 8 Ignition Drives 8 Auxiliary Outputs +5V Sensor power supply +8V Sensor power supply Unused Inj/Ign can be used as a Auxiliary Outputs |
Inputs |
8 Digital Inputs 3 Temperature Inputs 8 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs |
Communications |
1 CAN Bus Channel LTW 6Pin USB Tuning Connection |
Data Logging |
512MB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |
Product Dimensions |
185mm(L) x 130mm(W) x 40mm(H) 7.28in(L) x 5.12in(W) x 1.57in(H) |
Product Weight |
660 grams (23.28 ounces) |
Material |
Die-cast aluminum enclosure |
Electrical |
Operating Voltage Range: 6.5-24V Maximum Input Voltage: 36V Maximum Continuous Current Draw: 5.5A Operating Current: 200mA |
Misc. |
Manufacturing Standard ISO 13485 Ambient temperature range: -30 to 90°C |

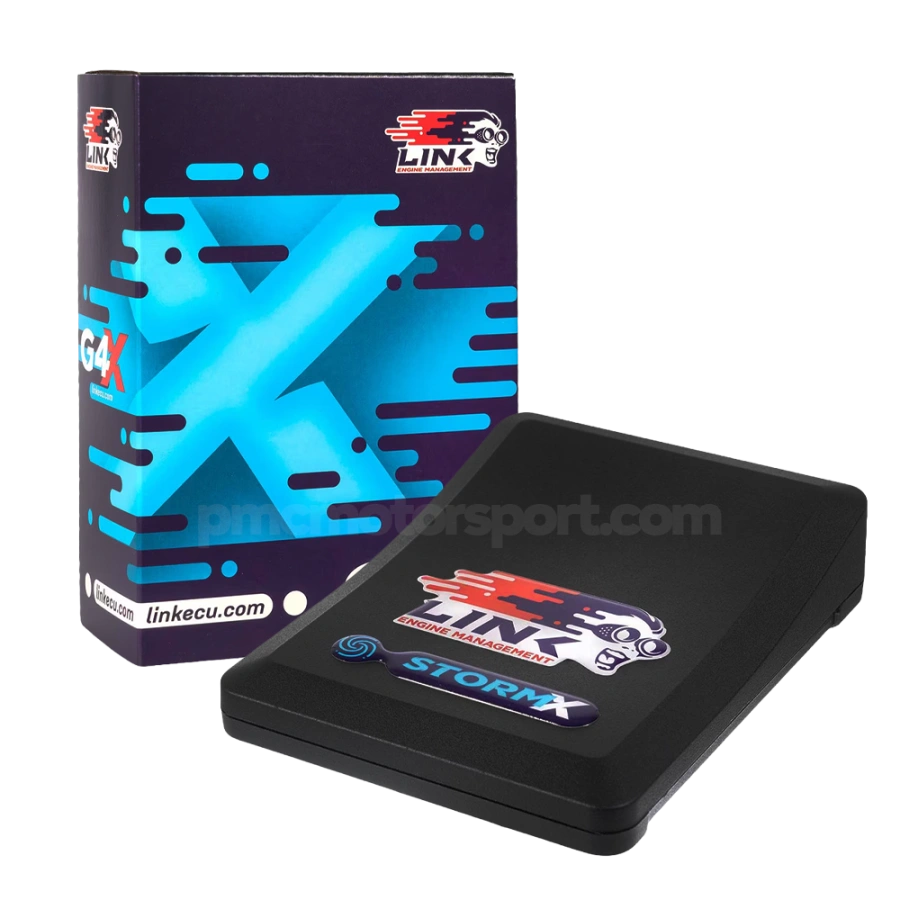

What's in the Box |
StormX G4X ECU Quick Start Guide Mounting Bracket USB Tuning Cable LinkECU Stickers |

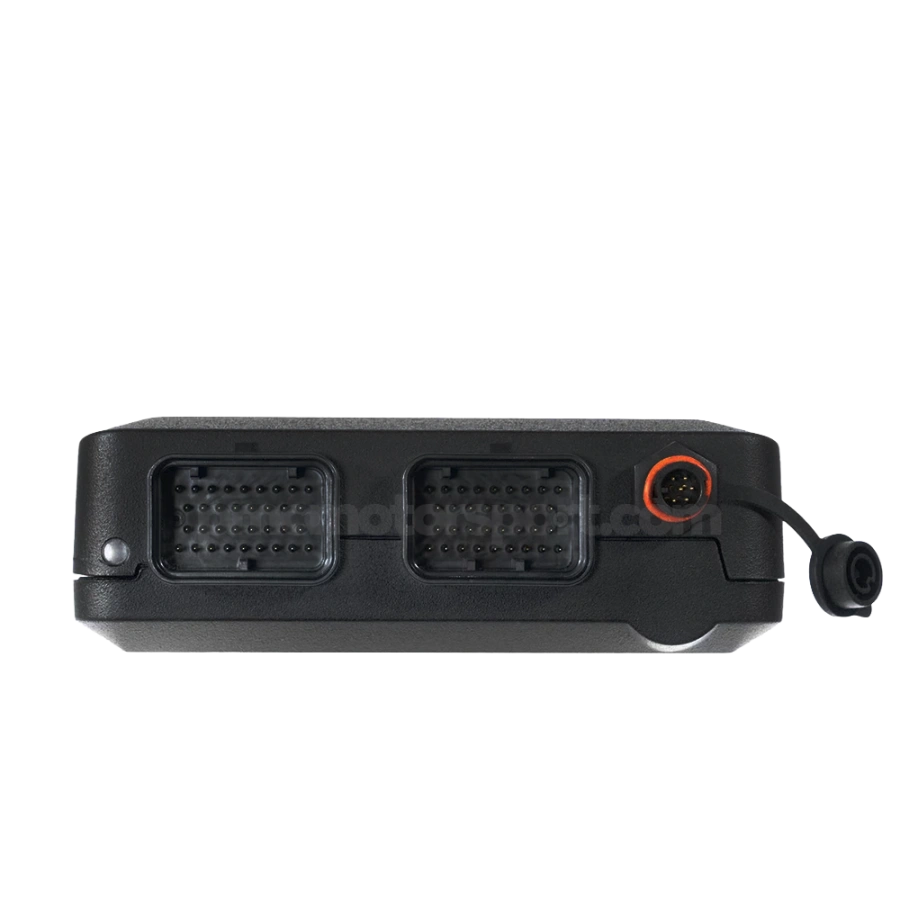

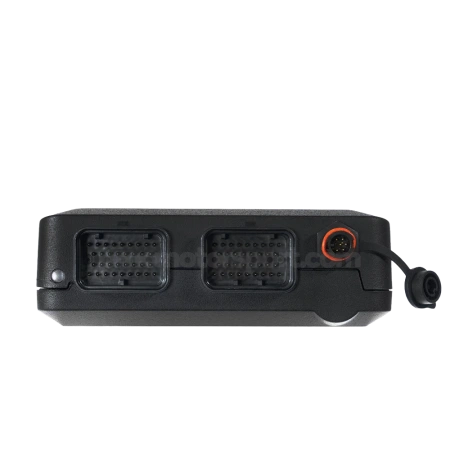

Connector |
Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 |
