PMC Motorsport aluminum gearbox adapter plate BMW V12 M70 M73 – BMW ZF GS6-53DZ / GS6-45DZ / ZF 6HP / ZF 8HP 8HP45 8HP50 8HP51 8HP70 8HP75

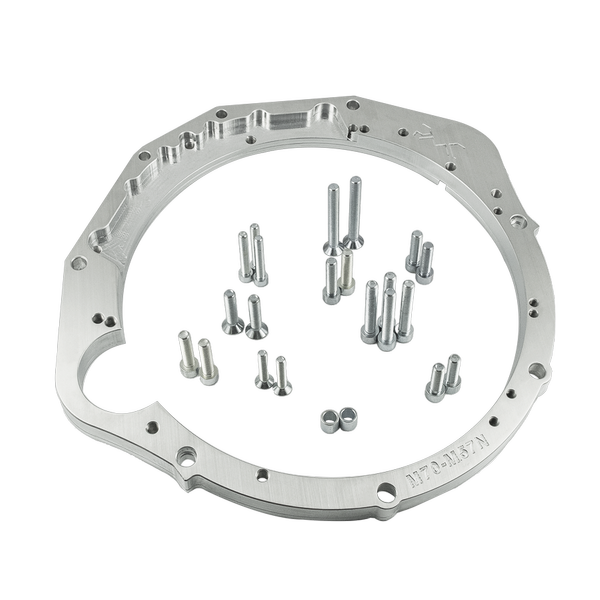

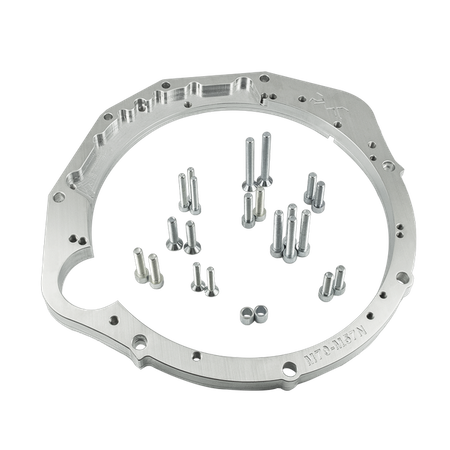

Aluminum adapter plate enabling the connection (swap / conversion) of the BMW V12 M70 / M73 engine with a 6-speed manual ZF gearbox from a diesel BMW – GS6-53DZ (M57N / M57N2 / N57 / N47S) or GS6-45DZ – as well as automatic gearboxes ZF 6HP and ZF 8HP (8HP45 / 8HP50 / 8HP51 / 8HP70 / 8HP75).

Are you planning an engine swap of the BMW V12 M70 / M73 engine into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Or maybe you want to replace the factory gearbox in a BMW with a V12 M70 / M73 engine (e.g. E32 750i, E31 850i / 850Ci, E38 750i) with a durable 6-speed manual GS6-53DZ gearbox or a modern ZF 8HP automatic? In both cases, our adapter is a reliable solution. Gain a durable BMW gearbox with 6 or 8 speeds and easy access to spare parts.

The aluminum gearbox adapter plate was designed to simplify gearbox installation as much as possible, avoiding radical steps like cutting off the entire bellhousing – only the starter motor clearance needs to be prepared. The adapter requires a custom PMC Motorsport flywheel matched to the chosen gearbox (sold separately).

PMC Motorsport gearbox adapters are synonymous with precision and top quality. A design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal engine-gearbox concentricity, which is crucial for powertrain durability.

Why choose a BMW gearbox?

Availability and price. Millions of cars produced worldwide guarantee easy access to spare parts. Both parts and complete gearboxes are readily available at official dealerships and on the secondary market.

Strength and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can withstand very high torque (some models 1000 Nm+), while guaranteeing high reliability. They are ideal for swaps in high-power projects intended for daily use.

Speed and convenience. When using new-generation automatic gearboxes like ZF 8HP, you get lightning-fast gear changes.

Additional information

Installation instructions

The gearbox adapter requires a custom PMC Motorsport flywheel, and for automatic gearboxes – a PMC Motorsport torque converter adapter (not included in the kit).

In the case of an RHD engine (right-hand drive), a starter motor from the LHD version must be used and the plug in the engine block cut out.

Frequently Asked Questions

Which engines does this adapter fit?

For BMW V12 M70 (M70B50) and M73 (M73B54, M73TUB54) engines. The adapter is intended for LHD engines – on RHD engines, a starter motor from the LHD version must be used.

Which gearboxes fit the adapter?

For 6-speed manual gearboxes ZF GS6-53DZ (BMW M57N / M57N2 / N57 / N47S: E60 530d, E9x 330d, F10 530d, E8x 123d) and ZF GS6-45DZ, as well as automatic gearboxes ZF 6HP (6HP26, 6HP26X, 6HP28X) and ZF 8HP (8HP45, 8HP50 / 8HP51, 8HP70, 8HP75). The complete list of versions can be found in the table above.

Is a flywheel included in the kit?

No. The adapter requires a custom PMC Motorsport flywheel selected for your chosen gearbox. The flywheel (or torque converter adapter for the ZF 8HP transmission) is available separately.

Do I need to cut the gearbox bellhousing?

No. The adapter was designed to avoid cutting the bellhousing – you only need to prepare the clearance hole for the starter motor.

Which starter motor should be used?

BMW M70 / M73 OE starter motor from the LHD version. On an RHD engine, a starter motor from the LHD version must be used and the plug in the engine block cut out. The starter motor is not included in the kit.

Does the adapter also fit the ZF 8HP automatic transmission?

Yes. The adapter supports ZF 8HP (8HP45, 8HP50 / 8HP51, 8HP70, 8HP75) and ZF 6HP automatic transmissions. When converting to an automatic transmission, a PMC Motorsport torque converter adapter is used instead of a flywheel.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping estimate do not include customs duties or additional fees that may apply in the recipient's country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verification in the VIES system) or ordering with shipping outside the EU.

Are the included instructions sufficient for installation?

The instructions describe connecting the engine to the gearbox outside the car body. Depending on the vehicle, additional modifications may be required: mounts, bushings, firewall, gearbox tunnel, driveshaft length. We recommend installation by professionals.
