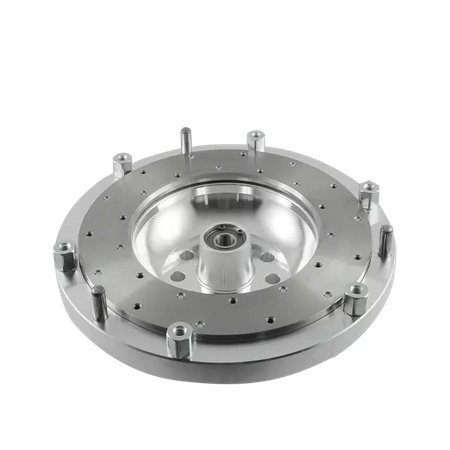

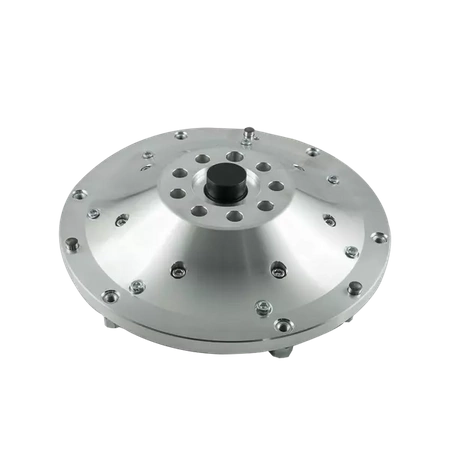

Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"
Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"
Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"
Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"
Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"
Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"

Flywheel BMW M60 M70 - BMW M57N ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45"

  • Custom flywheel BMW M60 M70 - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel - SMF | 240mm / 9.45"
525,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Save by buying more

PMC Motorsport Custom Flywheel BMW M60 M70 - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D 6-Speed ​​Diesel - SMF | 240mm / 9.45"

Do you want to combine the BMW V8 M60 V12 M70 engine with the ZF GS6-53DZ 6-speed manual transmission? Our gearbox adapter is the perfect solution for you. Custom flywheels dedicated to adapters PMC Motorsport made of aluminum with replaceable friction surface, checked and balanced before shipping. Flywheel designed for a 240mm pressure type (GS6-53DZ BMW OE).

PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.

Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.

Help in choosing and after-sales support - Support PMC Motorsport

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.

Single item purchase

Our offer includes every element of our set, which can be purchased separately.

Thousands of adapters produced and satisfied customers around the world.

The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.

From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.

We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.

NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.

VAT 0%

VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.

After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.

Matching engines: Matching gearboxes

BMW M60 LHD

BMW M60 M60B30

BMW M60 M60B40

BMW M70 LHD

BMW M70 M70B50

ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed

ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D

ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 E60 530D

ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 (xDrive)

ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57n M57n2 (xDrive)

Additional information

PMC Motorsport parts are designed for motorsport. For use on racetracks

Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.

The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.

Depending on your car, there may be additional modifications such as: adjustment of mounts, cushions and engine bulkhead, gearbox tunnel, drive shaft length, etc.

We make adapters from fully recyclable materials.

The flywheel requires the use of a PMC gearbox adapter. To install the flywheel, it is necessary to use the flywheel from the BMW automatic version OE 11 22 1 747 843 / 1747843 or 11 22 1 715 646 / 1715646. The clutch lever is mounted in the lower position of the release bearing.

instrukcja montażu podpory łapy sprzęgła PMC w skrzyni biegów BMW

instrukcja pozycji łapy sprzęgła na łożysku oporowym

Symbol
K0HGD-240-M6
Producer code
5903707404377
Specification
BMW Engine Model
BMW M70 M70B50
BMW M60 M60B30 M60B40More

BMW V8 M60

BMW V8 M60 M60B30

  • 1992–1995 BMW E34 530i
  • 1992–1994 BMW E32 730i
  • 1994–1996 BMW E38 730i

BMW V8 M60 M60B40

  • 1993–1995 BMW E34 540i
  • 1992–1994 BMW E32 740i
  • 1994–1996 BMW E38 740i
  • 1992–1996 BMW E31 840i
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGD BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD

  • Bell housing : 1067 401 060 / 1067401060
  • Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
6-speed ZF GS6X53DZ HGE BMW E60 530xD M57n M57n2 xDrive
6-speed ZF GS6-53DZ JGA BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA

  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
6-speed ZF GS6X53DZ JGB BMW E60 530xD M57n M57n2 xDrive
Clutch information
Recommended clutch pressure plate
BMW OE 21 21 7 545 068 | 21217545068
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc diameter
Ø240mm / 9.45"
Clutch disc (Not included - OE part number)
BMW OE 21 20 7 583 172 | 21207583172 (GS6-53DZ / BZ)
Spline
32,5x35-26N (GS6-53DZ / BZ)
Spline Count
26
Required clutch release bearing (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027
Required clutch release fork (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027 (2-position)
Clutch Slave Cylinder required
BMW OE 21 52 6 775 924
BMW OE 21 52 6 785 964
BMW OE 21 52 1 158 903
BMW OE 21 52 6 766 277
Flywheel specification
Flywheel Type
SMF Rigid / Single-mass / Single-disc / Ø240mm / 9.45"
Flywheel weight PMC
4,85 kg / 10,69 lbs / 171,076 oz
Replaceable friction surface
Yes
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
120Nm 88,5 ft·lb + Glue
Starter required (not included)
BMW M60 M62 OE 12 41 1 729 981 / 1729981
BMW M60 M62 OE 12 41 1 736 921 / 1736921
Flexplate / ring gear / Drive plate required
BMW M60 V8 OE 11 22 1 747 843 / 1747843
BMW M60 V8 OE 11 22 1 715 646 / 1715646
Required gearbox adapter
Gearbox adapter thickness
25mm / 0.98"
PMC gearbox adapter code
F0M57-M6
F0M57-M7
ADDITIONAL INFORMATION
Set includes
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Custom Clutch fork pivot pin / Ball
