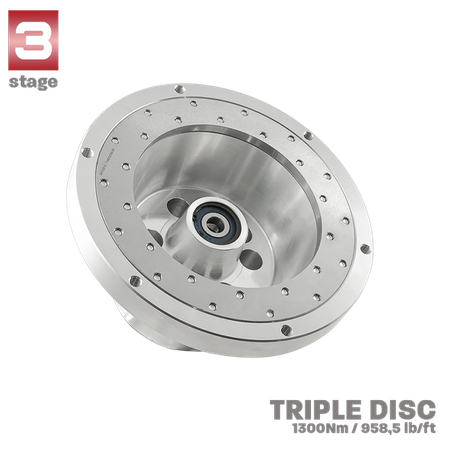

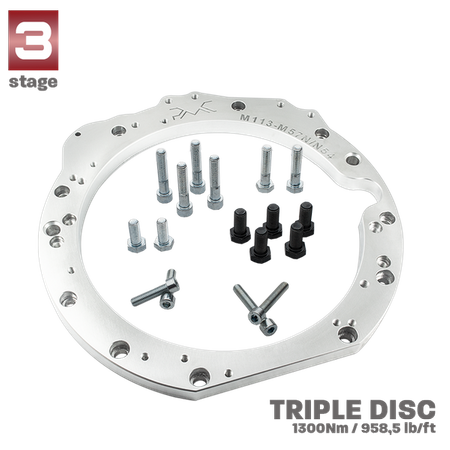

PMC Motorsport RACE STAGE 3 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

Mercedes-Benz V8 M113 - BMW M57N M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-Speed Diesel - 184mm 7.25" POT + 3x sintered disc + Pressure plate Tilton Engineering®

The adapter kit enables users connection of Mercedes-Benz V8 M113 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

• Designed in a CAD environment
• Only certified materials were used in the production process
• CNC machining
• Replaceable cast iron friction surface
• The flywheel is balanced prior to shipment

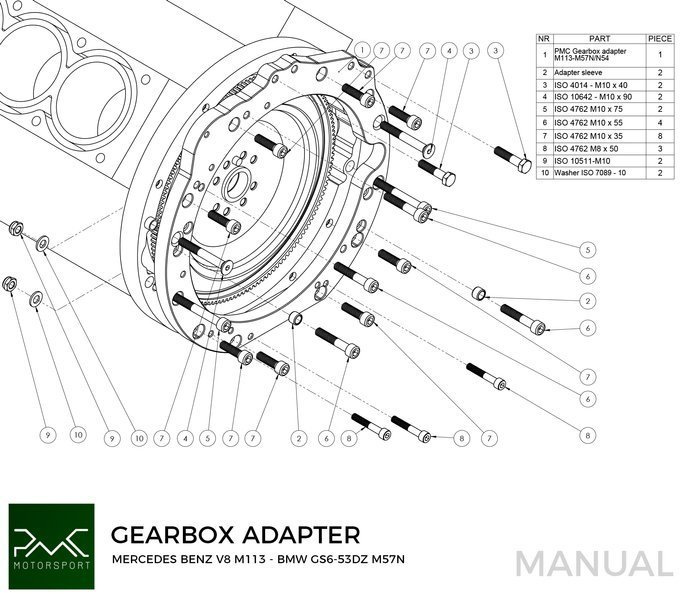

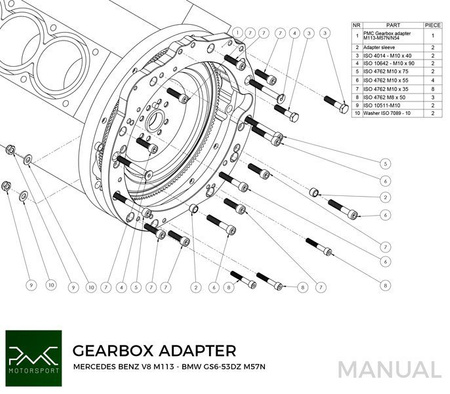

Manual

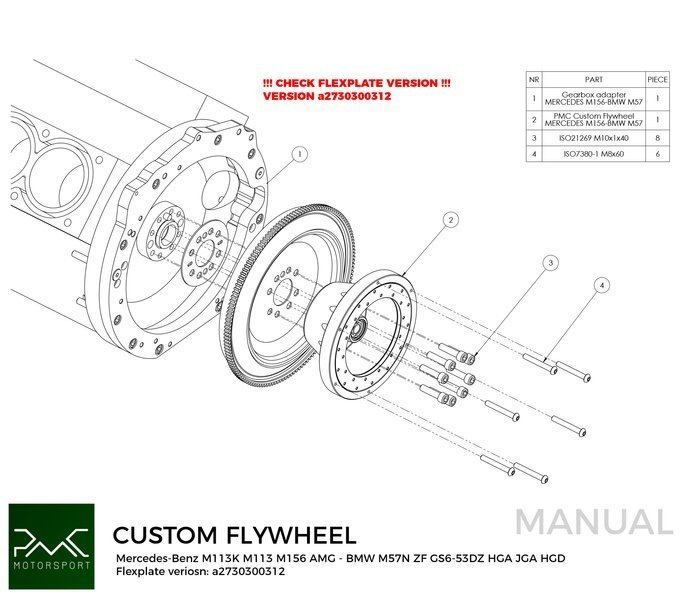

• Use the flywheel / ring gear from the automatic version
• Tighten the flywheel to the same torque as OE.
• The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
• Required adaptation of the clutch slave pump (change of the pump to a smaller one - piston diameter or shortening the pump stroke)
• Guide tube shortening required BMW OEM 23 11 7 501 714
