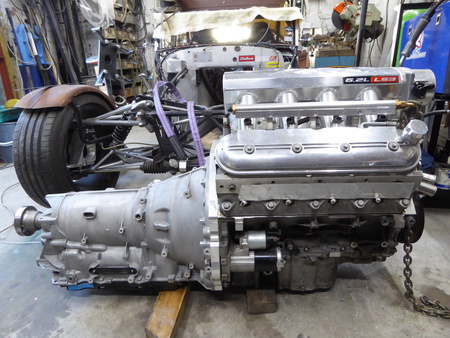

Kit adaptador GM Chevrolet LS - Jaguar Diesel ZF 8HP 8HP70
- Kit adaptador de aluminio que permite la conexión (cambio / conversión) de los motores GM Chevrolet LS LS1 LS3 LS6 LS7 LT1 LT4 LSA LSX Vortec con una caja de cambios automática Jaguar ZF 8HP

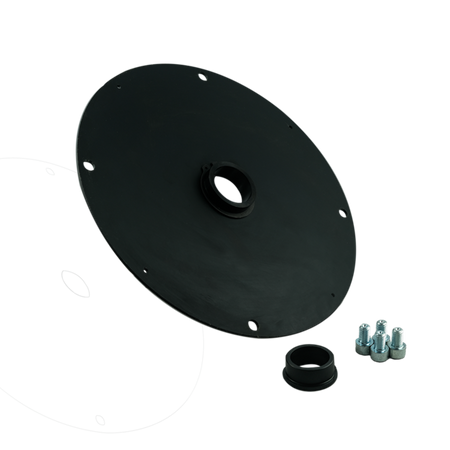

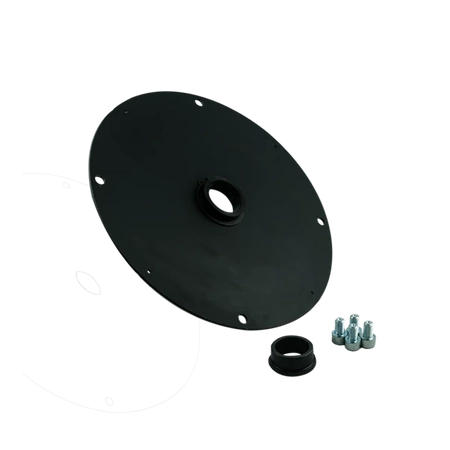

En el kit
PMC Motorsport Kit adaptador caja de cambios (set / juego de conversión) GM Chevrolet V8 LS - Jaguar Diesel ZF 8HP 8HP70 (Convertidor de par de 4 pernos)
Kit adaptador de aluminio que permite la conexión (cambio / conversión) de los motores GM Chevrolet LS LS1 LS3 LS6 LS7 LT1 LT4 LSA LSX Vortec con una caja de cambios automática Jaguar ZF 8HP
¿Por qué PMC Motorsport?
Experiencia. Miles de adaptadores fabricados y clientes satisfechos en todo el mundo. Los adaptadores de PMC Motorsport se utilizan tanto en vehículos de uso diario como en proyectos profesionales destinados al automovilismo competitivo.
Profesionalismo. Desde el diseño hasta la implementación, nuestras piezas pasan por un proceso exhaustivo. Cada componente para el cual producimos piezas se mide utilizando máquinas de medición por coordenadas y escáneres 3D. Los prototipos se someten a numerosas pruebas para eliminar cualquier posible problema en su uso. Utilizamos solo materiales certificados de proveedores confiables en nuestra producción. Contamos con un moderno parque de máquinas CNC y personal experimentado.
Calidad. Priorizamos la calidad en las piezas que fabricamos desde el principio. Después de cada etapa de producción, el componente se somete a inspección. Cada subconjunto que producimos está grabado con un número de serie de producción. Nuestra calidad está confirmada por el certificado ISO PN-EN ISO 9001:2015.
Alineación perfecta. Nuestros adaptadores garantizan una alineación perfecta entre el motor y la caja de cambios.
Hecho en la UE. Todo nuestro departamento de producción y diseño está ubicado dentro de la Unión Europea.
Compra de repuestos. Ofrecemos cada componente de nuestro kit por separado. Si necesita un repuesto, contáctenos a office@pmcmotorsport.com.
Envío internacional rápido. Enviamos nuestros productos a todos los países del mundo. Los precios de envío a países de la Unión Europea (excluyendo islas) y al Reino Unido se calculan automáticamente. Para países que no estén en la lista, nuestro equipo proporcionará el costo de envío, luego de realizar el pedido.
0% de IVA - para clientes con IVA europeo activo
Asistencia en la selección y soporte posventa. El equipo de PMC Motorsport le ayudará a elegir el producto adecuado. En caso de dudas durante el montaje, brindamos soporte técnico. Puede comunicarse con nosotros a través de Facebook, Instagram o correo electrónico:office@pmcmotorsport.com.
Lista de motores: |
|
Lista de cajas de cambio automáticas ZF 8HP: |
|
Instrucciones
¡¡¡ Las piezas PMC Motorsport están diseñadas para el uso en Motorsport, en circuitos de carreras. Las piezas deben ser montadas por profesionales utilizando herramientas apropiadas en talleres adecuados !!!

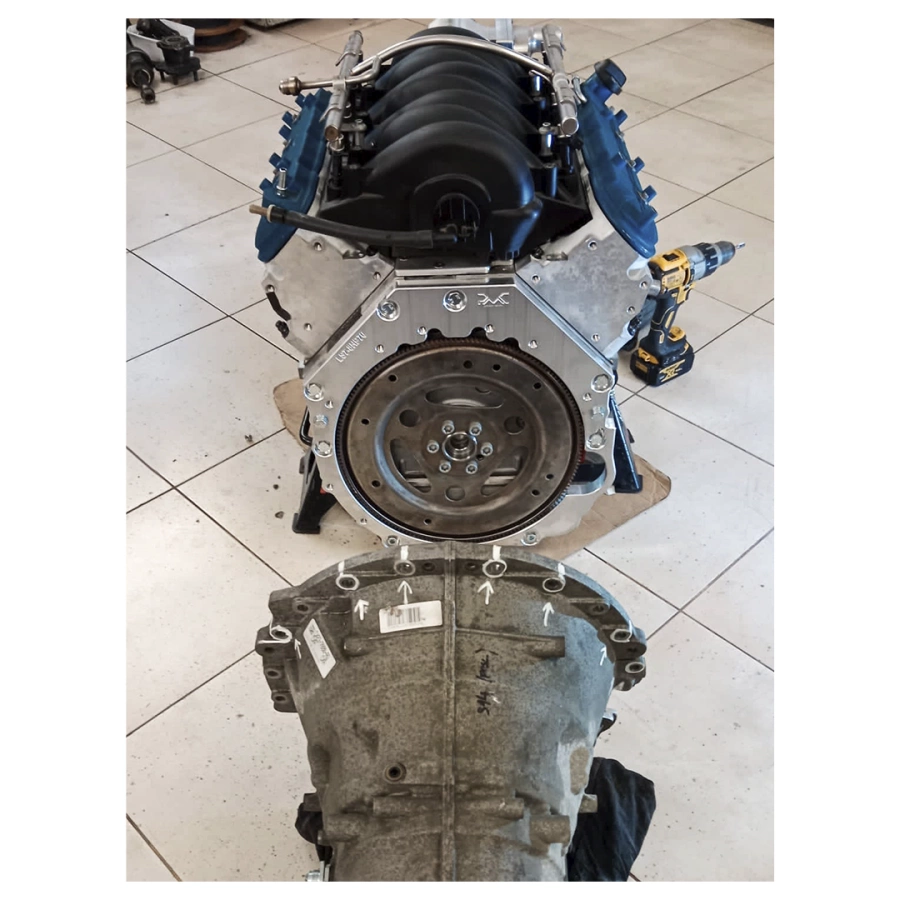

El manual de instalación incluye un diagrama básico para montar el motor con la caja de cambios fuera del vehículo.

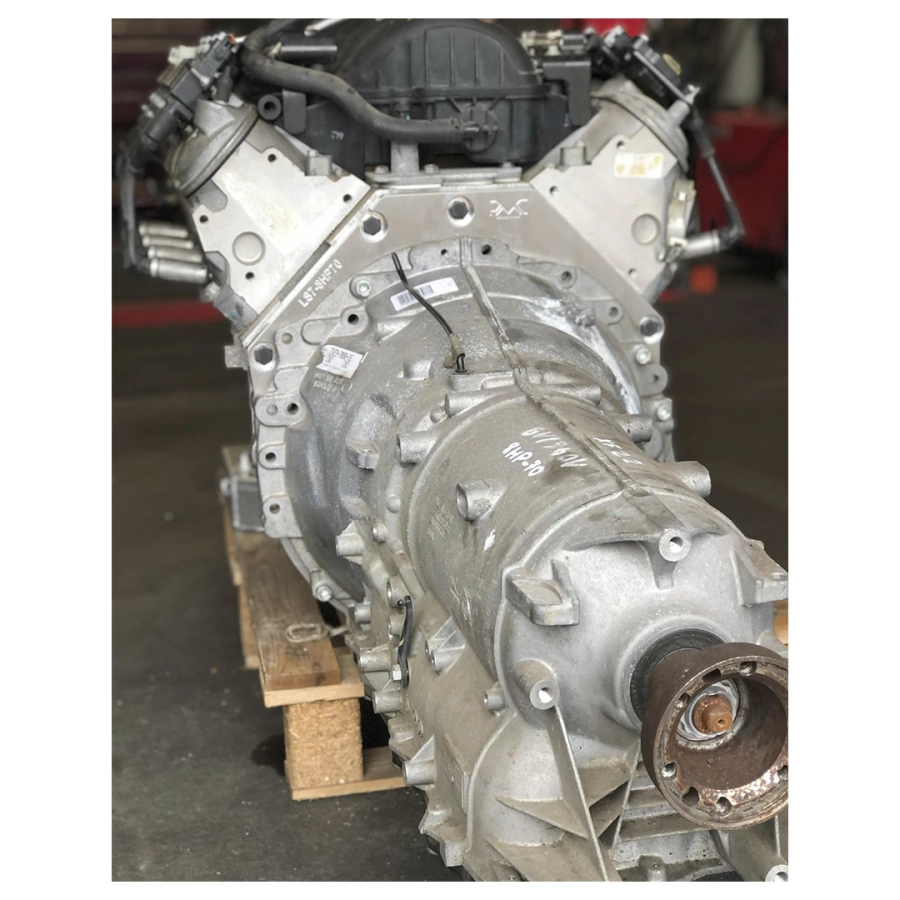

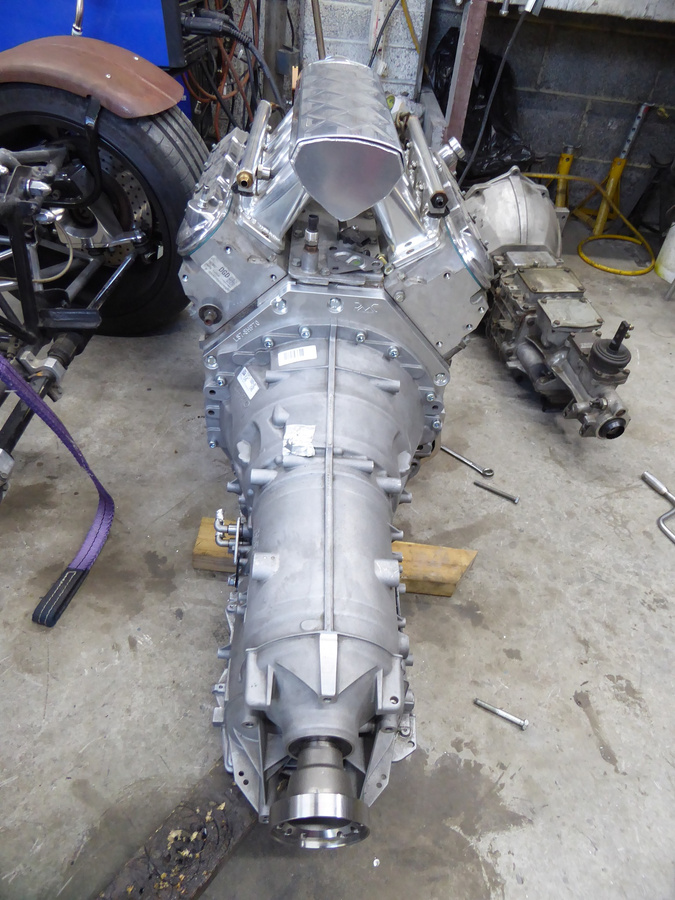

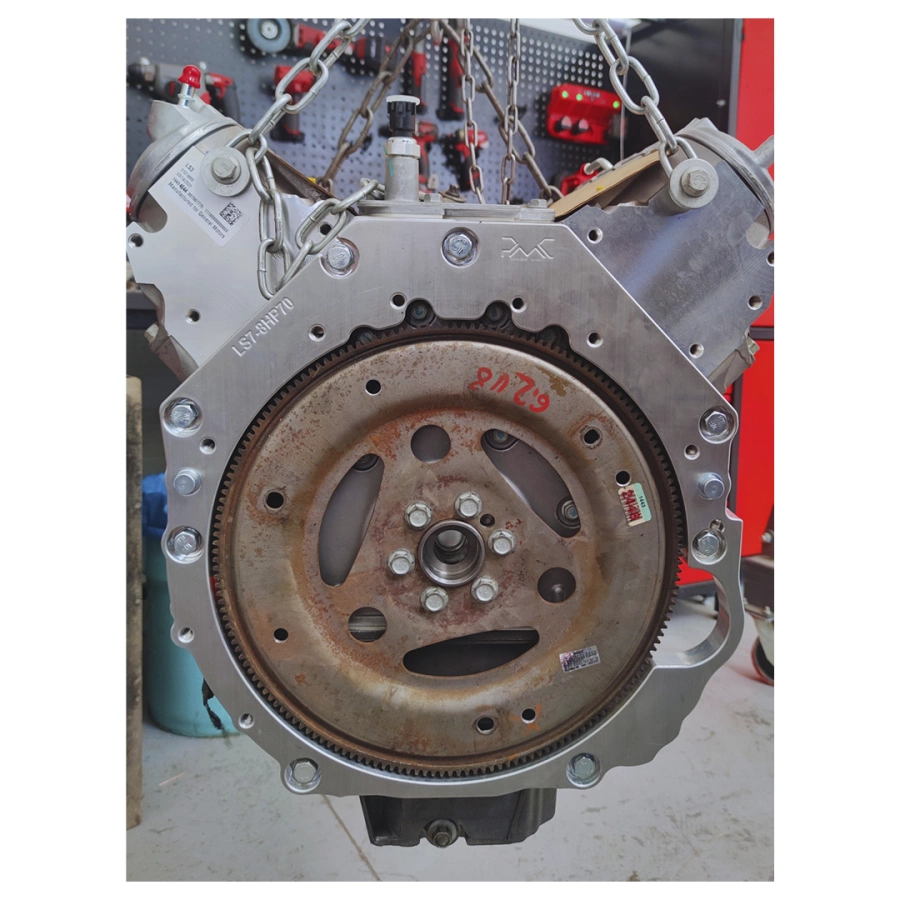

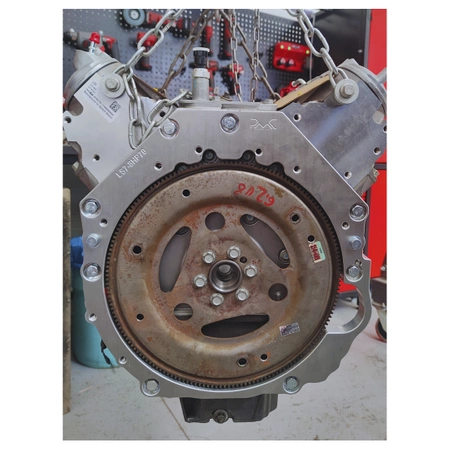

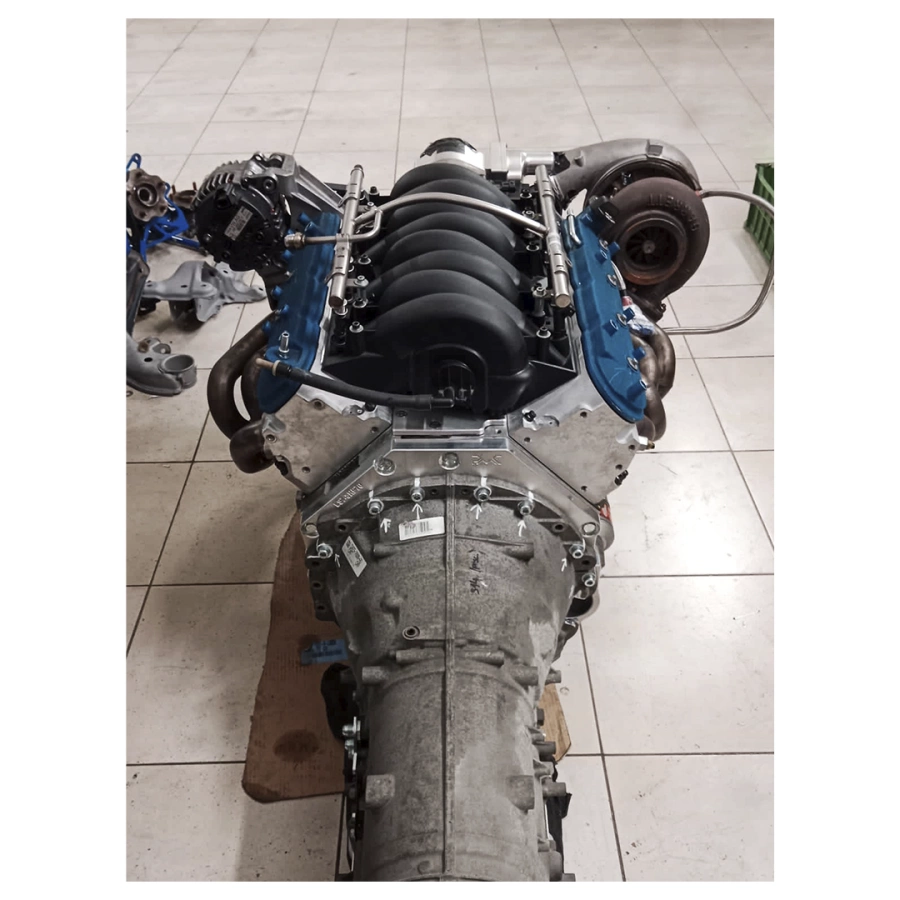

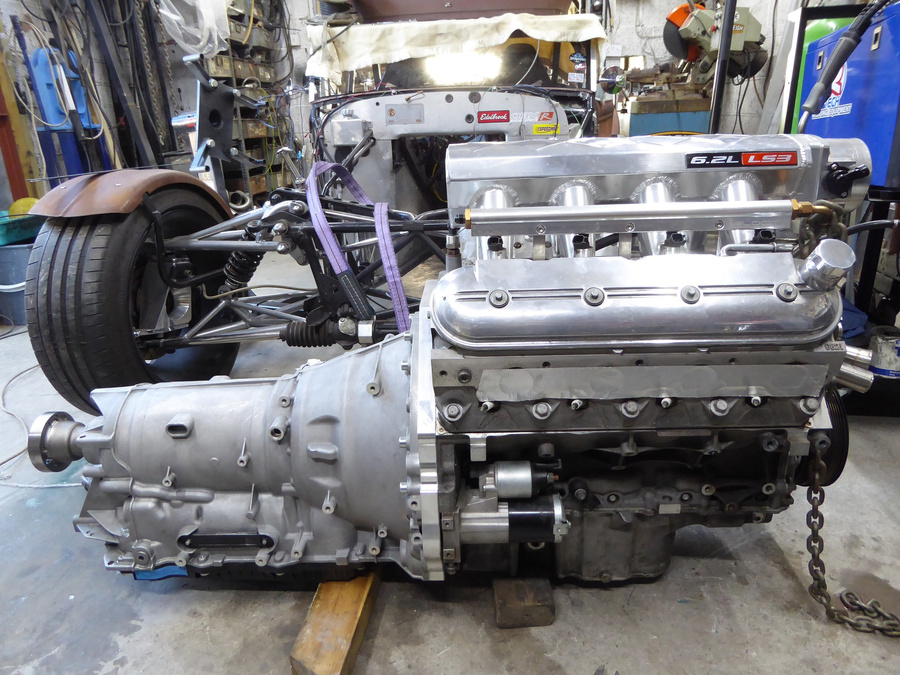

El adaptador de la caja de cambios se monta primero en el motor
El adaptador de la caja de cambios y el volante de inercia están fabricados en aluminio y hierro fundido y son totalmente reciclables.
GM 5.7 Liter V8 Small Block LS1 Engine
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
Predecessor: LT1 / Gen 2 Small Block
Successor: LS6
;Assembly: Saint Catherines, Ontario, Canada
Specifications
Type: | 5.7L V8 Gen III Small Block |
Engine Orientation: | Longitudinal |
Engine Mass (kg/lbs): | 177 / 390 |
Displacement: | 5,665cc (5.7L; 346ci) |
Compression ratio: | 10.1.:1 |
Bore x stroke: | 99.06 x 91.948mm |
Bore Center (mm): | 111.76 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Fuel system: | Sequential fuel injection |
Recommended fuel: | Regular Unleaded |
Emissions controls | |
Catalytic converter | |
Positive crankcase ventilation | |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Steel |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: |
Forged Powder Metal |
Vehicle Applications
GM Chevrolet
- Chevrolet Corvette 1997-2000
- Chevrolet Corvette 2001-2004
- Chevrolet Camaro Z28 1998-2000
- Chevrolet Camaro SS 1998-2000
- Chevrolet Camaro Z28 2001-2002
- Chevrolet Camaro SS 2001-2002
Pontiac
- Pontiac Firebird Formula 1998-2000
- Pontiac Firebird Trans Am 1998-2000
- Pontiac Firebird Formula 2001-2002
- Pontiac Firebird Trans Am 2001-2002
Holden
- Holden VT.II Commodore, VT.II Calais 1999–2000
- Holden Statesman, Caprice 1999–2003
- Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
- Holden Monaro 2001–2002
- Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
- Holden Berlina, Ute S, One Tonner S 2003-2004
- Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
- Holden Monaro 2003-2004
- Holden Statesman 2003-2004
- Holden Adventra 2003-2005
- Holden VY.II Crewman 2003-2005
- Holden Berlina, Calais, One Tonner, Crewman 2004-2005
- Holden Statesman 2004-2005
- Holden Commodore SV8 and SS, Ute SS 2004-2005
- Holden Caprice 2004-2005
- Holden Monaro 2004-2005
- Holden Adventra 2005-2006
- Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
- Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
- Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
- Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
- Holden Special Vehicles HSV V2.II GTO Coupe
- Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
- Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
- Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
- Holden Special Vehicles HSV V2 Coupe 4 2004
- Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
- Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
- Holden Special Vehicles – Callaway HSV VT.II GTS 2000
- Holden Special Vehicles – Callaway HSV VX GTS 2000–2001
- Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
- Holden Special Vehicles – Callaway VX SV300 2001–2002
- Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
- Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
Type: | 6.0L Gen IV V8 Small Block |
Displacement: | 6.0L (5965cc / 364 ci) |
Engine orientation: | Longitudinal |
Compression ratio: | 10.9:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | Saint Catherines, Ontario, Canada |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 101.6 x 92mm |
Fuel system: | Sequential Port Fuel Injection |
Fuel type: | Premium Recommended |
Maximum Engine Speed: | 6500 RPM |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Cast Iron |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Additional Features | |
Active Fuel Management | |
Electronic throttle control | |
Oil Life Monitor System | |
58x crank timing | |
Emissions Controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
Displacement: | 5.7L / 346 cu. in. |
---|---|
Aspiration: | Natural |
Introduced: | 2001 model year |
Discontinued: | 2005 |
Predecessor: | LS1 / Gen 3 Small Block |
Successor: | LS2 |
Assembly: | Saint Catherines, Ontario, Canada |
Specifications
Type: | 5.7L Gen III V8 Small Block |
Displacement: | 5.7L (5670cc / 346 ci) |
Engine orientation: | Longitudinal |
Engine Mass: 458 pounds / 207.745 kilograms | |
Compression ratio: | 10.5:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | St. Catherine's, Ontario, Canado |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 99 x 92mm |
Fuel system: | Sequential Port-fuel Injection |
Fuel type: | Premium Recommended |
Maximum Engine Speed: | 6500 RPM |
Emissions controls | |
Catalytic converter | |
Positive crankcase ventilation | |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Cast Iron |
Main bearing caps: | Steel |
Crankshaft: | Cast Iron |
Camshaft: | Billet Steel |
Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
Displacement: | 7.0L / 427 cu. in. |
---|---|
Aspiration: | Natural |
Introduced: | 2006 model year |
Discontinued: | 2015 |
Predecessor: | LS2 / Gen 3 Small Block |
Successor: | – |
Assembly: | Wixom, Michigan |
Specifications
Type: | 7.0L Gen IV V8 Small Block |
Displacement: | 7008 cc (427.6 ci) |
Engine Orientation: | Longitudinal |
Compression ratio: | 11.0:1 |
Valve configuration: | Overhead valves |
Valves per cylinder: | 2 |
Assembly site: | Performace Build Center in Wixom, Michigan |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 104.8 X 101.6 |
Bore Center (mm): | 111.76 |
Bore Area (cm2) (total engine bore area): | 689.75 |
Fuel system: | Sequential fuel injection |
Fuel Type: | Premium Fuel required |
Engine Mass (kg/lbs): | 206 / 454 |
Materials | |
Block: | Cast aluminum |
Cylinder head: | Cast aluminum |
Intake manifold: | Composite |
Exhaust manifold: | Stainless Steel |
Main bearing caps: | Forged steel |
Crankshaft: | Forged 4140 steel |
Camshaft: | Hollow steel |
Connecting rods: | Forged Titanium |
Additional features | |
Extended life spark plugs | |
Titanium Intake Valves | |
Extended life coolant | |
Oil level sensor | |
Oil Life System | |
Emissions controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
GM 6.2 Liter V8 Supercharged LSA Engine
Displacement: | 6.2L / 376 cu. in. |
---|---|
Aspiration: | Supercharged |
Introduced: | 2009 model year |
Discontinued: | 2015 |
Predecessor: | LS3 / Gen IV Small Block |
Successor: | LT4 / Gen V Small Block |
Assembly: | St. Catharines, Ontario, Canada |
Specifications
Type: | 6.2L Gen IV V8 Small Block |
Displacement: | 6162 cc (376 ci) |
Engine Orientation | Longitudinal |
Compression ratio: | 9.1:1 |
Valve configuration: | Overhead valves (2 valves per cylinder) |
Assembly site: | Silao, Mexico |
Valve lifters: | Hydraulic roller |
Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
Bore x stroke: | 103.25 x 92 mm |
Fuel system: | Sequential fuel injection |
Fuel Type: | Premium required |
Maximum Engine Speed: | 6200 RPM |
Materials | |
Block: | Cast aluminum |
Cylinder head: | A356-T6 rotocast cast aluminum |
Intake manifold: | Cast aluminum |
Exhaust manifold CTS: | High silicon / high moly cast iron |
Exhaust manifold Camaro: | Cast stainless steel |
Main bearing caps: | Nodular Iron |
Crankshaft: | Forged steel |
Camshaft: | Hollow steel |
Connecting rods: | Forged powder metal |
Additional features | |
1.9 L/rev Supercharger | |
Integrated single coolant to air intercooler | |
Piston oil spray cooling | |
Direct mount ignition coils | |
Emissions controls | |
Catalytic converter | |
Three-way catalyst | |
Positive crankcase ventilation | |
Valves per cylinder | 2 |
Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
