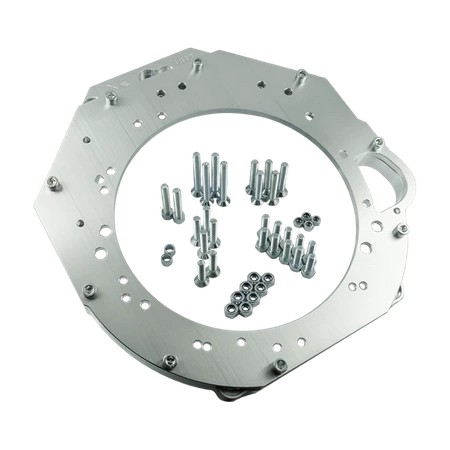

Kit adaptador GM Chevrolet LS - BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51
- PMC Motorsport Kit adaptador caja de cambios (set / juego de conversión) GM Chevrolet V8 LS - BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75
En el kit
PMC Motorsport Kit adaptador caja de cambios (set / juego de conversión) GM Chevrolet V8 LS - BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75
Kit de embrague de aluminio que permite la conexión (cambio / conversión) de los motores GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 Vortec con una caja de cambios automática ZF 8HP (ZF Friedrichshafen) de BMW.
¿Por qué las Cajas de Cambios BMW ZF/Getrag?
Disponibilidad y precio. La disponibilidad de millones de vehículos producidos en todo el mundo garantiza un fácil acceso a repuestos. Las piezas y las cajas de cambios completas están disponibles fácilmente en centros de servicio autorizados y en el mercado secundario.
Durabilidad y fiabilidad. Las cajas de cambios BMW ZF/Getrag se han utilizado con éxito tanto en el automovilismo amateur como profesional durante muchos años. Pueden manejar un par muy alto (algunos modelos superan los 1000 Nm) mientras garantizan una gran fiabilidad. Son perfectas para intercambios en proyectos de alta potencia destinados al uso diario.
Velocidad y conveniencia. Optar por las cajas de cambios automáticas de última generación, como ZF 8HP o Getrag DCT DKG, proporciona tiempos de cambio de marcha ultrarrápidos (0,2 segundos), mejorando tanto la velocidad como la conveniencia.
¿Por qué PMC Motorsport?
Experiencia. Miles de adaptadores fabricados y clientes satisfechos en todo el mundo. Los adaptadores de PMC Motorsport se utilizan tanto en vehículos de uso diario como en proyectos profesionales destinados al automovilismo competitivo.
Profesionalismo. Desde el diseño hasta la implementación, nuestras piezas pasan por un proceso exhaustivo. Cada componente para el cual producimos piezas se mide utilizando máquinas de medición por coordenadas y escáneres 3D. Los prototipos se someten a numerosas pruebas para eliminar cualquier posible problema en su uso. Utilizamos solo materiales certificados de proveedores confiables en nuestra producción. Contamos con un moderno parque de máquinas CNC y personal experimentado.
Calidad. Priorizamos la calidad en las piezas que fabricamos desde el principio. Después de cada etapa de producción, el componente se somete a inspección. Cada subconjunto que producimos está grabado con un número de serie de producción. Nuestra calidad está confirmada por el certificado ISO PN-EN ISO 9001:2015.
Alineación perfecta. Nuestros adaptadores garantizan una alineación perfecta entre el motor y la caja de cambios.
Hecho en la UE. Todo nuestro departamento de producción y diseño está ubicado dentro de la Unión Europea.
Compra de repuestos. Ofrecemos cada componente de nuestro kit por separado. Si necesita un repuesto, contáctenos a office@pmcmotorsport.com.
Envío internacional rápido. Enviamos nuestros productos a todos los países del mundo. Los precios de envío a países de la Unión Europea (excluyendo islas) y al Reino Unido se calculan automáticamente. Para países que no estén en la lista, nuestro equipo proporcionará el costo de envío, luego de realizar el pedido.
0% de IVA - para clientes con IVA europeo activo
Asistencia en la selección y soporte posventa. El equipo de PMC Motorsport le ayudará a elegir el producto adecuado. En caso de dudas durante el montaje, brindamos soporte técnico. Puede comunicarse con nosotros a través de Facebook, Instagram o correo electrónico: office@pmcmotorsport.com.
|
|
Lista de cajas de cambios manuales BMW (Gasolina): |
|
Instrucciones
GM 5.7 Liter V8 Small Block LS1 Engine
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
Predecessor: LT1 / Gen 2 Small Block
Successor: LS6
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 5.7L V8 Gen III Small Block |
| Engine Orientation: | Longitudinal |
| Engine Mass (kg/lbs): | 177 / 390 |
| Displacement: | 5,665cc (5.7L; 346ci) |
| Compression ratio: | 10.1.:1 |
| Bore x stroke: | 99.06 x 91.948mm |
| Bore Center (mm): | 111.76 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Fuel system: | Sequential fuel injection |
| Recommended fuel: | Regular Unleaded |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: |
Forged Powder Metal |
Vehicle Applications
- 1997-2000 Chevrolet Corvette
- 2001-2004 Chevrolet Corvette
- 1998-2000 Chevrolet Camaro Z28
- 1998-2000 Chevrolet Camaro SS
- 2001-2002 Chevrolet Camaro Z28
- 2001-2002 Chevrolet Camaro SS
- 1998-2000 Pontiac Firebird Formula
- 1998-2000 Pontiac Firebird Trans Am
- 2001-2002 Pontiac Firebird Formula
- 2001-2002 Pontiac Firebird Trans Am
- 1999–2000 Holden VT.II Commodore, VT.II Calais
- 1999–2003 Holden Statesman, Caprice
- 2000–2002 Holden VX Commodore, VX Berlina, VX Calais, VU Ute
- 2001–2002 Holden Monaro
- 2002-2003 Holden Commodore SV8 and SS, Ute S and SS, Monaro
- 2003-2004 Holden Berlina, Ute S, One Tonner S
- 2003-2004 Holden Commodore SV8 and SS, Calais, Ute SS, Caprice
- 2003-2004 Holden Monaro
- 2003-2004 Holden Statesman
- 2003-2005 Holden Adventra
- 2003-2005 Holden VY.II Crewman
- 2004-2005 Holden Berlina, Calais, One Tonner, Crewman
- 2004-2005 Holden Statesman
- 2004-2005 Holden Commodore SV8 and SS, Ute SS
- 2004-2005 Holden Caprice
- 2004-2005 Holden Monaro
- 2005-2006 Holden Adventra
- 1999–2000 Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange
- 2000-2002 Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange
- 2001-03 Holden Special Vehicles HSV V2.I GTO Coupe
- 2002-2003 Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo
- 2003 Holden Special Vehicles HSV V2.II GTO Coupe
- 2003-2004 Holden Special Vehicles HSV V2.III GTO Coupe
- 2003-2004 Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange
- 2003-2005 Holden Special Vehicles HSV Y-Series Avalanche
- 2004 Holden Special Vehicles HSV V2 Coupe 4
- 2004-2005 Holden Special Vehicles HSV Z-Series Coupe 4
- 2004-2005 Holden Special Vehicles HSV Y-Series Avalanche XUV
- 2000 Holden Special Vehicles – Callaway HSV VT.II GTS
- 2000–2001 Holden Special Vehicles – Callaway HSV VX GTS
- 2000-2001 Holden Special Vehicles – Callaway HSV VX Senator 300
- 2001–2002 Holden Special Vehicles – Callaway VX SV300
- 2001–2004 Holden Special Vehicles – Callaway HSV V2 GTS Coupe
- 2002–2004 Holden Special Vehicles – Callaway HSV Y-Series GTS
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
GM 6.2 Liter V8 Supercharged LSA Engine
| Displacement: | 6.2L / 376 cu. in. |
|---|---|
| Aspiration: | Supercharged |
| Introduced: | 2009 model year |
| Discontinued: | 2015 |
| Predecessor: | LS3 / Gen IV Small Block |
| Successor: | LT4 / Gen V Small Block |
| Assembly: | St. Catharines, Ontario, Canada |
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Displacement: | 6162 cc (376 ci) |
| Engine Orientation | Longitudinal |
| Compression ratio: | 9.1:1 |
| Valve configuration: | Overhead valves (2 valves per cylinder) |
| Assembly site: | Silao, Mexico |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92 mm |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6200 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | A356-T6 rotocast cast aluminum |
| Intake manifold: | Cast aluminum |
| Exhaust manifold CTS: | High silicon / high moly cast iron |
| Exhaust manifold Camaro: | Cast stainless steel |
| Main bearing caps: | Nodular Iron |
| Crankshaft: | Forged steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| 1.9 L/rev Supercharger | |
| Integrated single coolant to air intercooler | |
| Piston oil spray cooling | |
| Direct mount ignition coils | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Valves per cylinder | 2 |
| Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
