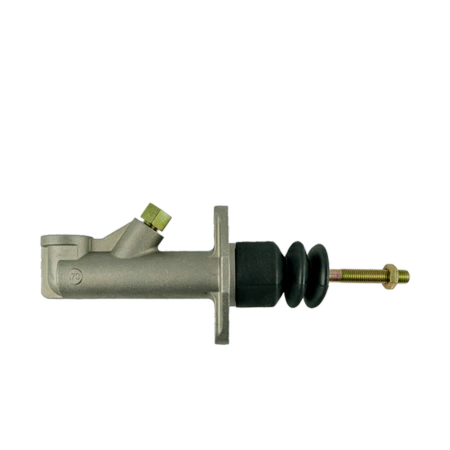

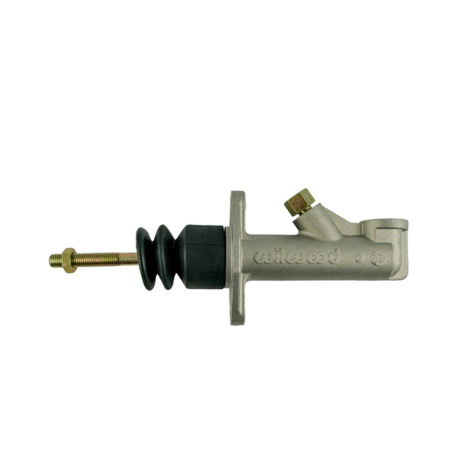

Wilwood Compact Brake / Clutch Master Cylinder 0,750" (260-6089)
- Compact master cylinders with external reservoirs are the ideal solution for racing drivers, small "open wheel" cars, and any custom projects where space for the cylinder and fluid reservoir is limited.
Wilwood Compact Brake / Clutch Master Cylinder 0,750" (260-6089)
Compact master cylinders with external reservoirs are the ideal solution for racing drivers, small "open wheel" cars, and any custom projects where space for the cylinder and fluid reservoir is limited.
These aluminum cylinders are designed to work with both direct-mount (removable) and remote-mount (external) reservoirs. The product is available in four bore (piston) diameters: from 0.625" to 0.813", with a full stroke of 1.4". This allows for handling short pedal ratios, small brake calipers, and hydraulic clutch control systems in applications with limited mounting space.
Brand
Symbol
260-6089

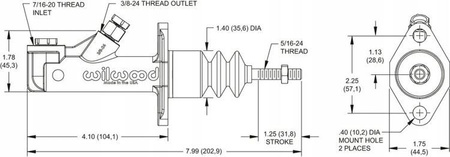

WYMIARY GŁÓWNEGO CYLINDRA
Średnica cylindra
0,750"
Rozmiar otworu
3/4"
Powierzchnia (in²)
0,440
Skok tłoka
1.40
Pojemność (cu in)
0.61
ADDITIONAL INFORMATION
Thread length[mm]
35,6mm / 1,4'
Długość całkowita (in)
7,97"
Długość kołnierza do końca (in)
4,10"
Rozmiar wejścia (in)
7/16-20
Rozmiar wyjścia 1 (in)
3/8-24
Gwint wyjścia (in)
3/8-24 IF Żenski
