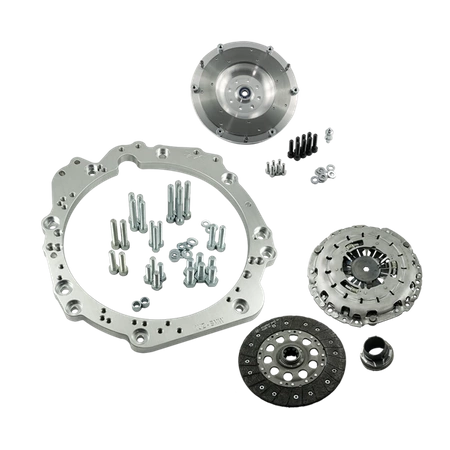

Stage 1 Toyota 1UZ 3UZ - 5-speed manual gearbox BMW M57 ZF GS5-39DZ - 240mm / 9.45"

PMC Motorsport Stage 1 – clutch kit Toyota Lexus V8 UZ 1UZ 3UZ – 5-speed manual BMW M57 ZF GS5-39DZ E39 525d 530d / E46 330d – 240 mm / 9.45" – Sachs XTend 3000 951 877 – max. 650 Nm / 479 lb⋅ft

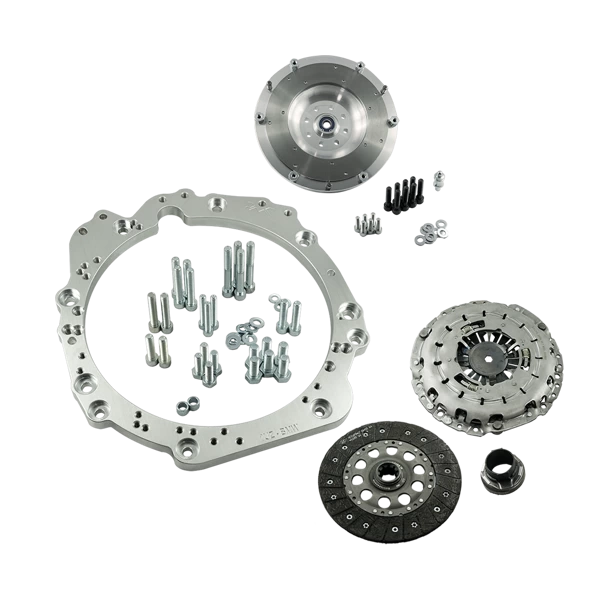

Complete Stage 1 clutch kit enabling the connection (swap / conversion) of the Toyota / Lexus V8 UZ 1UZ-FE 3UZ-FE engine with a 5-speed manual gearbox ZF GS5-39DZ used in BMW M57 diesel engines (E39 525d / 530d, E46 330d). The kit includes a gearbox adapter, custom PMC Motorsport flywheel, and Sachs XTend 3000 951 877 clutch kit (BMW M57) – self-adjusting pressure plate, organic clutch disc with 28x35-10N spline, and release bearing. The maximum torque capacity of the kit is 650 Nm (479 lb⋅ft). The durable GS5-39DZ gearbox (1000 Nm+) combined with the Stage 1 kit is an ideal solution for daily driving, drift, and amateur or professional motorsport.

Planning a Toyota / Lexus V8 UZ 1UZ 3UZ swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic gearbox with a manual gearbox from BMW and unlock new possibilities.

PMC Motorsport adapters are not only a conversion from automatic to manual gearbox in cars with the Toyota / Lexus V8 UZ engine, but also support in completing a UZ swap in BMW and other vehicles such as Nissan or Mazda.

Aluminum gearbox adapter designed to simplify gearbox installation as much as possible, avoiding radical actions such as cutting off the entire bellhousing – only preparing the starter motor hole remains. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction surface, checked and balanced before shipment. Flywheel designed for a 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE). Flywheel weight: 4.8 kg (10.6 lbs), adapter thickness: 20 mm (0.78").

PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal coaxiality of the engine and gearbox, which is crucial for drive system durability.

Additional information

Installation instructions

To install the flywheel, it is necessary to use the automatic version ring gear from Toyota / Lexus OE 32101-50010 and a 4.5 mm spacer washer between the engine block and ring gear, Toyota OE 32116-50010 (not included). Torque the flywheel to the crankshaft using the supplied bolts to 72 Nm (53.1 lb⋅ft) using threadlocker. Use the original Toyota UZ (OE) starter motor for adapter installation. The release bearing is included in the Sachs XTend kit; clutch fork and slave cylinder are not included – they must be selected according to your gearbox.

Frequently asked questions

Which engines does this kit fit?

For Toyota / Lexus V8 engines from the UZ family: 1UZ-FE (e.g. Lexus LS 400, SC 400, GS 400, Toyota Celsior, Crown, Soarer, Aristo) and 3UZ-FE (e.g. Lexus LS 430, GS 430, SC 430, Toyota Soarer, Crown Majesta).

Which gearboxes fit the kit?

For the 5-speed manual gearbox ZF GS5-39DZ from BMW with the M57 diesel engine in versions THBA, THBC, THBG, THBK, and THBM (E39 525d / 530d, E46 330d). The gearbox features a 28x35-10N spline.

Do I need to cut the gearbox bellhousing?

No. The adapter is designed to avoid cutting the bellhousing – only the starter motor opening needs to be prepared.

What additional parts do I need to buy for installation?

Automatic version flywheel (ring gear) Toyota / Lexus UZ, OE 32101-50010, and a 4.5 mm spacer washer between the engine block and ring gear, Toyota OE 32116-50010. You also need a clutch fork and slave cylinder dedicated to your gearbox, as well as an original Toyota UZ (OE) starter motor. These parts are not included in the kit.

Which clutch is included in the kit?

Sachs XTend 3000 951 877 (BMW M57) with a diameter of 240 mm (9.45"): self-adjusting pressure plate, organic clutch disc with 28x35-10N spline (10 teeth) for the ZF GS5-39DZ gearbox, and a release bearing.

What torque capacity does the Stage 1 kit support?

The maximum torque capacity of the kit is 650 Nm (479 lb⋅ft).

Can I use a different clutch?

Yes. The PMC Motorsport flywheel is designed for a 240 mm BMW OE type pressure plate – from BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also frequently used – custom pressure plates must fit the BMW OE flywheel (M57 / M57N / M57N2 / N54 / B58). For the GS5-39DZ gearbox, use a 240 mm clutch disc with a 28x35-10N spline.

Which starter motor should be used?

Original Toyota UZ (OE) starter motor.

What does the kit include?

Aluminum gearbox adapter with mounting bolts, custom PMC Motorsport flywheel with replaceable friction plate, crankshaft bolts, pressure plate mounting bolts, clutch fork pivot pin – replacement for BMW OE 21 51 1 223 328 – and Sachs XTend 3000 951 877 clutch kit (pressure plate, disc, release bearing). Clutch fork and slave cylinder are not included in the kit.

Can I buy only the adapter or only the flywheel?

Yes. Every element of the kit is available separately – including the adapter with flywheel only, without the clutch.

Does the price include customs duties for shipping outside the European Union?

No. The product price and shipping quote do not include customs duties or additional fees that may apply in the recipient's country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verification via VIES) or if you are ordering with delivery outside the EU.

Are the included instructions sufficient for installation?

The instructions describe joining the engine and gearbox outside the body shell. Depending on the car, additional modifications may be needed: mounts, bushings, firewall, transmission tunnel, driveshaft length. We recommend installation by professionals.

It is worth remembering that a lightweight rigid flywheel provides uncompromised throttle response at the expense of eliminating factory damping elements. This results in a more direct drivetrain operation, which may lead to a natural increase in audible gear mechanism noise. This is a desirable characteristic in sports vehicles resulting from the rigid connection between engine and drive.
