Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)

  • PMC Motorsport Lightweight custom aluminium flywheel
  • Toyota JZ 1JZ 2JZ - MAZDA RX-7 RX7 FD - 240mm / 9.45"
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
  • Wyważenie
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • Bolt M10x1,25x40
  • Wkrętka stalowa SMART
  • Wkrętka stalowa SMART
  • FW020.00.02
  • Flywheel friction plate 240mm
  • Pierścienie osadcze sprężynujące wewnętrzne  W35
Producer: PMC MOTORSPORT
Product code: K0RX7-F-JZ
Gearbox: Mazda RX-7 FD
529,00 EUR
/ pcs.
You save -861.82% (-474.00EUR) when buying in a set.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
We care about your comfort, that's why our shop offers returns on favorable terms.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

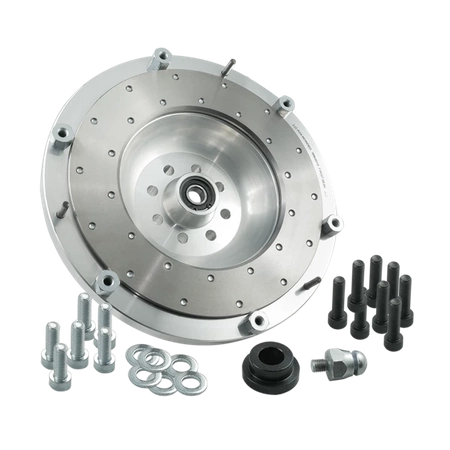

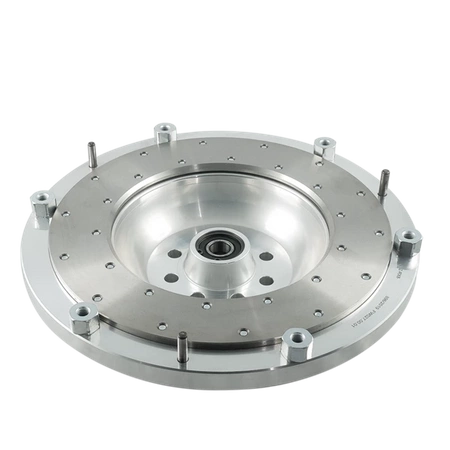

PMC Motorsport Lightweight custom aluminium flywheel

Toyota JZ 1JZ 2JZ - MAZDA RX-7 RX7 FD - 240mm / 9.45"

Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Mazda RX-7 FD gearbox.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine list:

  • Toyota 1JZ / 1JZ-FSE / 1JZ-GE / 1JZ-GTE (non VVT-i / VVT-i version)
  • Toyota 2JZ / 2JZ-FSE / 2JZ-GE / 2JZ-GTE (non VVT-i / VVT-i version)

Gearbox list:

  • Mazda RX-7 FD



Manual

  • An adapter is required to connect the engine to the gearbox.
  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.





 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Tech specs:
Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
Mazda RX-7 FD
Clutch Set
Flywheel Type:
Single Disc
Recommended clutch pressure plate:
LUK 624 3297 09
,
Sachs 3000 951 866
Diameter of the friction disc:
240mm / 9.45"
Clutch disc required:
Dedicated to your gearbox - 240mm / 9.45"
Flexplate / ring gear required:
Toyota OEM 32101-30090 | 32101-22050
ADDITIONAL INFORMATION
Set includes:
Clutch cover - pressure plate bolts kit
,
Crankshaft bolts kit
,
Flywheel centering sleeve
Material:
Aluminium
Gearbox adapter required:
F0RX7-JZ
Replaceable friction surface:
Yes
Product sales codes included:
K0RX7-F-JZ (1863)
