Adapter Kit Toyota 1JZ 2JZ - Mazda RX-7 FD - 240mm / 9.45" (F)
- PMC Motorsport Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - Mazda RX-7 FD SWAP 240mm / 9.45" (F)
PMC Motorsport Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota JZ 1JZ 2JZ - Mazda RX-7 FD SWAP 240mm / 9.45" (F)
Aluminum adapter enabling to mate (SWAP / conversion) the Toyota JZ 1JZ 2JZ engine, with the manual gearbox from Mazda RX-7
Why PMC Motorsport?
Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.
Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.
Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.
Made in EU. Our entire production and design department is located within the European Union.
Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.
Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.
0% VAT - for customers with active European VAT
Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.
Engine list:
|
- Toyota JZ (non VVT-i / VVT-i version)
- Toyota 1JZ (non VVT-i / VVT-i version)
- Toyota 2JZ (non VVT-i / VVT-i version)
|
Manual gearbox list (Petrol) :
|
|
Manual
You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).
The starter remains OE Toyota 1JZ 2JZ
Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More
- Toyota 1JZ-FSE
- Toyota 1JZ-GE
- Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More
- Toyota 2JZ-FSE
- Toyota 2JZ-GE
- Toyota 2JZ-GTE
Clutch Set
Max torque
Adapter Kit ONLY 240mm / 9.45" (single disc)
Flywheel Type
Rigid / Single-mass / Single-disc
Diameter of Friction Plate
Recommended clutch pressure plate
LUK 624 3297 09
Sachs 3000 951 866
Sachs 3000 951 821
Clutch disc
from the clutch kit LUK 624 3297 09 OE LUK 324 0430 10
From the clutch kit Sachs 3000 951 866
From the clutch kit Sachs 3000 951 821
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Gearbox adapter thickness
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
Replaceable friction surface

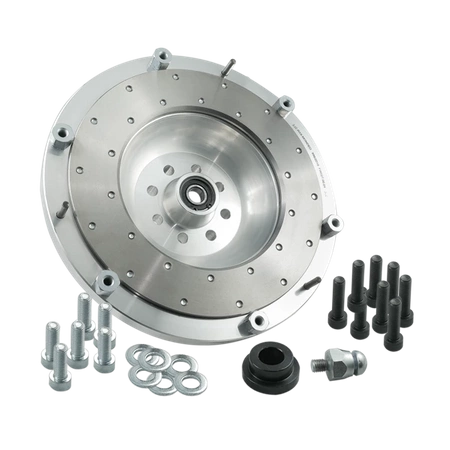

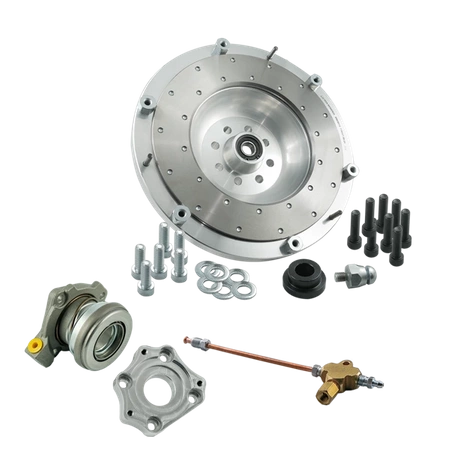

Set includes

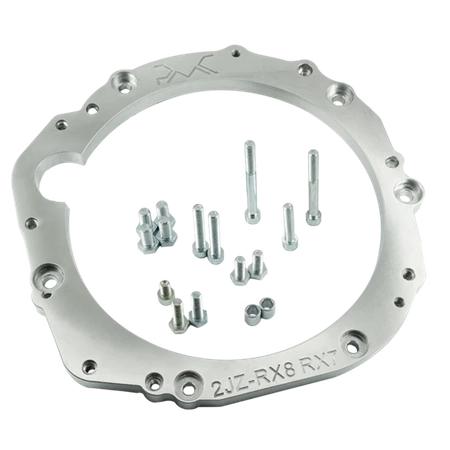

Aluminium gearbox adapter
Gearbox adapter bolts

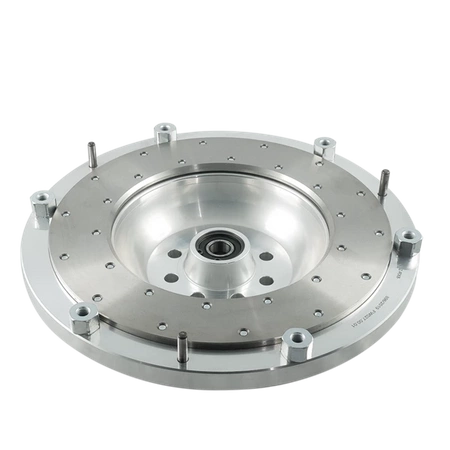

Custom Flywheel
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Central slave cylinder
Pipe and tee
Aluminium adapter for the central slave cylinder
Product sales codes included
F0RX7-JZ (1866)
K0RX7-F-JZ (1863)
