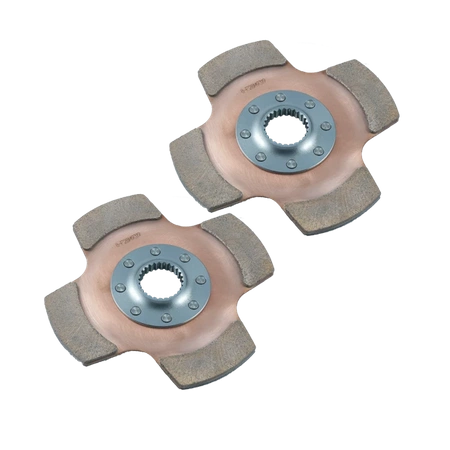

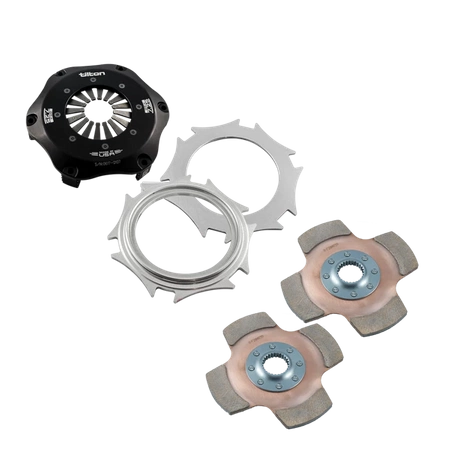

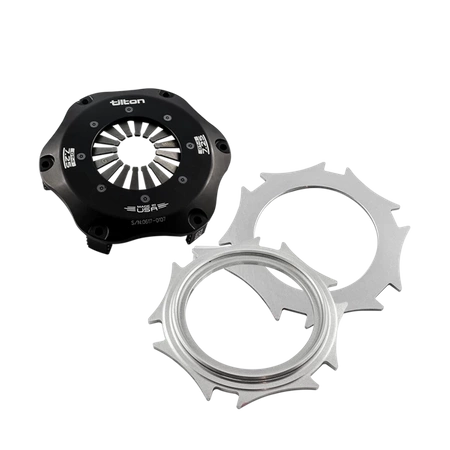

![Clutch Disc Pack Tilton 64185-8-VV-55 BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [184mm / 7.25"]](/hpeciai/ecf12db2e869a7083d5bb3ef1df6f9a0/eng_pl_Clutch-Disc-Pack-Tilton-64185-8-VV-55-BMW-M57N-M57N2-N57-N54-B57-B58-32-5x35-26N-184mm-7-25-1754_1.png)

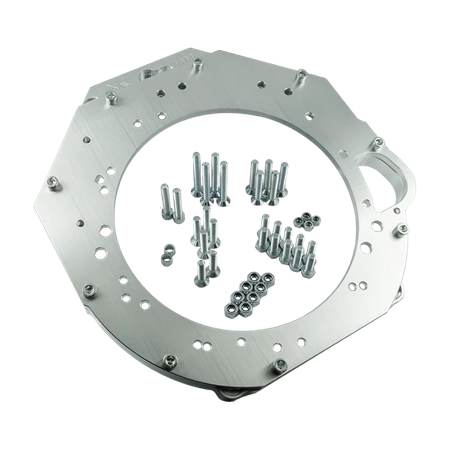

RACE STAGE 2 GM Chevrolet V8 LS - BMW M57N2 GS6-53DZ HGU HGK / N54 GS6-53BZ - 184mm / 7.25" (P)

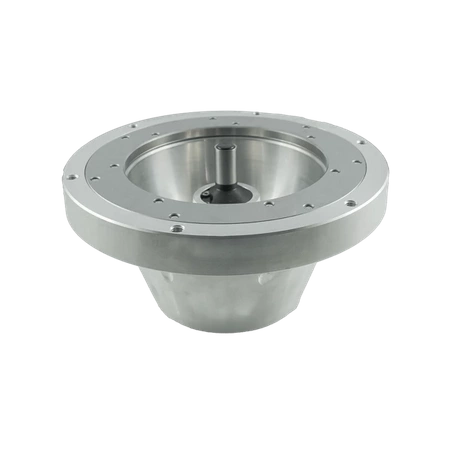

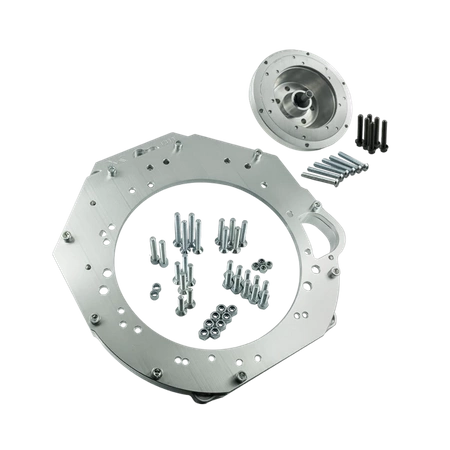

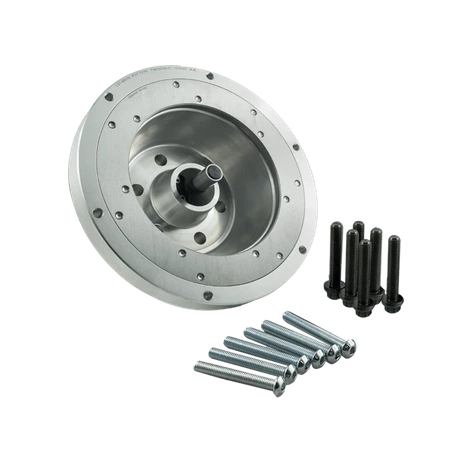

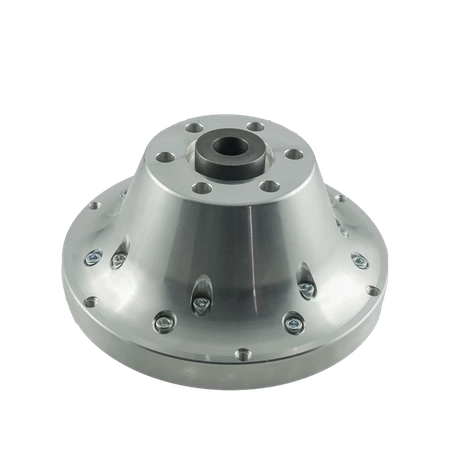

- PMC Motorsport RACE STAGE 2 adapter kit GM Chevrolet V8 LS - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / N54 ZF GS6-53BZ 6-speed - 184mm / 7.25" POT + 2x sintered disc + Pressure plate Tilton
PMC Motorsport RACE STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) GM Chevrolet V8 LS - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / N54 ZF GS6-53BZ 6-speed - 184mm / 7.25" POT + 2x sintered disc + Pressure plate Tilton

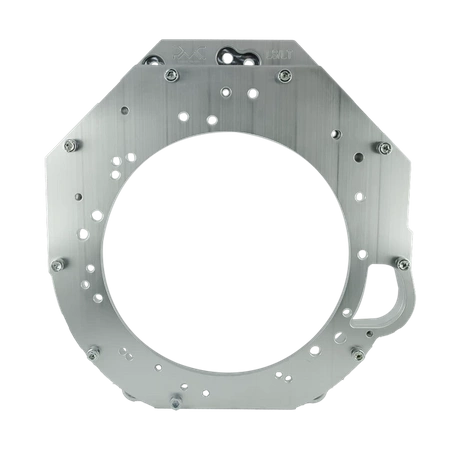

Aluminum adapter enabling to mate (SWAP / conversion) the GM Chevrolet LS LS1 LS3 LS6 LS7 Vortec engine versions, with the manual ZF (ZF Friedrichshafen) gearbox from BMW.
Replace the automatic transmission with a manual transmission from BMW
Why is it worth choosing gearboxes from BMW?
- Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
- Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)
Want to SWAP GM Chevrolet LS LS1 LS3 LS6 LS7 Vortec on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.
Why choose PMC Motorsport parts and adapters?
- Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
- Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
- Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
- Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
- Made in EU. All our production and design departments are located in the European Union
- Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com
PMC Motorsport adapters are not only replacement automatic gearboxes in the Nissan or SWAP LS in BMW. Our kits are often used in GM Chevrolet LS LS1 LS3 LS6 LS7 Vortec in other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34 or Mazda RX7 RX- 7 / RX8 RX- 8
|
|
Manual BMW gearbox list (Petrol) : |
|
Manual BMW gearbox list (Diesel) : |
|
Manual
- Use the flywheel / ring gear from the automatic version
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
- BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
- BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK
- Bell housing : 1067 401 127 / 1067401127
- Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
- BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
- BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
- BMW 3' E46 330i M54 ZF GS6-37BZ - THEB / BMW OE 23 00 7 523 981 / 23 00 7523981
- BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
- BMW 5' E61 525i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
- BMW 5' E61 525i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU
Bell housing: 1067 401 161 / 1067401161
Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK
Bell housing : 1067 401 161 / 1067401161
Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
