PMC Motorsport Race Stage 1 – clutch kit Mercedes-Benz M113 M113K V8 – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA HGA E60 530d / E46 330d – 240 mm / 9.45" – Sachs Performance 883082.001243 – max. 800 Nm / 590 lb⋅ft

Important: Before purchasing, please check the part number of the automatic flexplate (ring gear) on your Mercedes-Benz engine. M113 engines were produced with two different flexplate variants – this adapter is compatible exclusively with Mercedes-Benz OE A2730300312 flexplate.

Complete Race Stage 1 clutch kit designed for engine swap / conversion of the Mercedes-Benz M113 / M113K V8 engine (4.3, 5.0, 5.4, and 5.4 Kompressor) with the ZF GS6-53DZ HGD / JGA / HGA 6-speed manual gearbox sourced from BMW diesel M57N / M57N2 (E60 / E61 530d, E46 330d), including xDrive versions GS6X53DZ HGE / JGB / HGB. The kit includes a transmission adapter plate, custom PMC Motorsport flywheel, reinforced Sachs Performance 883082.001243 clutch pressure plate (non-SAC / without self-adjustment), and a PMC 240 mm sintered paddle clutch disc with 32.5x35-26N splines. The kit's maximum torque rating is 800 Nm (590 lb⋅ft). Due to its aggressive engagement characteristics, this kit is specifically designed for motorsport – drifting, track use, and high-power builds.

Planning a Mercedes-Benz M113 engine swap into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and unlock new potential.

PMC Motorsport adapter plates not only provide an automatic-to-manual conversion for cars equipped with Mercedes-Benz M113 engines, but also facilitate M113 swaps into BMW and other platforms such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Aluminum gearbox adapter plate engineered to make gearbox installation as straightforward as possible without radical modifications such as cutting the bellhousing – only an opening for the starter needs to be prepared. Custom flywheels dedicated to PMC Motorsport adapters are made from lightweight aluminum with a replaceable friction surface, fully inspected and dynamically balanced prior to dispatch. Flywheel designed for a 240 mm clutch pressure plate (BMW OE GS5-39DZ / GS6-53DZ / BZ type). Flywheel weight: 6.7 kg (14.77 lbs), adapter plate thickness: 20 mm (0.78").

PMC Motorsport gearbox adapter plates are synonymous with precision and premium quality. Our design process relies on 3D laser scanning and coordinate measuring arm inspection to guarantee an exact fit. CNC manufacturing ensures flawless concentricity and alignment between the engine and transmission, which is critical for drivetrain longevity.

Additional Information

Installation Instructions

Installing the flywheel requires using an automatic flexplate (ring gear) Mercedes-Benz OE A2730300312 and the OE washer placed between the engine block and flexplate (not included). Bolt the flywheel to the crankshaft using the supplied bolts torqued to 80 Nm (59 lb⋅ft) with threadlocker applied. Mount the clutch fork (dedicated to your specific gearbox) on the lower pivot position of the release bearing (if using a dual-position release bearing). The GS6-53DZ HGA (E46 330d) and GS6X53DZ HGB (xDrive) gearboxes bolt to the adapter plate following the exact same pattern as the M57 GS5-39DZ gearbox – refer to the M57 gearbox installation diagram; while HGD, JGA, HGE, and JGB gearboxes follow the M57N diagram. An original Mercedes-Benz M113 / M113K starter motor must be used (OE, not included). The release bearing, clutch fork, and clutch slave cylinder are not included in the kit – they are retained from your gearbox.

Frequently Asked Questions

Which engines are compatible with this kit?

Mercedes-Benz M113 V8 engines: 4.3, 5.0, 5.4, and M113K 5.4 Kompressor – working in conjunction with the automatic flexplate (ring gear) Mercedes-Benz OE A2730300312. M113 engines were produced with two flexplate variants; therefore, please verify the part number on your engine before ordering.

Which gearboxes are compatible with this kit?

BMW 6-speed manual ZF GS6-53DZ transmissions from diesel M57N / M57N2 engines: HGD (THGD) and JGA (TJGA) – E60 / E61 530d – and HGA (THGA) – E46 330d, as well as xDrive versions GS6X53DZ HGE (THGE) and JGB (TJGB) – E60 530xd – and HGB (THGB) – E46 330xd and X3. Input shaft spline: 32.5x35-26N.

How is the HGA gearbox from BMW E46 330d mounted?

The ZF GS6-53DZ HGA gearbox and its xDrive variant GS6X53DZ HGB mount to the adapter plate following the same bolt pattern as the M57 GS5-39DZ transmission – refer to the M57 gearbox mounting diagram in the "Installation Instructions" section. All other gearboxes (HGD, JGA, HGE, JGB) follow the M57N diagram.

Is it necessary to cut or modify the gearbox bellhousing?

No. The adapter is specifically engineered to prevent cutting the bellhousing – only an opening for the starter needs to be prepared.

What additional parts are required for installation?

A release bearing, clutch fork, and clutch slave cylinder dedicated to your gearbox, the automatic flexplate (ring gear) Mercedes-Benz OE A2730300312 with OE washer, and an OEM Mercedes-Benz M113 / M113K starter motor (see question below). These parts are not included in the kit.

Which clutch is included in the kit?

A reinforced Sachs Performance 883082.001243 (88 308 200 1243) pressure plate (240 mm / 9.45", non-SAC) and a PMC 240 mm sintered paddle clutch disc with 32.5x35-26N splines (26 teeth) matching the ZF GS6-53DZ gearbox.

What maximum torque can the Race Stage 1 kit hold?

The maximum torque capacity of this kit is 800 Nm (590 lb⋅ft).

Is this kit suitable for a daily driver?

The Race Stage 1 kit with a sintered disc is primarily intended for motorsport – clutch engagement is much sharper, firmer, and less progressive than an organic disc. For predominantly street or daily driven vehicles, we recommend the Stage 1 kit with the Sachs XTend clutch.

Can I use a different clutch setup?

Yes. The PMC Motorsport flywheel is designed for a 240 mm BMW OE type pressure plate – from BMW M57 / M57N / M57N2 (including the factory GS6-53DZ pressure plate) / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. Aftermarket setups from ACT / Spec / Tanaci are also commonly used – any aftermarket pressure plate must fit a BMW OE flywheel pattern (M57 / M57N / M57N2 / N54 / B58).

Which starter motor should be used?

An original Mercedes-Benz M113 / M113K (OE) starter motor. The starter motor is not included in the kit.

Can I use this adapter with other BMW transmissions, such as GS5-39DZ or GS6-53BZ?

Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW manual transmissions (applies to adapter plates manufactured after 2022). If you switch to another transmission model, you only need to swap the flywheel and clutch disc.

Is this adapter also compatible with the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate is universal and fits most BMW transmissions (applies to adapter plates manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel is simply replaced with a PMC Motorsport 8HP torque converter adapter.

What does the kit include?

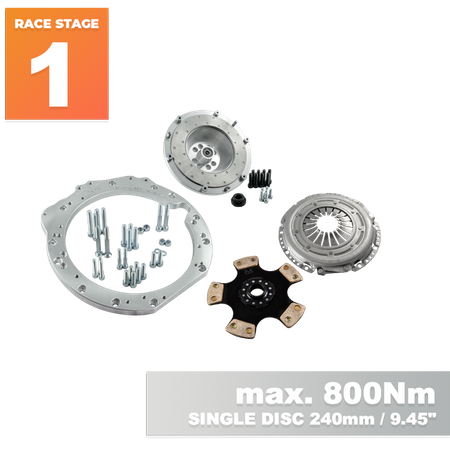

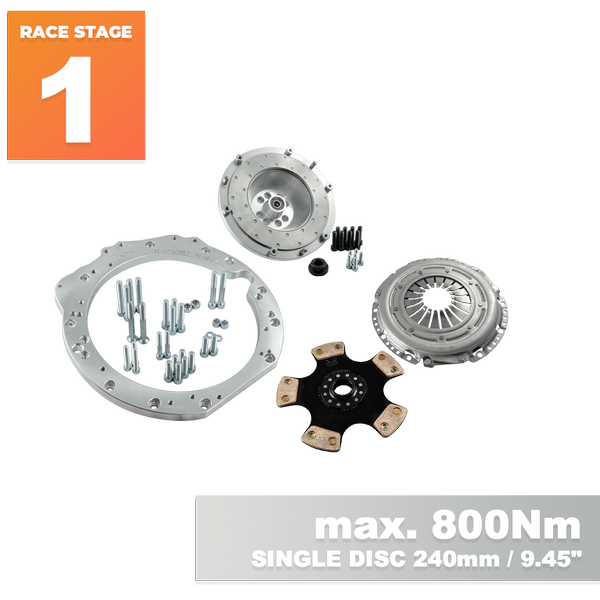

An aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport flywheel with replaceable friction surface (6.7 kg / 14.77 lbs), crankshaft bolts, pressure plate bolts, Sachs Performance 883082.001243 clutch pressure plate, and PMC 240 mm 32.5x35-26N sintered clutch disc. The release bearing, clutch fork, and clutch slave cylinder are not included.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component in this kit is available for purchase separately – including an adapter plate with flywheel bundle without the clutch kit.

Does the price include customs duties for shipments outside the EU?

No. Product prices and shipping quotes do not include customs duties, import tariffs, or local handling fees that may be charged in the destination country.

Can I purchase with 0% VAT?

Yes, if you are a registered B2B customer within the European Union (outside Poland) with an active EU VAT number verified in VIES, or if you are ordering for export outside the European Union.

Is the included installation manual sufficient for a complete swap?

The manual strictly covers the mechanical mating of the engine and gearbox outside the vehicle chassis. Depending on your chassis, additional custom fabrication may be necessary (engine mounts, crossmembers, firewall modification, transmission tunnel clearance, driveshaft length). Professional installation is strongly advised.

Please note that a lightweight single-mass flywheel delivers immediate, uncompromising throttle response at the expense of eliminating OEM damping elements. This creates a much more direct drivetrain connection, which may result in a noticeable increase in transmission gear chatter and drivetrain noise. This is a normal and expected characteristic in performance and motorsport applications resulting from rigid drivetrain coupling.
