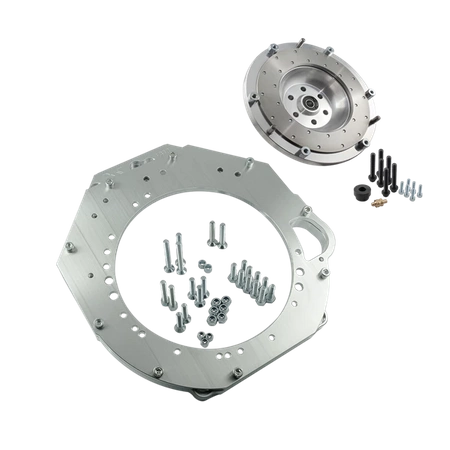

Adapter kit GM Chevrolet LS - manual 5-speed BMW M50 S50 M52 S52 M54 ZF-5- 240mm / 9.45"
- Aluminum clutch kit enabling the connection (swap / conversion) of Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec with a manual ZF gearbox / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.
PMC Motorsport adapter / conversion kit / clutch kit Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45"
Clutch kit enabling the connection (swap / conversion) of a Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec engine with a manual ZF (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, Getrag 420 G, Getrag 250 G
Planning a Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic gearbox with a manual BMW one and gain new possibilities. PMC Motorsport adapters are not only about swapping gearboxes in Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec, but also about supporting LS SWAP implementation in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
 |
 |
 |
Balanced before shippingEach of our flywheels is thoroughly checked and balanced before shipping. |
Pilot bearing for the input shaftThe bearing supports the input shaft and minimizes its vibrations. |
Replaceable friction surfaceThe worn cast iron surface is easily removable and can be replaced with a brand new one, available in our offer. |
Why choose PMC Motorsport parts and adapters?
Professionalism
From design to implementation, our parts go through a long process. Each component for which we produce parts has been measured by us using a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems during its use. For our production, we use only certified materials from verified suppliers. We have a modern CNC machine park and experienced employees.
Perfect Coaxiality.
Our adapters guarantee an ideal fit between the engine and the gearbox.
Made in Poland
All our production and design department are located in Poland.
Help with selection and after-sales support.
The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during assembly, they will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com
Purchase of individual components
In our offer, we have every element of our kit, which can be purchased separately. If you need a spare part, write to us: office@pmcmotorsport.com
Fast worldwide shipping.
Our products are shipped to practically all countries in the world. European Union countries (excluding islands) and Great Britain have automatically calculated shipping costs. For countries not on the list, after placing an order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the order cost. !!! ATTENTION: The shipping quote sent along with the product price does not include additional fees / customs duties that may occur depending on the shipping country. !!!
0% VAT
0% VAT for customers with an active European VAT number (option for B2B customers outside Poland). After successful verification in the VIES system, we modify the order by removing the charged VAT from the order.
Experience
Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver cars and professional projects intended for professional motorsport.
Quality confirmed by certificate
From the beginning, we have focused on the quality of the parts we manufacture. After each stage of production, the element is controlled. Each sub-assembly produced by us is engraved with a production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate.
Why choose BMW gearboxes?
Availability and Price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts, as well as complete gearboxes, are easily accessible at authorized service centers and on the secondary market.
Durability and Reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can transmit very high torque (some models 1000Nm+), while ensuring high reliability. They are ideal for high-power SWAP projects intended for daily use.
Speed and Convenience. When using new generation ZF 8HP or Getrag DCT DKG automatic gearboxes, we achieve ultra-fast shift times (0.2 seconds).
| Compatible Engines : |
GM Small Block Chevrolet LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Small Block Chevrolet Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200 |
| Compatible Gearboxes : |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 GETRAG 420 / 420G TBAI BMW S54 E46 M3 Flywheel does not fit 6-speed BMW M54 gearbox |
ZF Friedrichshafen ZF5 S5-32D
ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 5-speed manual transmission used in BMW E series with M50 M52 M54 engines (E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54)), gearbox weight is approx. 39 kg (86 lb).
Male spline type: 23x29-10N
ZF 5 Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 4.210 | 2.490 | 1.670 | 1.240 | 1.000 | 3.850 |
ZF 320D 10534013 |
 |
ZF 320D 105340148 |
 |
Installation Instructions
!!! PMC Motorsport parts are intended for motorsport and track use. Parts for assembly by professionals using appropriate tools in workshops adapted for this purpose !!!
The flywheel has been produced from aluminum and cast iron and is fully recyclable.
! Custom flywheel requires the use of a ring gear / flywheel from a Chevrolet LS automatic - not included in the set!
FAQ
1. Which starter should be used with the PMC Motorsport Chevrolet LS / Vortec - BMW adapter?
The PMC Motorsport GM Chevrolet LS - BMW adapter supports all OE Chevrolet LS starters.
2. Which ring gear should be used with the PMC Motorsport Chevrolet LS / Vortec - BMW flywheel?
When installing the PMC Motorsport Chevrolet LS / Vortec - BMW flywheel, you should use the ring gear (flywheel) from an automatic Chevrolet LS version: OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677 or their replacements.
3. What clutch can I use with the PMC Motorsport flywheel?
The Chevrolet LS / Vortec - BMW ZF5 flywheel is designed for a clutch pressure plate from BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Clutches from companies like ACT / Spec / Tanaci are very often used with our kit (it is important that the custom clutch pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, you should use a clutch disc with the appropriate spline, a dedicated release bearing kit, and a clutch slave cylinder.
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
- BMW 3' E36 320i 323i 325i 323ti 325is M50 M52 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E36 Z3 2.0 2.2 2.2i 2.5 2.5i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E46 320i 320Ci 323i 323Ci 325i 325Ci 325ti M52 M54 M56 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKG MT5 / BMW OE 23 00 1 222 069 / 23 00 1222069
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKZ MT5 / BMW OE 23 00 1 221 837 / 23 00 1221837
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKT MT5 / BMW OE 23 00 1 222 400 / 23 00 1222400
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKS MT5 / BMW OE 23 00 1 222 404 / 23 00 1222404
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E39 520i 523i 525i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E34 525i M50 ZF S5D 310Z - THDL / BMW OE 23 00 1 221 859 / 23 00 1221859
- BMW 5' E34 525i M50 ZF S5D 310Z - THDM / BMW OE 23 00 1 222 263 / 23 00 1222263
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDH / BMW OE 23 00 1 222 180 / 23 00 1222180
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDO / BMW OE 23 00 1 222 268 / 23 00 1222268
- BMW 3' E36 323i 325i 328i M50 M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 Z3 2.8 M52 M 3.2 S50 S52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 Z3 2.8 3.0 M52 M54 M 3.2 S50 S52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 328i 328Ci 330i 330Ci M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 325xi 330xi M54 (xDrive) ZF S5D 320Z - THCG / BMW OE 23 00 7 502 658 / 23 00 7502658
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 983 / 23 00 1222983
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 5' E39 523i 528i 530i M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 7' E38 728i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 7' E38 728i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 7' E38 728i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TAGU MT6 / BMW OE 23 00 1 222 700 / 23 00 1222700
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TBAB MT6 / BMW OE 23 00 1 434 507 / 23 00 1434507
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TBAC MT6 / BMW OE 23 00 2 228 312 / 23 00 2228312
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TAGX MT6 / BMW OE 23 00 2 228 817 / 23 00 2 228 817
