Race Stage 1 GM Chevrolet V8 LS - BMW M50 S50 M52 S52 M54 ZF-5 - 240mm / 9.45"
- Aluminum clutch kit enabling the connection (swap / conversion) of Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec with a manual ZF gearbox / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.
In a set
![High Performance Clutch Disc BMW M50 M52 M54 23x29-10N [240mm 9.25"]](/hpeciai/1d95b9c134a3e428c7a1ef9030eb5331/eng_ps_High-Performance-Clutch-Disc-BMW-M50-M52-M54-23x29-10N-240mm-9-25-4730_2.webp)

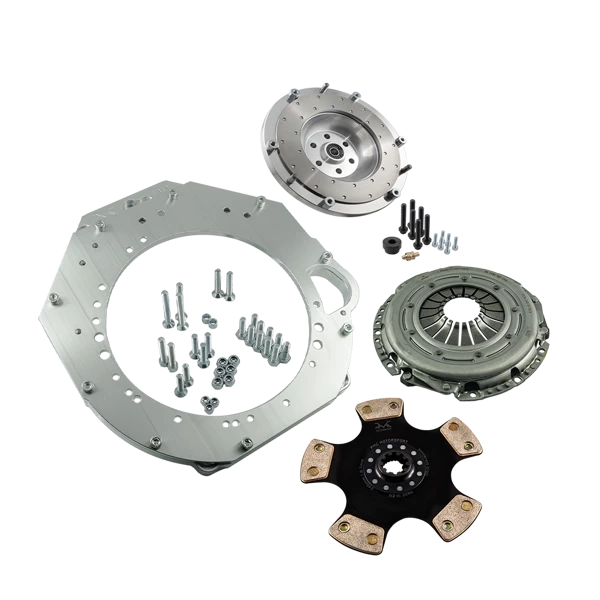

PMC Motorsport adapter / conversion kit / clutch kit GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + cerametallic clutch disc 23x29-10N max. 800Nm / 589.9lb⋅ft
Clutch kit enabling the connection (swap / conversion) of the GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec engine with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, GETRAG 420 G (inline engine version), GETRAG 250 G. The kit includes a reinforced Sachs Performance 883082.001243 clutch pressure plate without self-adjusters and a PMC 10N cerametallic disc - maximum torque 800Nm / 589.9lb⋅ft. Due to its characteristics, this kit is intended for motorsport!!!
Adapter fits GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec engines with a 6-bolt flywheel mounting
Are you planning a GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic transmission with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only about gearbox replacement in GM Chevrolet V8 LS engines, but also support for SWAP projects in BMW and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured in-house.
Selection Assistance and After-Sales Support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for your needs. In case of any doubts during installation, we provide technical support. You can reach us via the contact form.
Individual Component Purchase
We offer every element of our kit for individual purchase.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used both in "Daily" cars and professional motorsport projects.
From the beginning, we have focused on the quality of our parts. Each component is inspected after every production stage. Every part manufactured by us is engraved with a production serial number.
Quality confirmed by ISO PN-EN ISO 9001:2015 certificate
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will prepare a shipping quote after the order is placed and add it to your order. You will receive an email with the total cost.
NOTICE: The shipping quote provided along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
VAT 0%
0% VAT for customers with an active European VAT number (option for B2B customers outside of Poland) and for export outside the EU.
After successful verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible Engines: |
GM Chevrolet V8 LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet V8 Vortec GM Small Block V8 Chevrolet Vortec 4800 LR4 GM Small Block V8 Chevrolet Vortec 5300 LM4 LM7 L33 L59 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) L76 L77 L96 LFA LQ4 LQ9 LZ1 LY6 GM Small Block V8 Chevrolet Vortec 6200 L92 L94 L9H |
| Compatible Gearboxes: |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G (inline engines only) 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 Flywheel does NOT fit BMW M54 GS6-37BZ 6-speed / BMW M60 M62 GETRAG 420G |
Additional Information
ZF Friedrichshafen ZF5 S5-32D
The ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual gearbox used in BMW E-series cars with M50, M52, and M54 engines (E36 328i, M3 USA, E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54), 528i (M52), 530i (M54), Z3 2.8i (M52), 3.0i (M54), Z3 M3.2i (S52) *Canada & USA versions only, M3.2i (S54)). The gearbox weight is approx. 39 kg (86 lb). Input shaft spline type: 23x29-10N
ZF 5 Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 4.210 | 2.490 | 1.670 | 1.240 | 1.000 | 3.850 |
ZF 320D 10534013 |
 |
ZF 320D 105340148 |
 |
PMC Motorsport parts are designed for motorsport use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications, in workshops using appropriate tools.
The adapter installation instructions provide only the basic knowledge necessary for the physical connection of the engine and gearbox outside the vehicle body.
Depending on the vehicle, additional modifications may be required, such as: adjusting mounts, bushings, engine firewall, transmission tunnel, driveshaft length, etc.
Our adapters are made from fully recyclable materials.
To install the flywheel, it is necessary to use the flexplate from the automatic version GM Chevrolet LS OE (OE numbers: 12654640 12553054 12563136 12580709 12602448 12606620 12637677) (not included). The clutch fork must be mounted on the lower position of the release bearing (in the case of a two-position bearing).
FAQ
1. Which starter motor should be used with the PMC Motorsport GM Chevrolet LS - BMW adapter?
For the installation of the adapter, a GM Chevrolet LS OE starter motor must be used.
2. Which ring gear should be used for the PMC Motorsport GM Chevrolet LS - BMW flywheel?
When mounting the PMC Motorsport GM Chevrolet LS - BMW ZF flywheel, the ring gear (flexplate) from the automatic GM Chevrolet LS version (OE numbers: 12654640 12553054 12563136 12580709 12602448 12606620 12637677) must be used.
3. Which clutch can I use with the PMC Motorsport flywheel?
The GM Chevrolet LS - BMW ZF5 flywheel is designed for a clutch pressure plate from BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Clutches from ACT / Spec / Tanaci are very often used with our kit (it is important that the aftermarket pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, use a clutch disc with the appropriate spline, a dedicated release kit, and a slave cylinder.
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
- BMW 5' E34 525i M50 ZF S5D 310Z - THDL / BMW OE 23 00 1 221 859 / 23 00 1221859
- BMW 5' E34 525i M50 ZF S5D 310Z - THDM / BMW OE 23 00 1 222 263 / 23 00 1222263
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDH / BMW OE 23 00 1 222 180 / 23 00 1222180
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDO / BMW OE 23 00 1 222 268 / 23 00 1222268
- BMW 3' E36 323i 325i 328i M50 M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 Z3 2.8 M52 M 3.2 S50 S52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 Z3 2.8 3.0 M52 M54 M 3.2 S50 S52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 328i 328Ci 330i 330Ci M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 325xi 330xi M54 (xDrive) ZF S5D 320Z - THCG / BMW OE 23 00 7 502 658 / 23 00 7502658
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 983 / 23 00 1222983
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 5' E39 523i 528i 530i M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 7' E38 728i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 7' E38 728i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 7' E38 728i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 320i 323i 325i 323ti 325is M50 M52 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E36 Z3 2.0 2.2 2.2i 2.5 2.5i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E46 320i 320Ci 323i 323Ci 325i 325Ci 325ti M52 M54 M56 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKG MT5 / BMW OE 23 00 1 222 069 / 23 00 1222069
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKZ MT5 / BMW OE 23 00 1 221 837 / 23 00 1221837
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKT MT5 / BMW OE 23 00 1 222 400 / 23 00 1222400
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKS MT5 / BMW OE 23 00 1 222 404 / 23 00 1222404
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E39 520i 523i 525i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TAGU MT6 / BMW OE 23 00 1 222 700 / 23 00 1222700
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TBAB MT6 / BMW OE 23 00 1 434 507 / 23 00 1434507
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TBAC MT6 / BMW OE 23 00 2 228 312 / 23 00 2228312
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TAGX MT6 / BMW OE 23 00 2 228 817 / 23 00 2 228 817
