![High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]](/hpeciai/7663cbb2f4b8c0d31c7481ca8d9986e7/eng_pl_High-Performance-Clutch-Disc-BMW-M57N-M57N2-N57-N54-B57-B58-32-5x35-26N-240mm-9-25-4759_1.png)

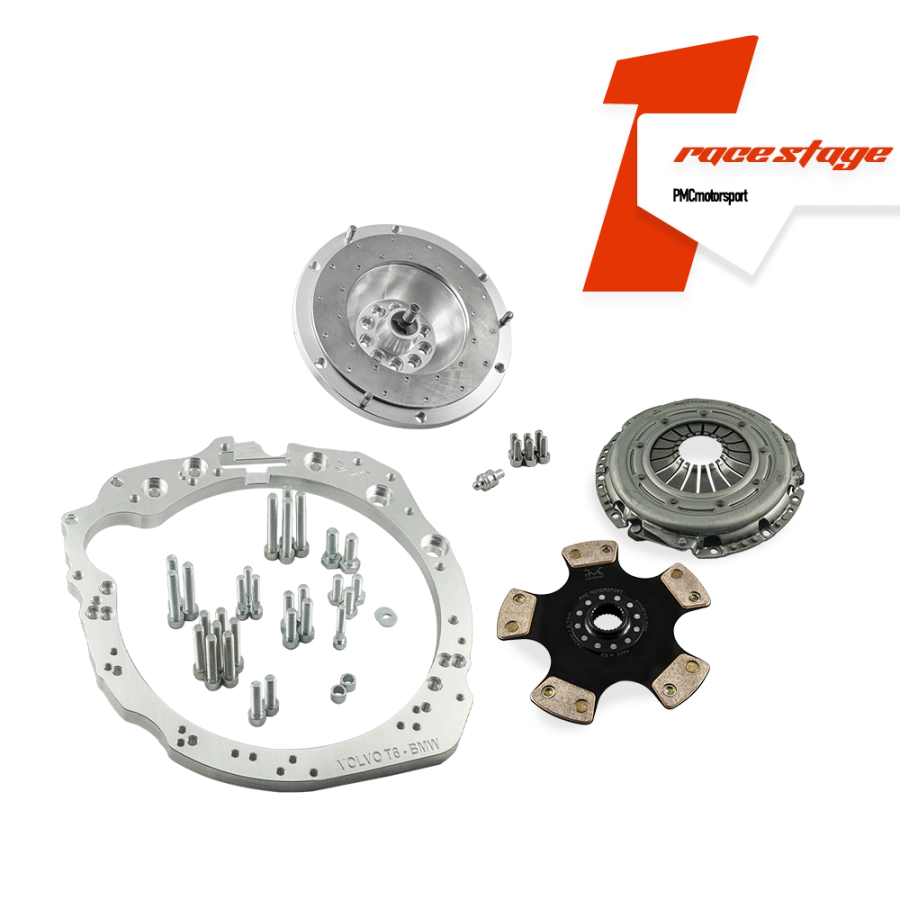

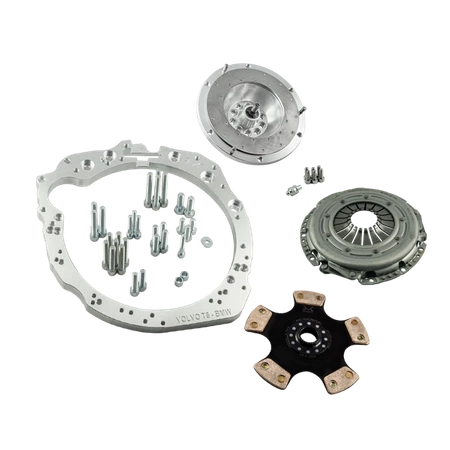

Race stage 1 Volvo "White" T5 T6 - manual 6 speed BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
- An adapter allowing the connection (swap / conversion) of a Volvo "White" T5 T6 with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.
In a set
![High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]](/hpeciai/b9f3690e69f27eec0575aae765206472/eng_ps_High-Performance-Clutch-Disc-BMW-M57N-M57N2-N57-N54-B57-B58-32-5x35-26N-240mm-9-25-4759_1.png)
PMC Motorsport Race Stage 1 adapter / Adaptor kit / swap kit / conversion kit / clutch kit Volvo "White" T5 T6 - BMW E9x 325 330D M57n M57n2 ZF GS6-53DZ HGU HGK 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft
An adapter allowing the connection (swap / conversion) of a Volvo "White" T5 T6 with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.
Planning to do a Volvo "White" T5 T6 SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a Volvo "White" T5 T6 manual transmission and gain new possibilities. PMC Motorsport adapters are not only for transmission swaps in Mercedes-Benz M120 engines but also provide support for executing Volvo "White" T5 T6 swaps in BMWs and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
 |
 |
 |
Balanced before shippingEach of our flywheels is thoroughly inspected and balanced before shipping. |
Pilot Bearing for Input ShaftBushing supporting the input shaft and minimizing its vibrations. |
Replaceable friction surfaceThe worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer. |
Why choose PMC Motorsport parts and adapters?
Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport competitions.
Professionalism. From design to implementation, our parts go through a long process. Every element for which we produce parts is measured by a measuring arm and 3D scanner. The prototype undergoes numerous tests to eliminate any possible issues during use. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced employees.
Quality. From the very beginning, we prioritize the quality of the parts we produce. After each stage of production, the element is inspected. Every component we produce is engraved with a production serial number. We confirm our quality with the ISO PN-EN ISO 9001:2015 certificate.
Perfect coaxiality. Our adapters guarantee perfect fitting of the engine and transmission.
Made in EU. All our production and design teams are located in the European Union.
Single item purchase. In our offer, we have each element of our kit available for individual purchase. If you need a spare part, contact us at: office@pmcmotorsport.com
Fast international shipping. We ship our products to all countries worldwide. For European Union countries (excluding islands) and the United Kingdom, shipping prices are calculated automatically. For countries not on the list, our team will send a shipping quote after purchase.
VAT 0% for customers with active European VAT (option for B2B customers outside Poland).
Assistance in selection and after-sales support. The PMC Motorsport team will help you choose the right kit for you. If you have any doubts during installation, we offer technical support. You can contact us via Facebook, Instagram, or email: office@pmcmotorsport.com
| Compatible engines: |
Volvo White : Volvo Modular White block straight-five 2.0 Volvo Modular White block straight-five 2.3 Volvo Modular White block straight-five 2.4 Volvo Modular White block straight-six 2.5 Volvo Modular White block straight-six 2.8 Volvo Modular White block straight-six 2.9 |
| Compatible transmissions: |
BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed BMW M57n2 E9x 330D ZF S6-53 GS6-53DZ HGU (THGU)) BMW M57n2 E9x 330D ZF S6-53 GS6-53DZ HGK (THGK) BMW M57n2 E9x 330Dx (xDrive) ZF GS6X53DZ HGW (THGW) BMW M57n2 E9x 330Dx (xDrive) ZF GS6X53DZ HGL (THGL) |
Why choose BMW transmissions?
Availability and price. Millions of cars produced and their availability worldwide ensure the availability of spare parts. Parts, as well as complete transmissions, are easily accessible through authorized service centers and the aftermarket.
Durability and reliability. BMW ZF / Getrag transmissions have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models over 1000Nm) while ensuring high reliability. They are perfect for swaps in high-power projects intended for daily use.
Speed and convenience. When using new generation automatic transmissions like ZF 8HP or Getrag DCT DKG, we gain ultra-fast shifting times (0.2 seconds).
ZF Friedrichshafen S6-53DZ
ZF Friedrichshafen GS6-53DZ 6-speed manual transmission (S6-53DZ), due to its high durability (1000Nm+) and low price, is the ideal solution for cars prepared for motorsport.
Female spline type: 32.5x35-26N
ZF GS6-53DZ Gear Ratios |
||||||
|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | R |
| 5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
ZF GS6-53DZ HGU THGU |
 |
 |
ZF GS6-53DZ HGK THGK |
 |
Installation Instructions
!!! PMC Motorsport parts are intended for motorsports and use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops designed for this purpose !!!
The flywheel is made of aluminum and cast iron and is fully recyclable.
! The custom flywheel requires the use of a ring gear / flywheel from the automatic Volvo OE 1275370 – not included in the kit!
Volvo Whiteblock "White" straight-five 2.0
Volvo B5202S B5202 S
- 1997–1998 Volvo S70
- 1997–1999 Volvo V70
Volvo B5202FS B5202 FS
- 1995–1997 Volvo 850 / 850 2.0 / 850 2.0 10V
- 1997–1999 Volvo S70 / S70 2.0
- 1997–1999 Volvo V70 / V70 2.0
Volvo B5204S B5204 S
- 1992–1994 Volvo 850
Volvo B5204FS B5204 FS
- 1992–1996 Volvo 850
Volvo B5204FT B5204 FT Turbocharged
- 1994–1997 Volvo 850 / 850 2.0T
Volvo B5204T B5204 T Turbocharged
- 1994–1997 Volvo 850 /850 T-5 (2.0)
Volvo B5204T2 B5204 T2 Turbocharged
- 1997–1998 Volvo S70 / S70 2.0T
- 1997–1998 Volvo V70 / V70 2.0T
Volvo B5204T3 B5204 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1997–2000 Volvo V70 / V70 T5
- 1998–2002 Volvo C70 / C70 T5
- 1999–2000 Volvo S80 / S80 T5
VVolvo B5204T4 B5204 T4 Turbocharged
- 1999–2000 Volvo S80 / S80 2.0T
- 2000–2005 Volvo C70 / C70 2.0T (convertible)
- 2000–2002 Volvo C70 / C70 2.0T (coupé)
- 1999 Volvo V70 / V70 2.0T
Volvo B5204T5 B5204 T5 Turbocharged
- 2000–2006 Volvo S80 / S80 2.0T
- 2001–2009 Volvo S60 / S60 2.0T
- 2000–2007 Volvo V70 II /V70 2.0T
VolvoB5204T8 B5204 T8 Turbocharged
- 2012–2015 Volvo V40 II / V40 T4
- 2013–2014 Volvo S60 II / S60 T4
- 2013 Volvo V60 / V60 T4
Volvo B5204T9 B5204 T9 Turbocharged
- 2012–2015 Volvo V40 II /V40 (Thailand)
- 2013–2014 Volvo V40 II / V40 T5 R Design / V40 Cross Country T5 AWD (Japan)
- 2013–2014 Volvo S60 II / S60 T5
- 2013–2014 Volvo V60 / V60 T5
- 2013–2015 Volvo S80 II / S80L T5
Volvo Modular Whiteblock straight-five 2.3
Volvo B5234FS B5234 FS
- 1994–1996 Volvo 850 Volvo S70
Volvo B5234T B5234 T Turbocharged
- 1993–1996 Volvo 850 / 850 T-5 / 850 Turbo
Volvo B5234T2 B5234 T2 Turbocharged
- 1997 Volvo 850
- 1997–1998 Volvo S70
- 1997–1998 Volvo V70
Volvo B5234T3 B5234 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1998 Volvo S70 / S70 R
- 1997–2000 Volvo V70 / V70 T5
- 1998 Volvo V70 V70 R
- 1998–2002 Volvo C70 / C70 T5 (convertible)
- 1997–2002 Volvo C70 / C70 T5 (coupé)
- 2000–2004 Volvo V70 II / V70 T5
- 2001–2004 Volvo S60 / S60 T5
VolvoB5234T4 B5234 T4 Turbocharged
- 1996–1997 Volvo 850 / 850 R
- 1998 Volvo S70 / S70 R
- 1998 Volvo V70 / V70 R / V70 R AWD
Volvo B5234 T5 B5234 T5 B5234FT5 B5234 FT5 Turbocharged
- 1995 Volvo 850 / 850 T-5R (U.S.)
- 1995-1996 Volvo 850 / 850 T-5R
- 1996–1997 Volvo 850 / 850 R
Volvo B5234T6 B5234 T6 Turbocharged
- 1998 Volvo V70 /V70 R AWD
Volvo B5234T7 B5234 T7 Turbocharged
- 1998–2000 Volvo S70
- 1998–2000 Volvo V70
- 2000–2004 Volvo S80 / S80 2.3T
- 2001–2004 Volvo S60 / S60 2.3T
Volvo B5234T8 B5234 T8 Turbocharged
- 1999 Volvo V70 / V70 R AWD
Volvo B5234T9 B5234 T9 Turbocharged
- 2003–2005 Volvo C70 / C70 T5 (convertible)
Volvo B5244S B5244 S N.A
- 2000 Volvo S70 2.4
- 2000 Volvo V70 2.4
- 2001–2009 Volvo S60 2.4
- 2001–2007 Volvo V70 II / V70 2.4
- 1999–2006 Volvo S80 2.4
Volvo B5244S2 B5244 S2 N.A
- 1999–2006 Volvo S80
- 2000 Volvo S70 2.4
- 2000-2007 Volvo V70
- 2001–2009 Volvo S60
Volvo B5244S4 B5244 S4 N.A
- 2004–2010 Volvo S40 II / S40 2.4i
- 2004–2010 Volvo V50 2.4i
- 2007–2010 Volvo C30 2.4i
- 2006–2010 Volvo C70 II / C70 2.4i
VolvoB5244S5 B5244 S5 N.A
- 2004–2010 Volvo S40 II /S40 2.4
- 2004–2010 Volvo V50 2.4
- 2006–2010 Volvo C70 II / C70 2.4
Volvo B5244S6 B5244 S6
VolvoB5244S7 B5244 S7
VolvoB5244T B5244 T Turbocharged
- 1999-2000 Volvo S70 2.4T / S70 2.4T AWD
- 1999-2000 Volvo V70 2.4T / V70 2.4T AWD
- 1999-2000 Volvo V70 XC 2.4T AWD
- 2000–2002 Volvo C70 2.4T (convertible)
- 2000–2002 Volvo C70 2.4T (coupé)
Volvo B5244T2 B5244 T2 Turbocharged
- 2000 Volvo V70 R AWD
Volvo B5244T3 B5244 T3 Turbocharged
- 2001–2003 Volvo S80 2.4T
- 2001–2003 Volvo S60 2.4T
- 2000–2003 Volvo V70 II / V70 2.4T
- 2001–2002 Volvo V70 XC II / V70 XC 2.4T AWD
Volvo B5244T4 B5244 T4 Turbocharged
- 2005–2006 Volvo S60 2.4T
- 2005 Volvo V70 II / V70 2.4T
- 2005–2006 Volvo XC70 2.4T AWD
Volvo B5244T5 B5244 T5 Turbocharged
- 2005–2009 Volvo S60 / S60 T5
- 2005–2007 Volvo V70 I / V70 T5
Volvo B5244T7 B5244 T7 Turbocharged
- 2003–2005 Volvo C70 C70 2.4T (convertible)
Volvo B6244FS B6244 FS N.A
- 1995–1997 Volvo 960 2.4 24V
- 1997–1998 Volvo S90 2.4 24V
- 1997–1998 Volvo V90 2.4 24V
Volvo B5252S B5252 S N.A
- 1996 Volvo 850 / 850 2.4_10V or 850 2.5i
- 1997–1998 Volvo S70
VolvoB5252FS B5252 FS
- 1993–1997 Volvo 850
- 1997–1999 Volvo S70
- 1997–1999 Volvo V70
Volvo B5254F B5254 F
- 1991–1994 Volvo 850
Volvo B5254FS B5254 FS
- 1995 Volvo 850
- 1997-1999 Volvo S70
- 1996–1998 Renault Safrane / Safrane 2.5 or Safrane 2.4 20V
Volvo B5254S B5254 S
- 1995–1997 Volvo 850 / 850 2.5-20V 850 2.5 20V / 850 GLT
- 1997–1999 Volvo S70 / S70 2.5 20V
- 1999 Volvo V70 / V70 2.5 20V
- 1999 Volvo C70 / C70 2.5 20V (coupé)
Volvo B5254T B5254 T
- 1997 Volvo 850 850 AWD or 850 2.5T
- 1997–1999 Volvo S70 / S70 2.5T or S70 AWD
- 1997–1999 Volvo V70 / V70 2.5T, V70 AWD / V70 2.5T AWD
- 1998–1999 Volvo V70 XC / V70 XC AWD / V70 XC 2.5T AWD / V70 GLT
- 1998–1999 Volvo C70 / C70 2.5T (convertible)
- 1998–1999 Volvo C70 / C70 2.5T (coupé)
Volvo B5254T2 B5254 T2
- 2003–2009 Volvo S60 / S60 2.5T or S60 2.5T AWD
- 2003–2008 Volvo V70 II / V70 2.5T or V70 2.5T AWD
- 2003–2007 Volvo XC70 / XC70 2.5T AWD
- 2003–2006 Volvo S80 / S80 2.5T
- 2003–2012 Volvo XC90 / XC90 2.5T AWD
Volvo B5254T3 B5254 T3
- 2005–2008 Volvo S40 II / S40 T5
- 2005–2008 Volvo V50 / V50 T5
- 2007 Volvo C30 / C30 T5
- 2006–2007 Volvo C70 / C70 T5
- 2005–2011 Ford Focus ST
- 2007-2010 Ford Mondeo Mk4 / XR5 Turbo for the Australian market.
- 2007-2010 Ford S-Max
- 2009-2010 Ford Focus RS
- 2011 Ford Focus RS 500
- 2008–2012 Ford Kuga 2.5T2008-2010 Euro 4, 2011-2012 Euro 5
- 2004–2007 Volvo V70 II / V70 R AWD
Volvo B5254T5 B5254 T5
- 2011–2012 Volvo S60 II / S60 T5
Volvo B5254T6 B5254 T6
- 2007–2009 Volvo S80 II / S80 2.5T
- 2008–2009 Volvo V70 III / V70 2.5T or V70 2.5T AWD
- 2006–2010 Ford S-Max 2.5T
- 2007–2010 Ford Mondeo 2.5T or Mondeo XR5 Turbo in Australia
Volvo B5254T7 B5254 T7
- 2008–2012 Volvo S40 II / S40 T5
- 2008–2012 Volvo V50 / V50 T5
- 2008–2013 Volvo C30 / C30 T5
- 2008–2013 Volvo C70 II / C70 T5
Volvo B5254T8 B5254 T8
- 2009–2011 Volvo S80 II / S80 2.5FT
- 2009 Volvo V70 III / V70 2.5FT'
Volvo B5254T10 B5254 T10
- 2010–2012 Volvo S80 II / S80 2.5T
- 2010–2012 Volvo V70 II / V70 2.5T
Volvo B5254T11B5254 T11
- 2010–2011 Volvo S80 II / S80 2.5FT
- 2010 Volvo V70 III / V70 2.5FT
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC / V40CC T5 AWD
- 2013–2015 Volvo S60 II / S60 T5
- 2013–2015 Volvo V60 / V60 T5
- 2013–2016 Volvo XC60 / XC60 T5 AWD
- 2014–2016 Volvo XC70 II / XC70 T5 or XC70 T5 AWD
Volvo B5254T14 B5254 T14
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC T5
- 2013–2016 Volvo S60 II / S60 T5
- 2013–2016 Volvo V60 T5
- 2016 Volvo XC70 II / XC70 T5 AWD
Volvo B6254FS B6254 FS
- 1995–1997 Volvo 960 2.5 or 960 24V
- 1997–1998 Volvo S90 2.5 or S90 24V
- 1997–1998 Volvo V90 2.5 or V90 24V
Volvo B6284T B6284 T Turbocharged Twin-Turbo
- 1999–2002 Volvo S80 / S80 T6
Volvo B6294S B6294 S N.A
- 2003 Volvo S80 / S80 2.9
Volvo B6294S2 B6294 S2 N.A
- 2003–2006 Volvo S80 / S80 2.9
Volvo B6294T B6294 T Turbocharged
- 2002–2006 Volvo S80 / S80 T6
- 2003–2006 Volvo XC90 / XC90 T6
Volvo B6304S B6304 S N.A
- 1991–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
- 1994–1999 Indigo 3000
- 1999 Volvo S80
Volvo B6304F1 B6304 F1 N.A
- 1995–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
Volvo B6304S2 B6304 S2 N.A
- Volvo 960 later model years / various
Volvo B6304S3 B6304 S3 N.A
- 1999 Volvo S80
Volvo B6304G B6304 G N.A
- 1997–1998 Volvo S90 / S90 3.0 24V
- 1997–1998 Volvo V90 / V90 3.0 24V
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU
Bell housing: 1067 401 161 / 1067401161
Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK
Bell housing : 1067 401 161 / 1067401161
Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
- BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
- BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
