Adapter Toyota 1UZ 3UZ - 6-speed manual BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45"

PMC Motorsport adapter / conversion kit / clutch kit Toyota Lexus V8 UZ 1UZ 3UZ – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA E60 525d 530d / HGA E46 330d – 240 mm / 9.45"

Adapter kit allowing connection (swap / conversion) of the Toyota Lexus V8 UZ 1UZ 3UZ engine with the 6-speed manual gearbox ZF GS6-53DZ HGD / JGA / HGA used in BMW with M57N / M57N2 diesel engine (E60 525d / 530d, E46 330d), as well as its GS6X53DZ HGB / HGE / JGB variant from xDrive versions. An ideal solution for amateur and professional motorsport.

Planning a Toyota Lexus V8 UZ 1UZ 3UZ swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Swap your automatic transmission for a manual BMW gearbox and unlock new possibilities.

PMC Motorsport adapters not only enable automatic to manual gearbox conversion in vehicles with the Toyota Lexus V8 UZ 1UZ 3UZ engine, but also support completing UZ swaps in BMW as well as other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

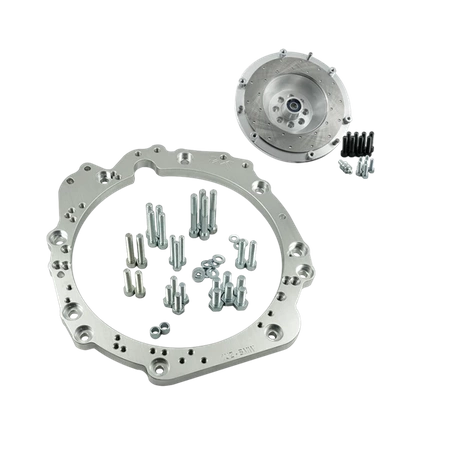

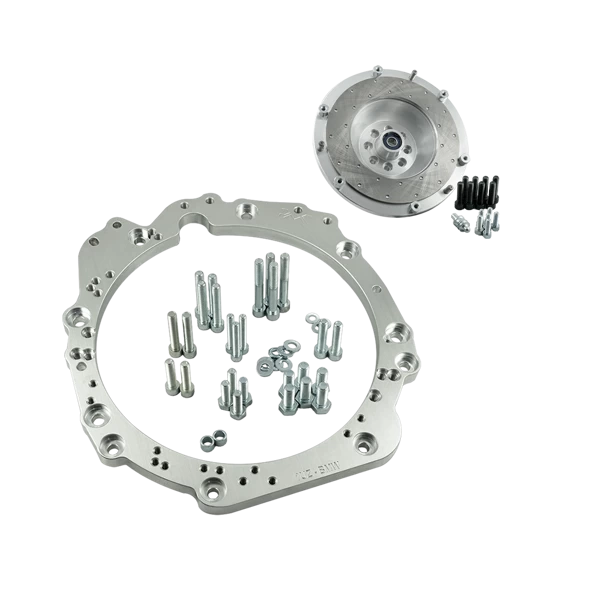

Aluminum gearbox adapter designed to simplify gearbox installation as much as possible without radical modifications like cutting off the bellhousing – only preparing a cutout for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction surface, tested and balanced before shipping. Flywheel designed for 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE).

PMC Motorsport gearbox adapters are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and transmission, which is crucial for the durability of the drivetrain.

Additional information

Installation instructions

To install the flywheel, it is necessary to use the flexplate / starter ring gear from automatic version Toyota OE 32101-50010 and a 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-50010 (not included). Mount the clutch release fork on the lower position of the release bearing (in case of a dual-position bearing). A Toyota UZ starter motor must be used for adapter installation.

Frequently Asked Questions

Which engines does this adapter fit?

For Toyota / Lexus V8 engines from the UZ family: 1UZ-FE and 3UZ-FE.

Which gearboxes does the adapter fit?

For 6-speed manual ZF GS6-53DZ gearbox from BMW with M57N / M57N2 diesel engine in HGD (THGD) and JGA (TJGA) versions – E60 525d / 530d – and HGA (THGA) – E46 330d, as well as ZF GS6X53DZ from xDrive versions: HGB (THGB), HGE (THGE), and JGB (TJGB).

Do I need to cut the gearbox bellhousing?

No. The adapter is designed to avoid cutting the bellhousing – only a cutout for the starter motor needs to be prepared.

What parts do I need to buy separately for installation?

Flexplate / starter ring gear from automatic version Toyota UZ 1UZ / 3UZ, OE 32101-50010, and one 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-50010. These are not included in the kit.

Which clutch pressure plate fits the PMC flywheel?

240 mm (9.45") BMW OE type pressure plate – from BMW M57 / M57N (including stock pressure plate from GS6-53DZ gearbox) / M57N2 / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. Clutches from ACT / Spec / Tanaci are also often used – custom pressure plates must fit the BMW OE flywheel (M57 / M57N / M57N2 / N54 / B58). Use a 240 mm clutch disc with splines matching your transmission, a dedicated release bearing kit, and a slave cylinder.

Which starter motor should be used?

A Toyota UZ starter motor must be used for adapter installation.

Does the adapter also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes (applies to adapters manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with the PMC Motorsport 8HP torque converter adapter.

Can I buy only the adapter or only the flywheel?

Yes. Every component of the kit is available separately.

Does the price include customs duty when shipping outside the European Union?

No. Product price and shipping estimate do not include customs duties or extra fees that may apply in the destination country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified in VIES) or ordering for export outside the EU.

Is the included manual enough for installation?

The manual describes joining the engine and gearbox outside the chassis. Depending on the car, extra modifications may be needed: mounts, bushings, firewall, transmission tunnel, driveshaft length. Professional installation recommended.

It is worth noting that a lightweight single-mass flywheel provides uncompromising throttle response at the expense of eliminating factory dampening elements. This results in a more direct drivetrain operation, which can naturally increase the noise generated by the gearbox mechanism. This is a desirable characteristic in sports vehicles resulting from the rigid engine-to-drivetrain connection.
