Adapter kit Mercedes-Benz M104 - manual 6-speed BMW M57n GS6-53DZ HGD JGA - 240mm / 9.45"

PMC Motorsport adapter plate / conversion kit / flywheel kit Mercedes-Benz M104 – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA E60 525d 530d – 240 mm / 9.45"

Adapter plate enabling the mating (swap / conversion) of the Mercedes-Benz M104 engine (2.8, 3.2, and AMG 3.4 / 3.6) with the ZF GS6-53DZ HGD / JGA 6-speed manual transmission used in BMW diesel models with M57N / M57N2 engine (E60 / E61 525d / 530d), as well as its GS6X53DZ HGE / JGB xDrive variant. Ideal solution for amateur and professional motorsport.

Planning a Mercedes-Benz M104 swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Swap your automatic transmission for a BMW manual gearbox and unlock new possibilities.

PMC Motorsport adapter plates are not only for automatic-to-manual conversions in cars with Mercedes-Benz M104 engines, but also support M104 engine swaps into BMW and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

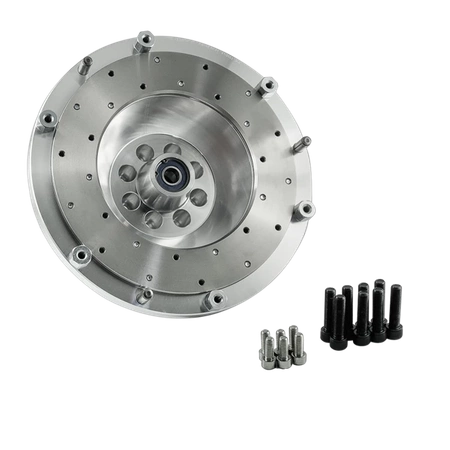

Aluminum gearbox adapter plate designed to simplify transmission installation as much as possible, avoiding radical modifications like cutting off the entire gearbox bellhousing – only preparing a hole for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction plate, tested and balanced before shipping. Flywheel designed for 240 mm pressure plates (GS5-39DZ / GS6-53DZ / BZ BMW OE). Adapter thickness: 30 mm (1.18").

PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal alignment (concentricity) of engine and transmission, which is critical for drivetrain longevity.

Additional Information

Installation Instructions

For flywheel installation, it is required to use the automatic flexplate / starter ring gear Mercedes-Benz M104, OE 111-030-07-12 (not included). Install the clutch release fork in the lower release bearing position (in case of a two-position bearing). For adapter installation, use an original Mercedes-Benz M104 starter motor (OE).

Frequently Asked Questions

Which engines is this adapter compatible with?

For 6-cylinder Mercedes-Benz M104 engines: 2.8 L M104.94x (e.g. W202 C280, W210 E280, W124 280 E / E 280, W140 S 280), 3.2 L M104.99x (e.g. W124 E 320, W210 E320, W140 S320, R129 SL 320, W463 G320, as well as SsangYong Musso, Korando, Rexton, and Chairman), AMG 3.4 L (e.g. W124 300E AMG 3.4), and AMG 3.6 L (M104.941 / M104.992).

Which gearboxes is the adapter compatible with?

For 6-speed manual ZF GS6-53DZ from BMW with M57N / M57N2 diesel engine in HGD (THGD) and JGA (TJGA) versions – E60 / E61 525d and 530d – and for ZF GS6X53DZ from xDrive versions: HGE (THGE) and JGB (TJGB).

Do I need to cut the gearbox bellhousing?

No. The adapter is designed to avoid cutting the bellhousing – you only need to prepare an opening for the starter motor.

What extra parts do I need to buy for installation?

Automatic Mercedes-Benz M104 flexplate / ring gear, OE 111-030-07-12. You also need: a 240 mm pressure plate and clutch disc, release bearing, clutch fork, and clutch slave cylinder specific to your gearbox, as well as an original Mercedes-Benz M104 starter motor (OE). These parts are not included in the kit.

Which clutch pressure plate fits the PMC flywheel?

A 240 mm (9.45") BMW OE style pressure plate – from BMW M57 / M57N / M57N2 (including stock GS6-53DZ pressure plate) / N54 / B58 / E46 M3 or Sachs Performance 883082.001243, as well as Sachs XTend 3000 951 952 (M57N / M57N2) and Sachs XTend 3000 951 949 (N54 / N55). ACT / Spec / Tanaci clutches are also commonly used – custom pressure plates must fit BMW OE flywheels (M57 / M57N / M57N2 / N54 / B58). A clutch disc with the appropriate spline for your gearbox, a dedicated release system, and a clutch slave cylinder must be used for your setup.

Which starter motor should be used?

An original Mercedes-Benz M104 starter motor (OE).

Does the adapter plate also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW gearboxes (applies to adapter plates manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with a PMC Motorsport 8HP torque converter adapter.

What does the kit include?

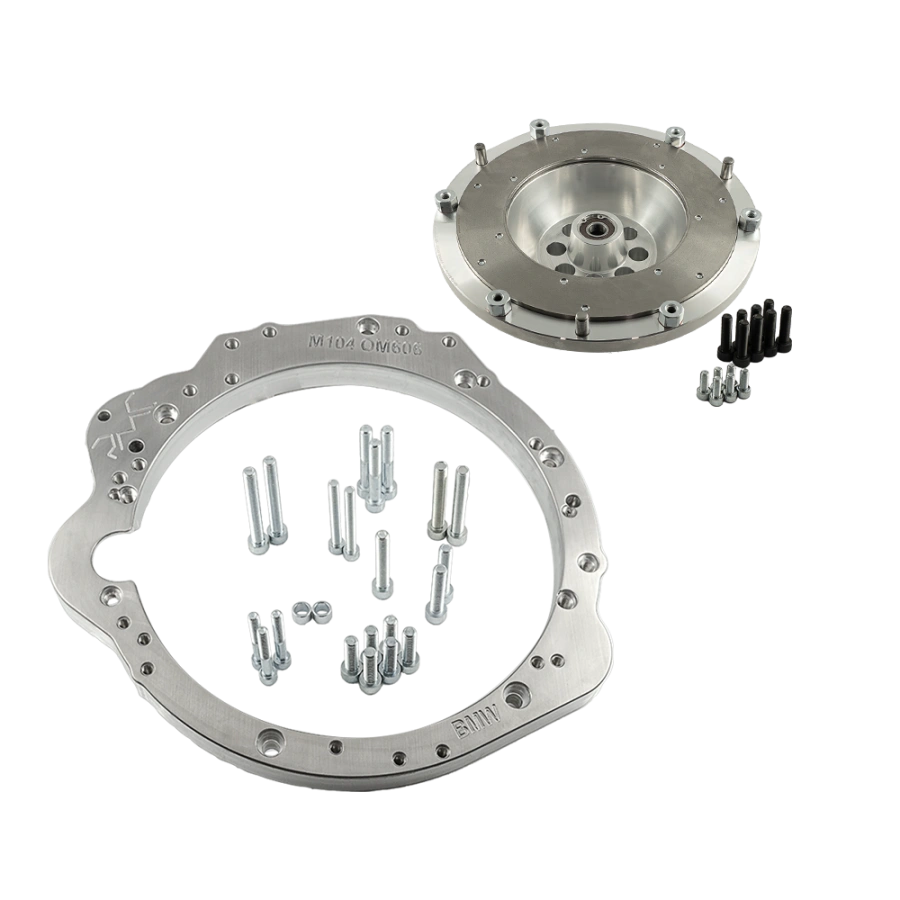

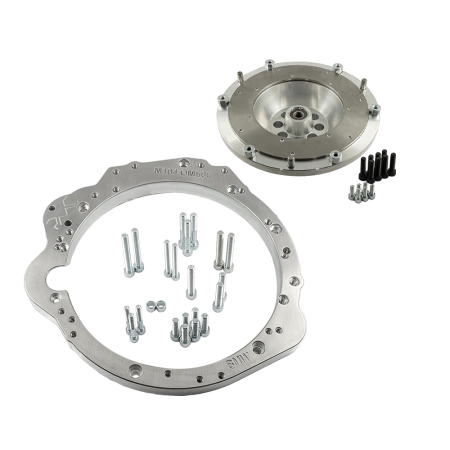

Aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport flywheel with replaceable friction surface, crankshaft bolts, and pressure plate bolts. Clutch, release bearing, clutch fork, and slave cylinder are not included in the kit – they must be selected to match your gearbox.

Can I buy just the adapter plate or just the flywheel?

Yes. Every item in the kit is available separately.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include customs duties or additional fees that may apply in the recipient's country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified in the VIES system) or ordering with shipment outside the EU.

Is the supplied manual sufficient for installation?

The manual covers mating the engine and transmission outside the vehicle body. Depending on the car model, additional modifications may be required: engine mounts, bushings, firewall clearance, transmission tunnel, driveshaft length. We recommend professional installation.

It is worth noting that a lightweight single-mass flywheel provides an uncompromising throttle response at the cost of eliminating factory damping components. This results in a more direct drivetrain operation, which may lead to a natural increase in gear noise from the transmission. This is a desired characteristic in sports vehicles resulting from the rigid connection between engine and drivetrain
