PMC Motorsport Race Stage 2 – clutch kit Honda K20 K24 – BMW M57N ZF GS6-53DZ HGD JGA HGA E60 530d / E46 330d 6-speed manual – 184 mm / 7.25" STEP – Tilton OT-II Cerametallic 66-302 HGG Twin disc

Complete Race Stage 2 clutch kit enabling the connection (swap / conversion) of the Honda K20 / K24 engine with the ZF GS6-53DZ HGD / JGA / HGA 6-speed manual gearbox used in BMW vehicles with the M57N / M57N2 diesel engine (E60 / E61 530d, E46 330d). The kit includes a gearbox adapter plate, PMC Motorsport Ultralight Race 184 mm (7.25") STEP type flywheel, and a Tilton competition twin-disc clutch – OT-II Cerametallic 7.25" 66-302 HGG pressure plate and two Tilton 64185-8-VV-55 sintered clutch discs. Designed for drifting and amateur as well as professional motorsport.

Planning a Honda K20 / K24 engine swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and unlock new performance capabilities.

PMC Motorsport adapter plates not only provide automatic-to-manual transmission conversions in vehicles powered by the Honda K20 / K24 engine, but also facilitate Honda K engine swaps into BMWs and other chassis, such as the Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

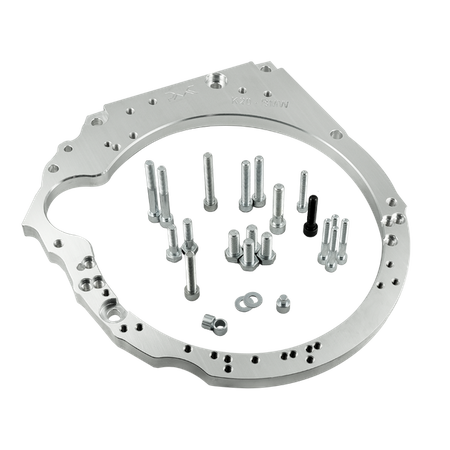

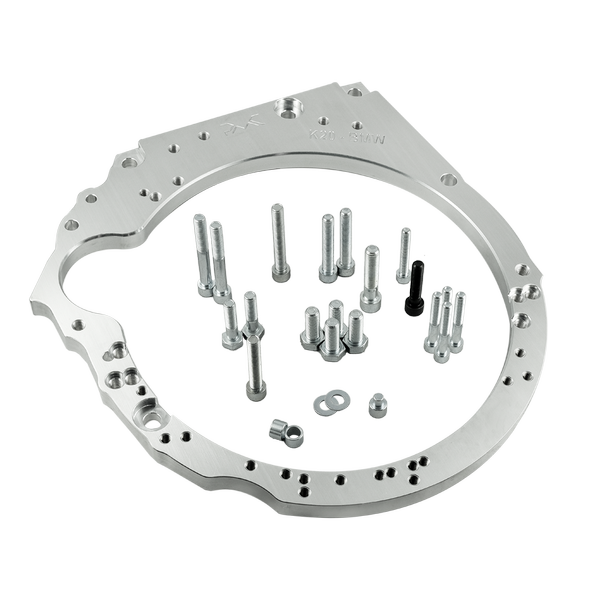

Aluminum gearbox adapter plate engineered to simplify gearbox installation as much as possible, avoiding radical modifications such as cutting the entire bellhousing – only preparing an opening for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction face, inspected and balanced before dispatch. Ultralight Race flywheel designed for 184 mm (7.25") STEP type clutches, and the kit includes a matched Tilton OT-II Cerametallic 7.25" 66-302 HGG pressure plate and two Tilton 64185-8-VV-55 sintered clutch discs with 32.5x35-26N spline for the GS6-53DZ gearbox. Adapter thickness: 20 mm (0.78"). The small clutch diameter and low mass of the assembly provide lightning-fast throttle response.

PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection with a coordinate measuring arm ensure a perfect fit. Production on state-of-the-art CNC machines guarantees ideal concentricity of the engine and gearbox, which is critical for drivetrain durability.

Additional information

Installation manual

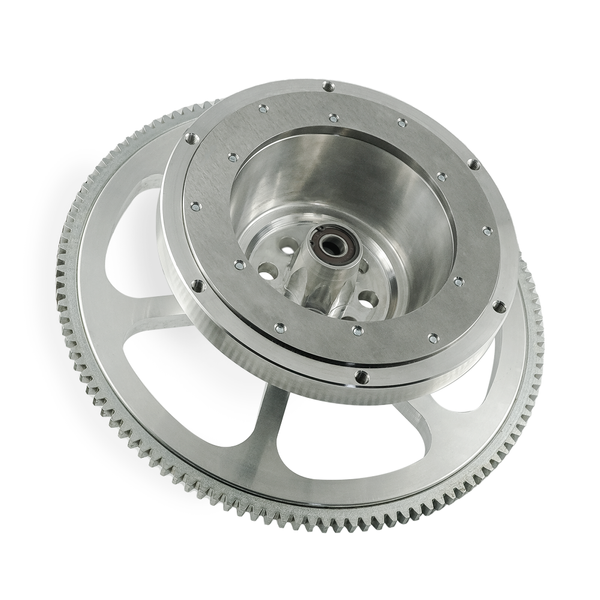

The gearbox adapter plate requires the use of a custom PMC Motorsport flywheel – in this kit, it is the Ultralight Race 184 mm (7.25") STEP type flywheel matched to the ZF GS6-53DZ gearbox. To install the flywheel, Honda OE 90011-RBD-000 crankshaft bolts are required (not included), which should be tightened to 118 Nm (87 lb⋅ft) using threadlocker. Mount the clutch fork on the lower release bearing position (in the case of a dual-position bearing), and shorten the gearbox guide tube – as shown in the graphics below. To mount the adapter plate, use the original Honda K20 / K24 starter motor (OE, not included).

Frequently Asked Questions

Which engines does this kit fit?

Honda K20 (K20A, K20A1, K20A2, K20A3, K20A4, K20A6, K20Z1, K20Z2, K20Z3, K20Z4) and K24 (K24A1, K24A2, K24A3, K24A4, K24A8, K24Z1, K24Z2, K24Z3, K24Z4, K24Z5, K24Z6, K24Z7) engines.

Which gearboxes does the kit fit?

The 6-speed manual ZF GS6-53DZ gearbox from BMW with the M57N / M57N2 diesel engine in HGD (THGD) and JGA (TJGA) variants – E60 / E61 530d – and HGA (THGA) – E46 330d.

Do I need to cut the gearbox bellhousing?

No. The adapter plate is designed to eliminate the need to cut the bellhousing – you only need to prepare a clearance notch/opening for the starter motor.

What parts do I need to purchase separately for installation?

Honda OE 90011-RBD-000 crankshaft bolts, release bearing, clutch fork, and clutch slave cylinder dedicated to your gearbox, and the original Honda K20 / K24 (OE) starter motor. These parts are not included in the kit.

Which clutch is included in the kit?

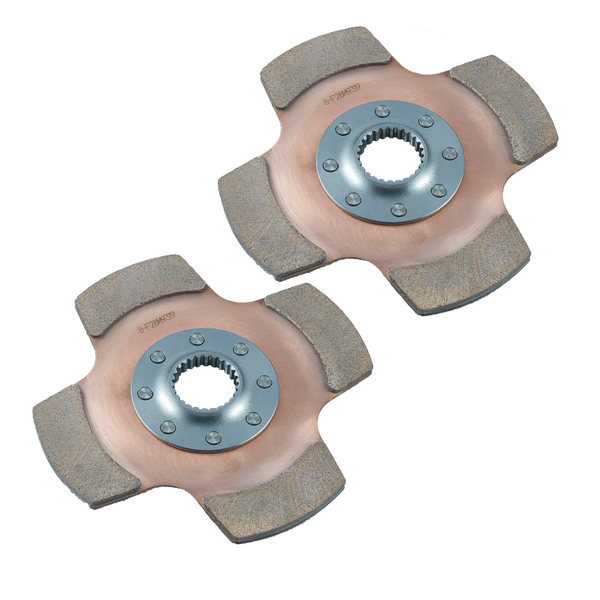

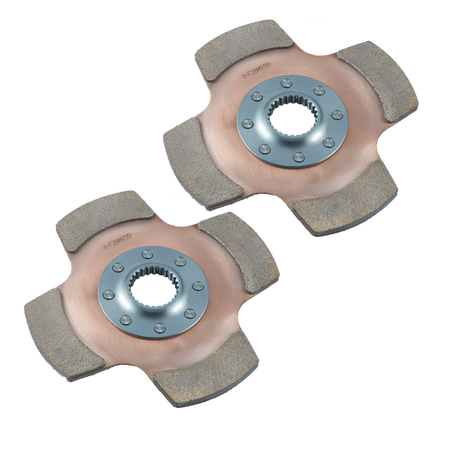

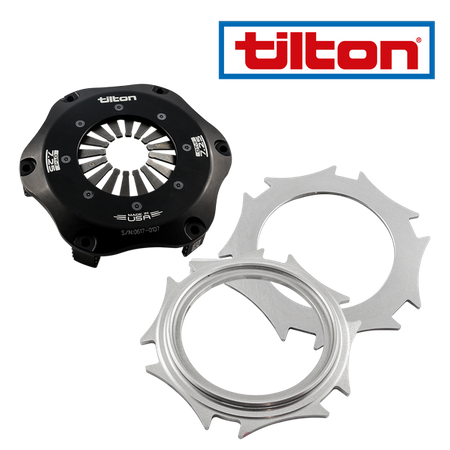

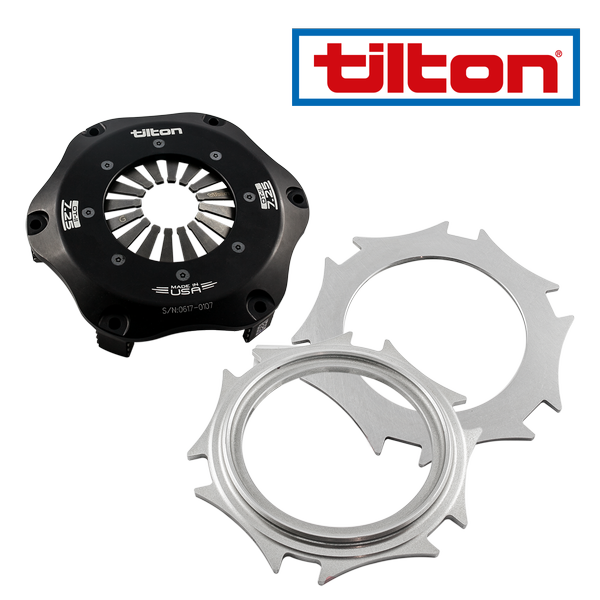

Tilton 184 mm (7.25") STEP type competition twin-disc clutch: Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302 HGG and a set of two Tilton 64185-8-VV-55 sintered clutch discs with 32.5x35-26N spline (26 splines) for the ZF GS6-53DZ gearbox.

Do I need to modify the gearbox?

Yes. When installing a 184 mm clutch, the gearbox guide tube must be shortened. The procedure is shown in the graphic in the "Installation manual" section.

Is the kit suitable for daily driving?

No. The Race Stage 2 kit with Tilton competition clutch is designed for motorsport and drifting. For a vehicle used as a daily driver, we recommend the adapter version with a flywheel for the BMW 240 mm pressure plate.

Which starter motor should be used?

The original Honda K20 / K24 (OE) starter motor. The starter motor is not included in the kit.

Does the adapter plate also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW transmissions (applies to adapters manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel is replaced with a PMC Motorsport 8HP torque converter adapter.

What does the kit include?

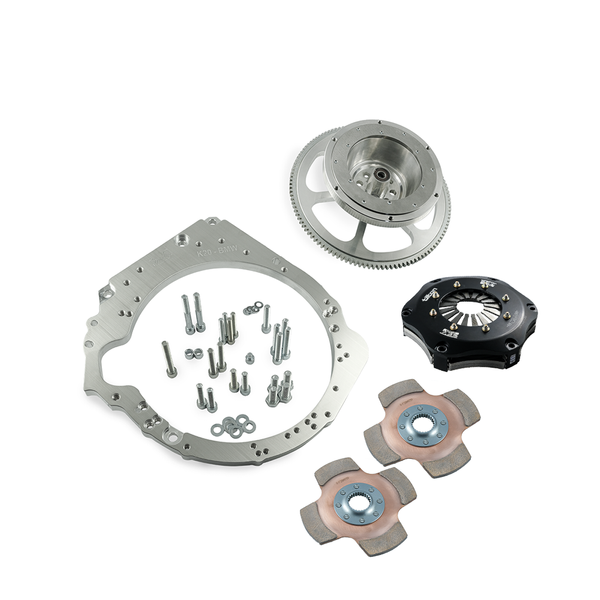

Aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport Ultralight Race 184 mm flywheel with replaceable friction surface, pressure plate mounting bolts, Tilton OT-II Cerametallic 7.25" 66-302 HGG pressure plate, and two Tilton 64185-8-VV-55 clutch discs.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component of the kit is available separately – including the adapter plate with Ultralight Race 184 mm STEP flywheel, without clutch.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include customs duties or additional import taxes that may be levied in the destination country.

Can I purchase with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT ID (verified in the VIES system) or if your order is shipped outside the EU.

Is the installation manual provided with the kit sufficient?

The manual describes mating the engine and gearbox outside the vehicle body. Depending on the car chassis, additional modifications may be required: mounts, bushings, firewall clearance, transmission tunnel shaping, driveshaft length adjustments. We recommend installation by professionals.

Please note that a lightweight single-mass flywheel provides uncompromising throttle response at the expense of eliminating factory damping elements. This results in more direct drivetrain operation, which may naturally increase gear rollover noise from transmission mechanisms. This is a normal, desired characteristic in motorsport vehicles resulting from the rigid mechanical connection between the engine and drivetrain.
